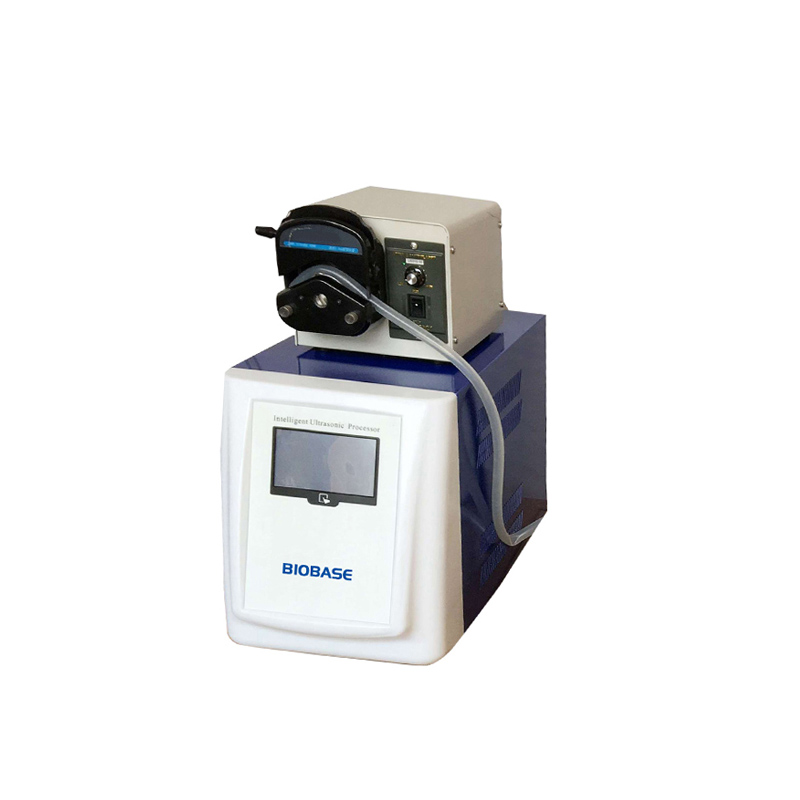

Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II

Features:

1. LCD Display.

2. Automatic tracking the frequency.

3. Storage capacity: 20 groups of program data.

4. It can test and control temperature of the sample.

5. Function of automatic feeding and computer control can be optional equipped.

Technical Parameters:

Model	UCD-4000W-II
Frequency	19.5~20.5KHz
Standard Amplitude-change Poleφ	40mm
Crushing Capacity/Once	500~10000ml
Crushing Capacity/Continuously	100L/Day
Ultrasonic Power(W)	1000~4000W, Adjustable
Time Set	Optional: Continuous/Pulse
Max. Working Time	99h59min59sec
Safety System	Over temperature; Time; Overload; No load

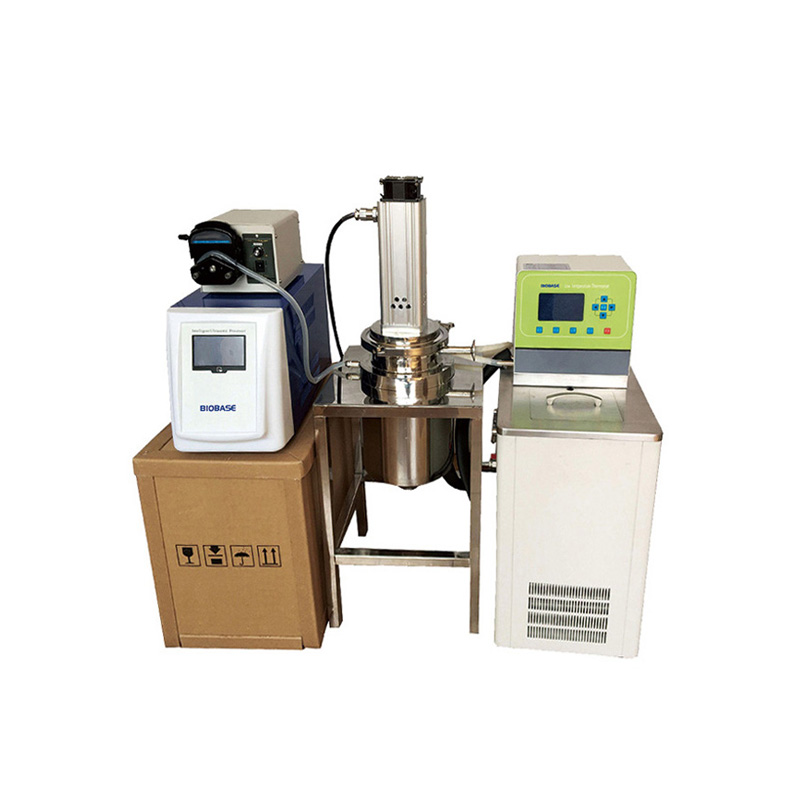

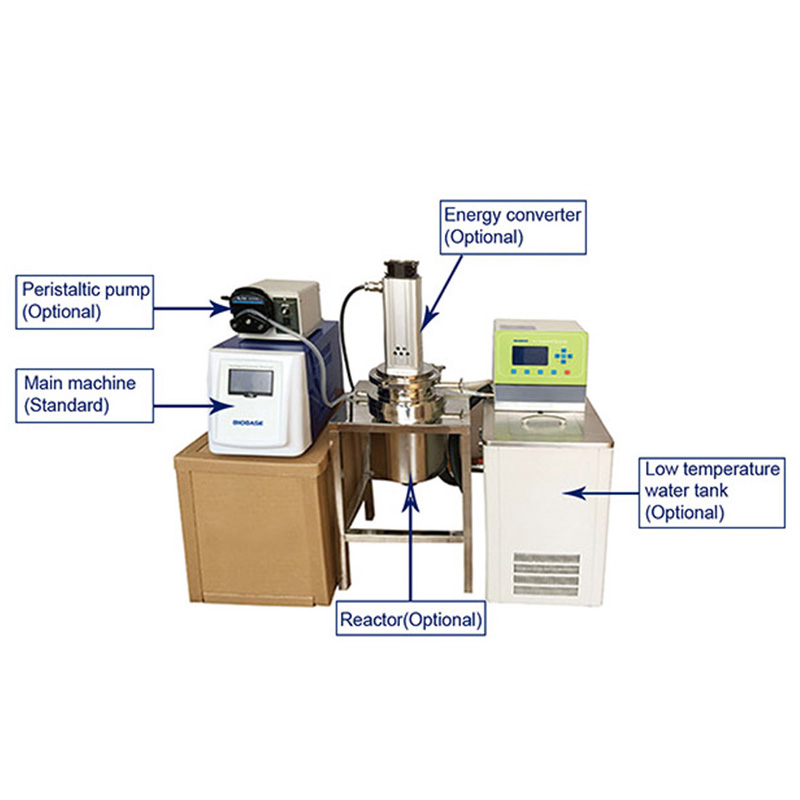

Standard Accessories	Main machine, energy converter, standard amplitude, sound proof box(or supporting frame)

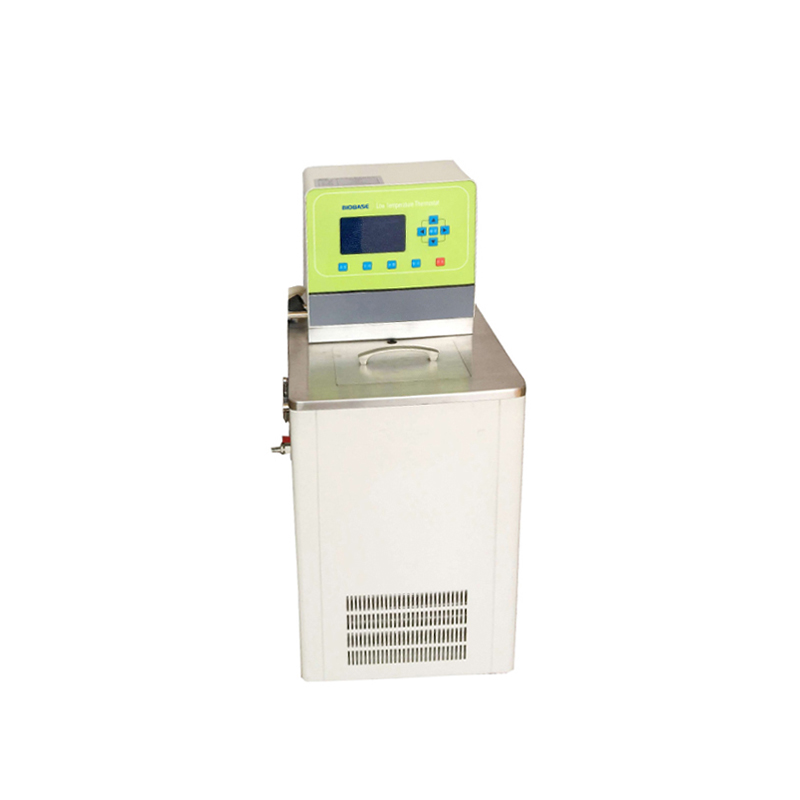

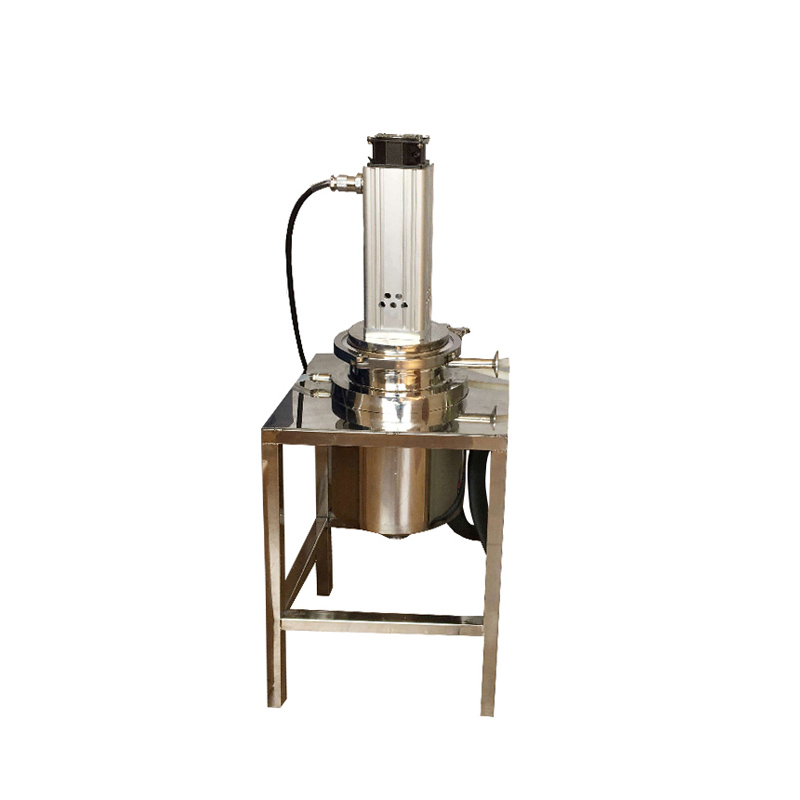

Optional Accessories	Stainless steel reactor, peristaltic pump, low temperature water tank
Power Supply	AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional)
Package Size(W*D*H)	675*305*450mm(Main body); 430*415*730mm(Soundproof box)
Gross Weight	32kg

Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II — professional solution in the Ultrasonic Cell Disruptor category

Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II fits easily into existing process lines and IT infrastructure.

Areas of application Ultrasonic Cell Disruptor

Ultrasonic Cell Disruptor solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Continuous Flow Ultrasonic Cell Disruptor UCD-4000W-II you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
