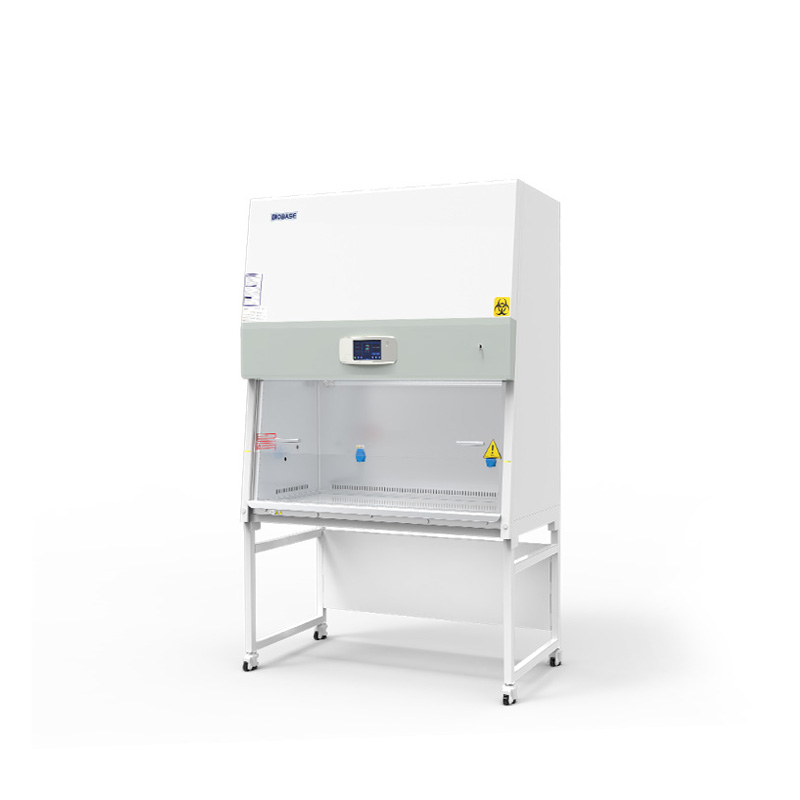

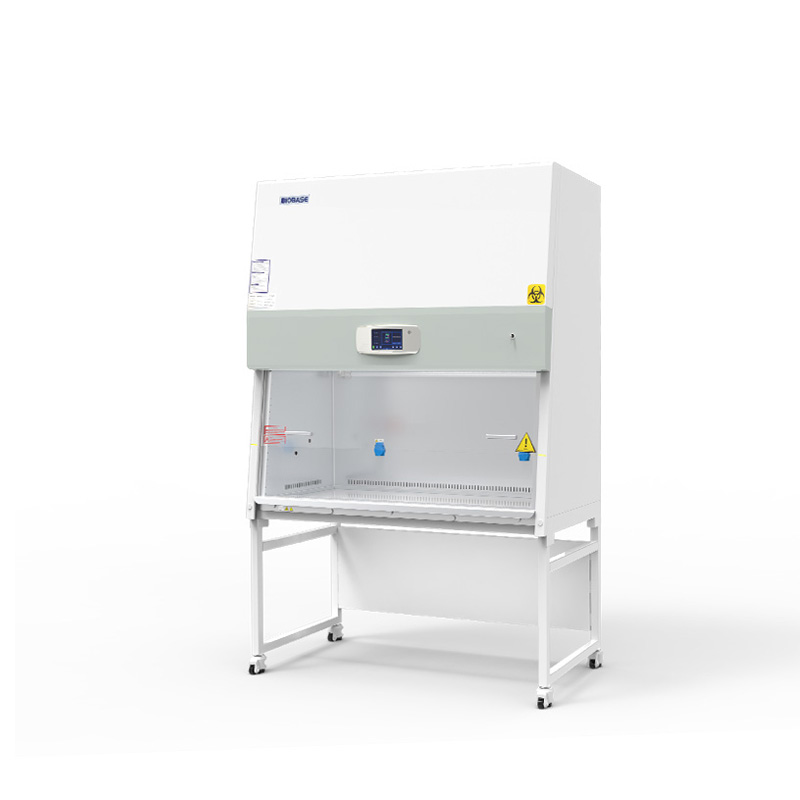

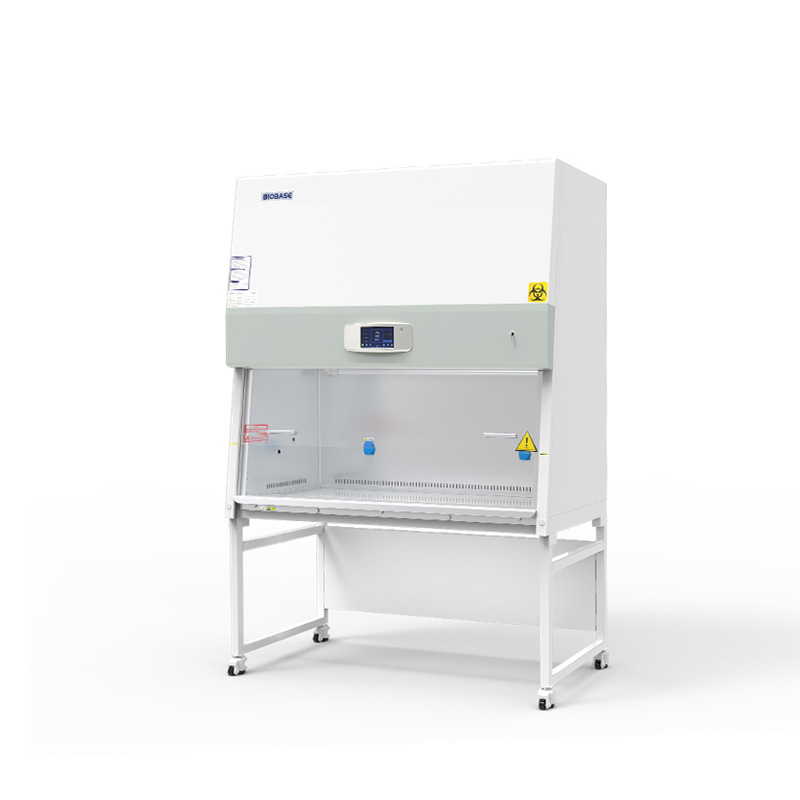

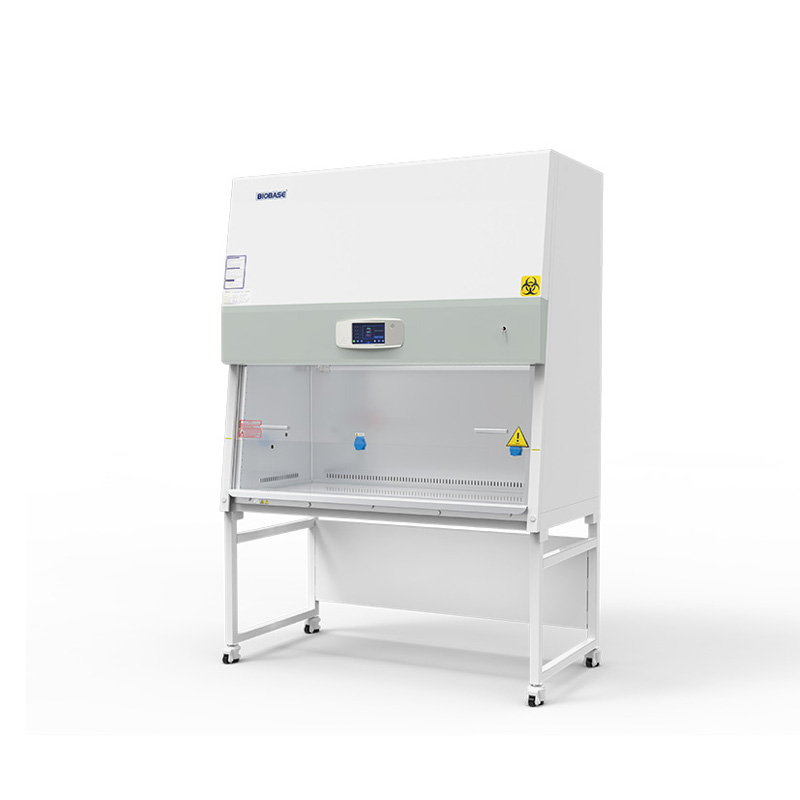

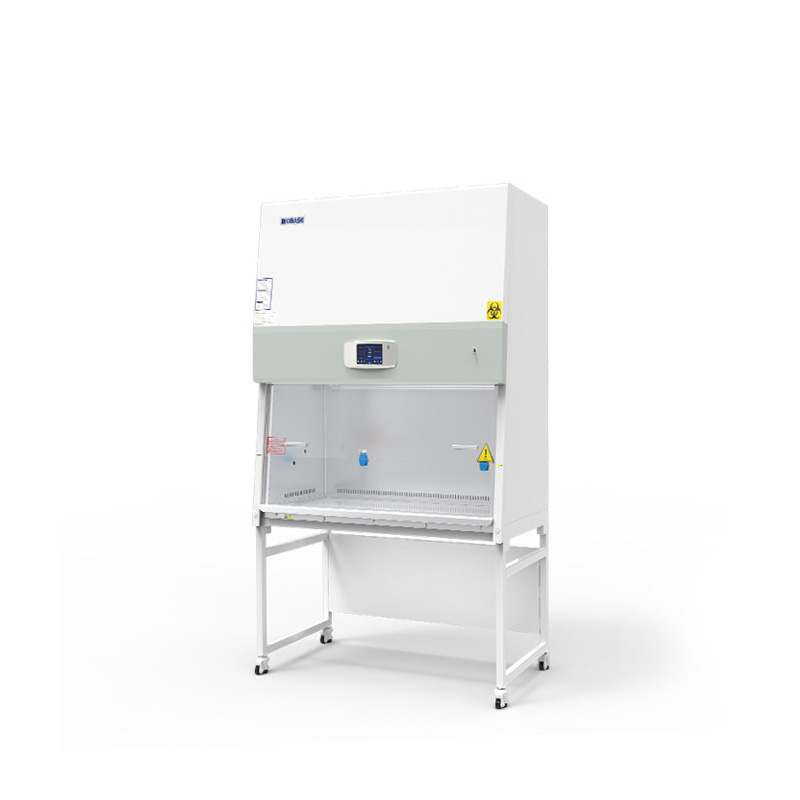

Class II A2 Biological Safety Cabinet

Features:

1. 7-inch touch color display screen: touch operation, real-time more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing.

2. The power-on password can be set to prevent unrelated personnel from mis-operation.

3. Automatically adjust the wind speed.

4. With power-failure memory function, the state before power-failure is restored after power-on, and there is a visual prompt alarms.

5. The integrated design of the operation area makes it easy to disassemble and clean.

6. The working area is equipped with a wind speed sensor to detect the wind speed in real and real time.

7. It can be used manually and electrically, and the front window can be closed by pulling down the glass door when the power is off.

8. The cabinet is separated from the base. The height of the adjustable base can be customized.

9. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window.

10. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.

11. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.

12. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product.

13. The front window glass has a one-key lift function



Technical Parameters:

Model	EA2-3F	EA2-4F	EA2-5F		EA2-6F	EA2-7F
External Size（W*D*H）	1100*800*2200mm	1300*800*2200mm	1500*800*2200mm		1800*800*2200mm	1950*800*2250mm
Internal Size（W*D*H）	940*600*660mm	1150*600*660mm	1350*600*660mm		1625*600*660mm	1800*600*660mm
Tested Opening	Safety height 200mm(8")
Max Opening	460mm
Inflow Velocity	0.53±0.025m/s
Downflow Velocity	0.33±0.025m/s
ULPA Filter	Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window	Manual and electric. Tempered glass≥5mm. Anti UV
Noise	≤65dB
UV Lamp	30W*1	30W*1	40W*1		40W*1	40W*1
	UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination
LED Lamp	12W*2	14W*2	16W*2		16W*2	12W*4
Illumination	≥1000Lux
Consumption	600W	800W	1300W		1300W	1700W
Waterproof Socket	Two, total load of two sockets: 500W
Display	LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70% air recirculation, 30% air exhaust
Visual and Audio Alarm	Filter replacement, window over height, abnormal air flow velocity, high filter pressure, abnormal power failure
Material	Work Zone: 304 stainless steel
	Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	770mm(can be customized)			800mm(can be customized)
Caster	Footmaster caster
Power Supply	AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory	LED lamp 2pcs, UV lamp 2pcs, Base stand, Foot switch, Drain valve, Waterproof sockets 2pcs, EC Fan, Remote control
Optional Accessory	Water and gas tap, Electric height adjustable base stand, Armrest
Gross Weight	284kg	316kg	355kg		420kg	455kg
Package Size（W*D*H）	1230*1060*1840mm	1430*1060*1840mm	1630*1060*1840mm		1930*1060*1840mm	2080*1060*1840mm



Class II A2 Biological Safety Cabinet — professional solution in the Biological Safety Cabinet category

Class II A2 Biological Safety Cabinet is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Class II A2 Biological Safety Cabinet

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Class II A2 Biological Safety Cabinet fits easily into existing process lines and IT infrastructure.

Areas of application Biological Safety Cabinet

Biological Safety Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Class II A2 Biological Safety Cabinet allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Class II A2 Biological Safety Cabinet you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
