C-MAG HS 7 digital

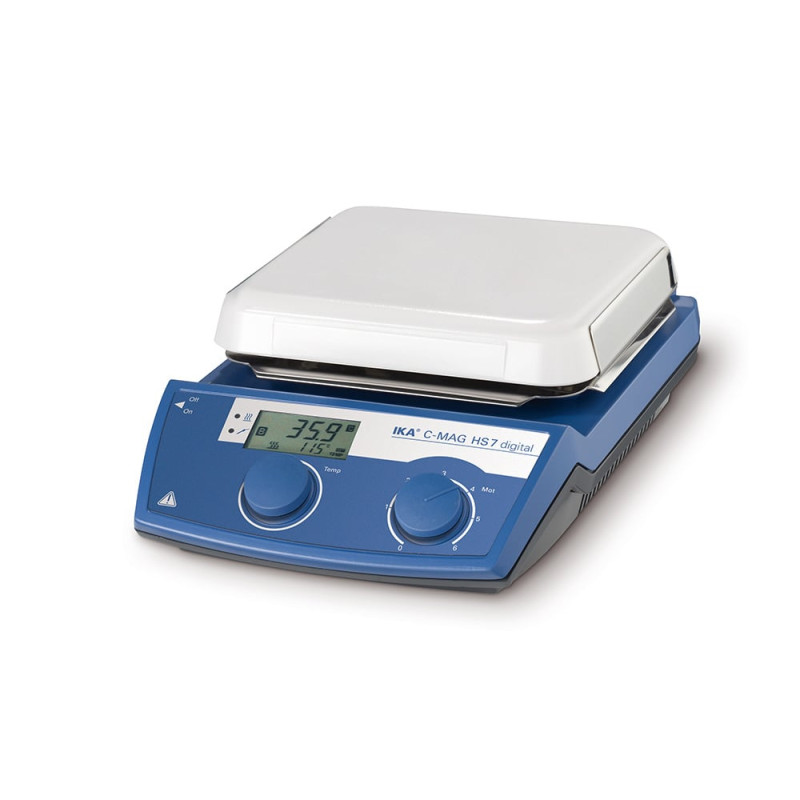

Magnetic stirrer C-MAG HS 7 digital

Magnetic stirrer with heating and ceramic heating plate, providing excellent chemical resistance.

- Powerful motor for mixing volumes up to 10 liters (H2O)

- Simultaneous digital display of target and actual temperatures on the LCD display

- Direct connection of a PT 1000 temperature sensor ensures precise temperature control (included)

- Ambient control accuracy +/- 0.5 K (in combination with PT 1000)

-Display of the actual temperature value in the environment with a resolution of 0.1 K when using a PT 1000 temperature sensor

- 3 operating modes to choose from (standard, safe, protection against customization)

- Fixed safety circuit 550 °C

- Hot surface indicator > hot surface warning to prevent burns!

-Digital error code display

Delivery set:

• C-MAG HS 7 digital
• PT 1000.60 Temperature sensor
• IKAFLON® 20*
• IKAFLON® 30*
• IKAFLON® 40*

Technical specifications:

Raised control panel to protect against liquid leakage Number of mixing positions: 1

Maximum amount of mixed liquid per mixing position (H2O) [l]: 10

Maximum load [kg]: 15

Motor power [W]: 1.5

Direction of rotation: left Speed adjustment: scale 0 - 6

Speed range [rpm]: 100 - 1500

Maximum mixer length [mm]: 80

Self-heating of the table plate at maximum stirring (speed: 22°C/duration: 1 h) [K]: +2

Thermal power [W]: 1000

Set temperature indicator: LCD display

Actual temperature indicator: LCD display

Heating temperature range [°C]: 50 - 500

Heating control: Rotary knob

Heating plate temperature setting resolution [K]: 5

Connection for external temperature sensor: PT1000

Fixed safety circuit [°C]: 550

Mounting plate material: ceramic

Mounting plate dimensions [mm]: 180 x 180

Heating rate (1 l H2O at H1500) [K/min]: 5

Dimensions (W x H x D) [mm]: 215 x 105 x 330

Weight [kg]: 5

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 21

Voltage [V]: 230 Frequency [Hz]: 50/60

Input power [W]: 1020

C-MAG HS 7 digital — professional solution in the Magnetic stirrers category

C-MAG HS 7 digital is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why C-MAG HS 7 digital

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: C-MAG HS 7 digital fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrers

Magnetic stirrers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing C-MAG HS 7 digital allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with C-MAG HS 7 digital you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
