C-MAG HS 4

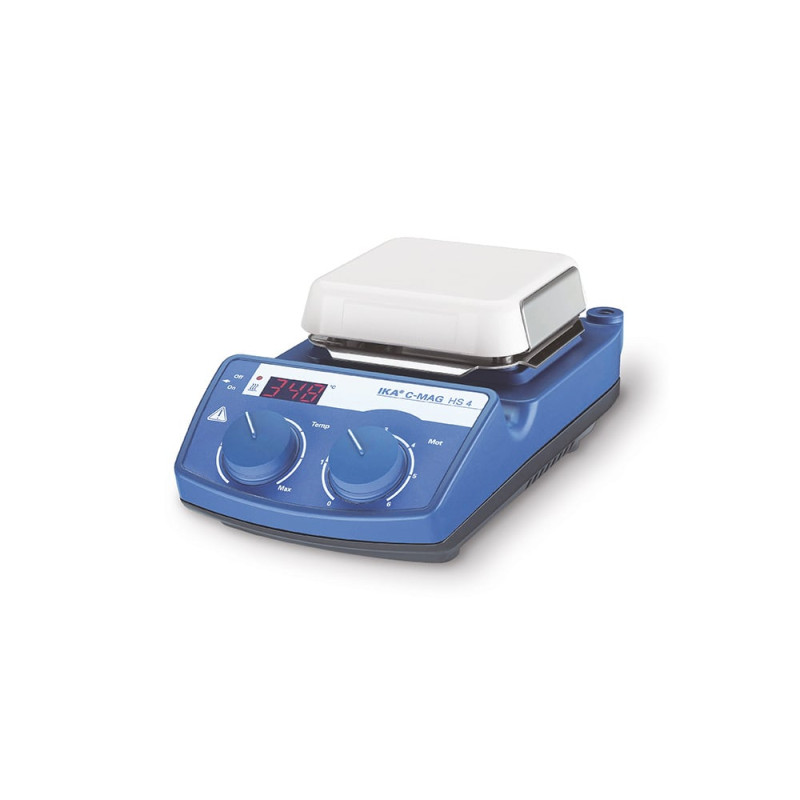

Magnetic stirrer C-MAG HS 4

Magnetic stirrer with heating and ceramic heating plate, providing excellent chemical resistance.

- Powerful motor for mixing volumes up to 5 liters (H2O)

- Fixed safety circuit 550 °C

- Hot surface indicator > hot surface warning to prevent burns!

- Precise temperature setting via digital display (LED)

- Digital error code display

- Raised control panel to protect against liquid leakage.

Delivery set:

• C-MAG HS 4
• IKAFLON® 20*
• IKAFLON® 30*
• IKAFLON® 40*

Technical specifications:

Number of positions for mixing: 1

Maximum mixing quantity per mixing position (H2O) [l]: 5

Maximum load [kg]: 7.5

Motor power [W]: 1.5

Direction of rotation: left

Speed adjustment: scale 0 - 6

Speed range [rpm]: 100 - 1500

Self-heating of the mounting plate max. stirring (room temperature: 22°C/duration: 1 h) [K]: +2

Thermal power [W]: 250

Setpoint temperature indicator: LED

Heating temperature range [°C]: 50 - 500

Heating control: rotary knob

Heating plate temperature setting resolution [K]: 5

Fixed safety circuit [°C]: 550

Tabletop material: ceramic

Tabletop dimensions [mm]: 100 x 100

Heating rate (1 l H2O at H1500) [K/min]: 2.5

Dimensions (W x H x D) [mm]: 150 x 105 x 260

Weight [kg]: 3

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 21

Voltage [V]: 230 Frequency [Hz]: 50/60

Input power [W]: 270

C-MAG HS 4 — professional solution in the Magnetic stirrers category

C-MAG HS 4 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why C-MAG HS 4

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: C-MAG HS 4 fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrers

Magnetic stirrers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing C-MAG HS 4 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with C-MAG HS 4 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
