C-MAG HS 10 digital

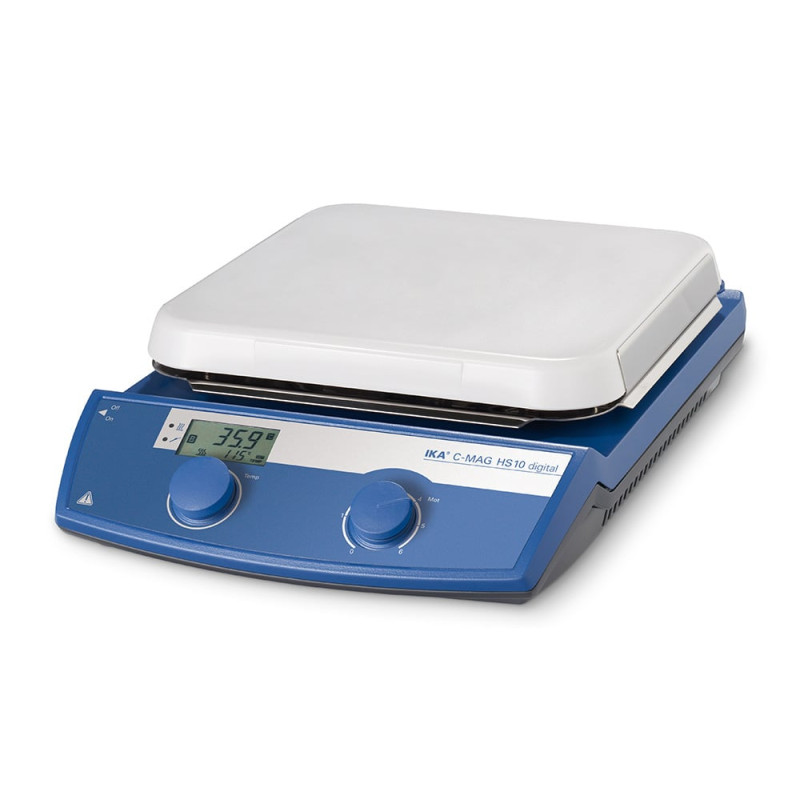

Magnetic stirrer C-MAG HS 10 digital

Magnetic stirrer with heating and ceramic heating plate, providing excellent chemical resistance.

• Powerful motor for stirring volumes up to 15 L (H2O)
• Simultaneous digital display of target and actual temperature on the LCD display
• Direct connection of PT 1000 temperature sensor for precise temperature control (included)
• Control accuracy in the environment +/- 0.5 K (in combination with PT 1000)
• Display of actual temperature value in the environment with a resolution of 0.1 K when using PT 1000 temperature sensor
• 3 operating modes to choose from (standard, safe, tamper-proof)
• Fixed safety circuit 550 °C
• Hot surface indicator > warning of hot surface to prevent burns!
• Digital error code display
• Raised control panel to protect against liquid leaks

Supply package:

• C-MAG HS 10 digital
• PT 1000.60 Temperature sensor
• IKAFLON® 20*
• IKAFLON® 30*
• IKAFLON® 40*

Technical specifications:

Number of stirring positions: 1

Maximum stirring quantity per stirring position (H2O) [L]: 15

Maximum load [kg]: 20

Motor power [W]: 1.5

Speed control: scale 0 - 6

Speed range [rpm]: 100 - 1500

Maximum stirrer length [mm]: 80

Self-heating of the hot plate at maximum stirring (revolutions: 22°C/duration: 1 hour) [K]: +2

Heating power [W]: 1500

Set temperature indicator: LCD display

Actual temperature indicator: LCD display

Heating temperature range [°C]: 50 - 500

Heating control: Rotary knob

Temperature setting resolution of heating plate [K]: 5

Connection for external temperature sensor: PT1000

Fixed safety circuit [°C]: 550

Mounting plate material: ceramic

Mounting plate dimensions [mm]: 260 x 260

Heating rate (1 L H2O at H1500) [K/min]: 5

Dimensions (W x H x D) [mm]: 300 x 105 x 415

Weight [kg]: 8.308

Permissible ambient temperature [°C]: 5 - 40

Permissible relative humidity [%]: 80

Protection class according to DIN EN 60529: IP 21

Voltage [V]: 230Frequency [Hz]: 50/60

Input power [W]: 1520

C-MAG HS 10 digital — professional solution in the Magnetic stirrers category

C-MAG HS 10 digital is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why C-MAG HS 10 digital

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: C-MAG HS 10 digital fits easily into existing process lines and IT infrastructure.

Areas of application Magnetic stirrers

Magnetic stirrers solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing C-MAG HS 10 digital allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with C-MAG HS 10 digital you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
