Technical Parameters:
Note: √Standard Outfit, ●Optional, \ Without this feature
Model | BMB-117M | BMB-300M |
Viewing Head | Compensation Free Binocular Head, Inclined at 30°,
Interpupilary Distance 48~75mm | √ | √ |
Camera
System | Valid Pixel | 1280*1024(1.3M Pixel) | √ | / |
1600*1200(2.0M Pixel) | ● | / |
2048*1036(3.0M Pixel) | ● | √ |
2052*1944(5.0M Pixel) | / | ● |
Output Mode | USB2.0 | √ | √ |
Operation System | WINDOWS7/8 2000/XP/VISTA | √ | √ |
Software | Scope image 9.0 | √ | √ |
Range of Viewing Field | >90%(BMB-117M); 18mm(BMB-300M) | √ | √ |
Eyepiece | WF10X/18 | √ | √ |
P16X/11 | ● | / |
Extra Wide Filed Eyepiece EW10X/20 with Diopter Adjustment | / | ● |
Objective | Achromatic Objective 4X, 10X, 40X, 100X | √ | / |
Infinite Plan Achromatic Objective 4X, 10X, 40X, 100X | / | √ |
Infinite Plan Achromatic Phase Objective 10X, 20X, 40X, 100X | / | ● |
Oil Darkfield Objective with Iris Diaphragm 100X(NA0.36~1.25) | / | ● |
Nosepiece | Backward Quadruple Nosepiece | √ | / |
Quintuple Nosepiece | / | / |
Quadruple Nosepiece | / | √ |
Stage | Double Layers Mechanical Stage 140*140mm, Moving Range 75*50mm | √ | √ |
Condenser | Abbe NA1.20 with Iris Diaphragm&Fliter | √ | / |
Swing Condenser N.A.0.9/0.25 | / | √ |
Turret Phase Contrast Condenser | / | ● |
Dark Field Condenser(Dry) | / | ● |
Dark Field Condenser(Oil) | / | ● |
Focusing | Coaxial Coarse&Fine Adjustment System, Range 24mm, Fine Division 0.004mm | √ | / |
Coaxial Coarse&Fine Adjustment System, Range 20mm | / | √ |
Illumination | LED 3W, Brightness Adjustable | √ | / |
Halogen Lamp 6V/20W, Brightness Adjustable | ● | / |
S-LED Powerful Illumination | / | √ |
Power Supply | AC110~220V, 50/60Hz | √ | √ |
Accessories | Phase Contrast Kit | ● | ● |
Dark-Field Attachment | ● | ● |
Polarization Attachment | ● | ● |
Package Size | 396*262*492mm(BMB-117M), 334*334*533mm(BMB-300M) | √ | √ |
Gross Weight | 7.5kg(BMB-117M), 12.5kg(BMB-300M) | √ | √ |

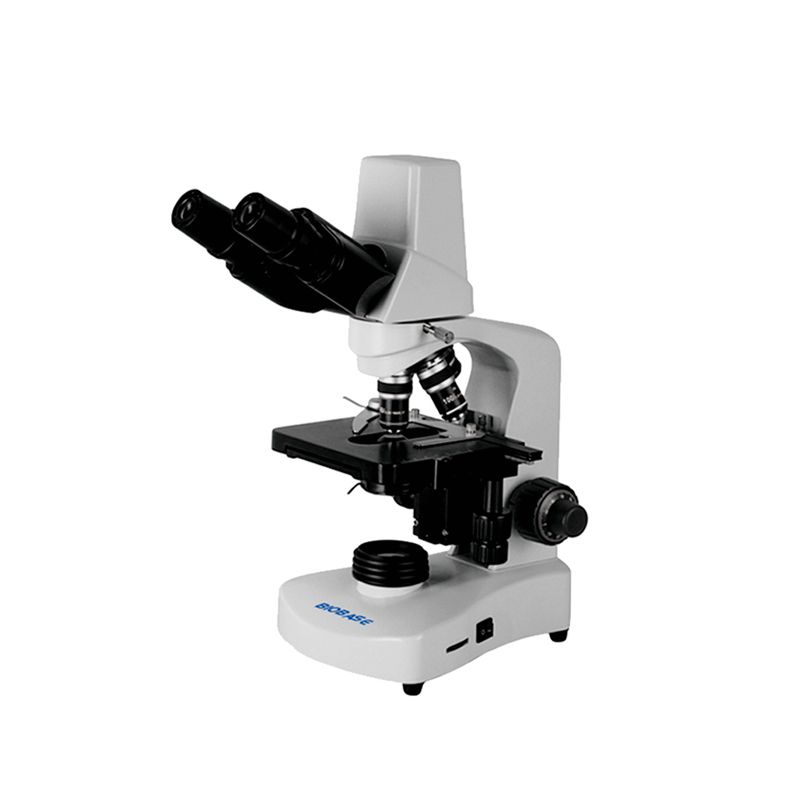

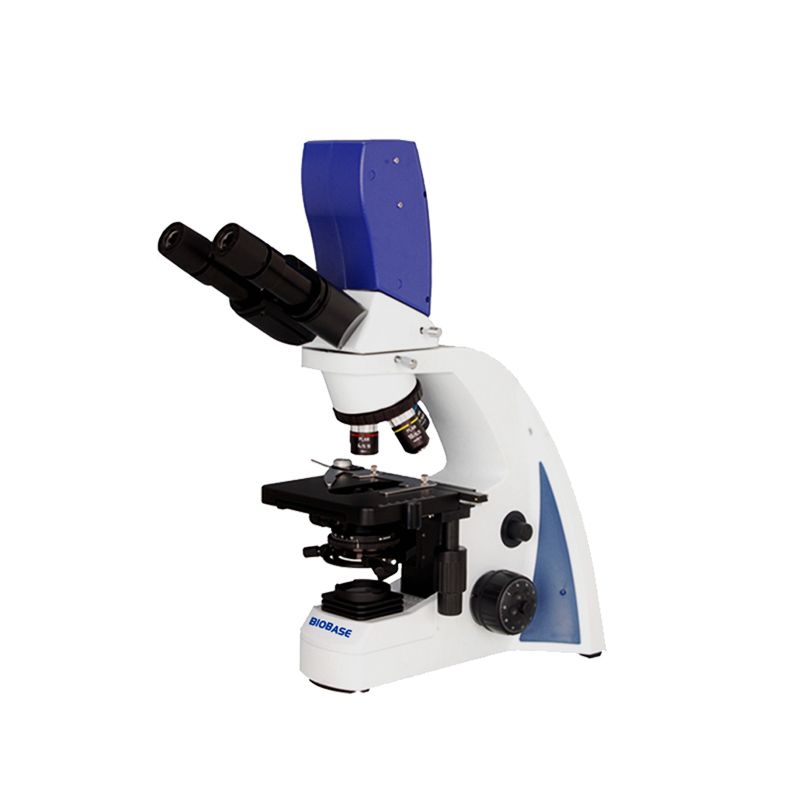

Build-in Camera Biological Microscope BMB-117M BMB-300M — professional solution in the Microscope category
Build-in Camera Biological Microscope BMB-117M BMB-300M is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Build-in Camera Biological Microscope BMB-117M BMB-300M
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Build-in Camera Biological Microscope BMB-117M BMB-300M fits easily into existing process lines and IT infrastructure.
Areas of application Microscope
Microscope solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Build-in Camera Biological Microscope BMB-117M BMB-300M allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Build-in Camera Biological Microscope BMB-117M BMB-300M you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Build-in Camera Biological Microscope BMB-117M BMB-300M to the cart or contact our manager. We will help integrate Microscope into existing processes without downtime and unnecessary costs.
