Application:
It is suitable for the detection of prothrombin time(PT), activated partial thromboplastin time(APTT), thrombin time(TT) and fibrinogen(FIB) in plasma..
Widely used in blood laboratory, biochemical laboratory, hospital blood laboratory and so on.
Features:
1. Dual-channel independent detection, can analyze different items at the same time
2. 5-inch high-definition touch screen, easy to operate
3. Open system, good compatibility, Supports reagents of various specifications
4. 20,000 results storage
5. Equipped with multiple pre-temperature positions to improve detection efficiency
6. Built-in thermal printer
7. The pipette automatically triggers the measurement, and the measurement time can be accurate to tenths of a second
8. Less reagent consumption
Technical Parameters:
Model | BK-CA02 | BK-CA04 |
Test Principle | Optical colorimetry |
Test Items | PT, APTT, TT, FIB |
Test Channel | 2(can test different projects at the same time) | 4(can test different projects at the same time) |
Wavelength | 470nm |
Detection Time | Normal sample detection time is 20 to 40 seconds, and can be set arbitrarily from 20 to 99 seconds |
Sample Incubation Position | 12 | 24 |
Reagent Incubation Position | 5 | 6 |
Detection Position Temperature | 37.0±1.0°C |
Incubation Position Temperature | 37.0±1.0°C |
Incubation Time | 1~999s |
Reaction Time | 1~99s |
Reagent Dosage | Minimum dosage 20μl |
Sample Volume | 20μl~40μl |
Display | 5-inch high-definition color touch screen |
Storage | 20,000 results storage, automatically save measurement data when power off |
Communication Interface | RS232 serial interface, support LIS system |
Printer | Built-in thermal printer |
Power Supply | AC100~240V, 50/60Hz |
Consumption | 70VA |
Ambient Temperature | 10℃~30℃ |
Relative Humidity | ≤80% |
Atmospheric Pressure | 86kPa~106kPa |
External Size(W* D*H) | 360*210*120mm | 390*250*135mm |
Net Weight | 3.5kg | 4.96kg |
Package Size(W* D*H) | 376*246*316mm | 445*305*265mm |
Gross Weight | 5kg | 7kg |

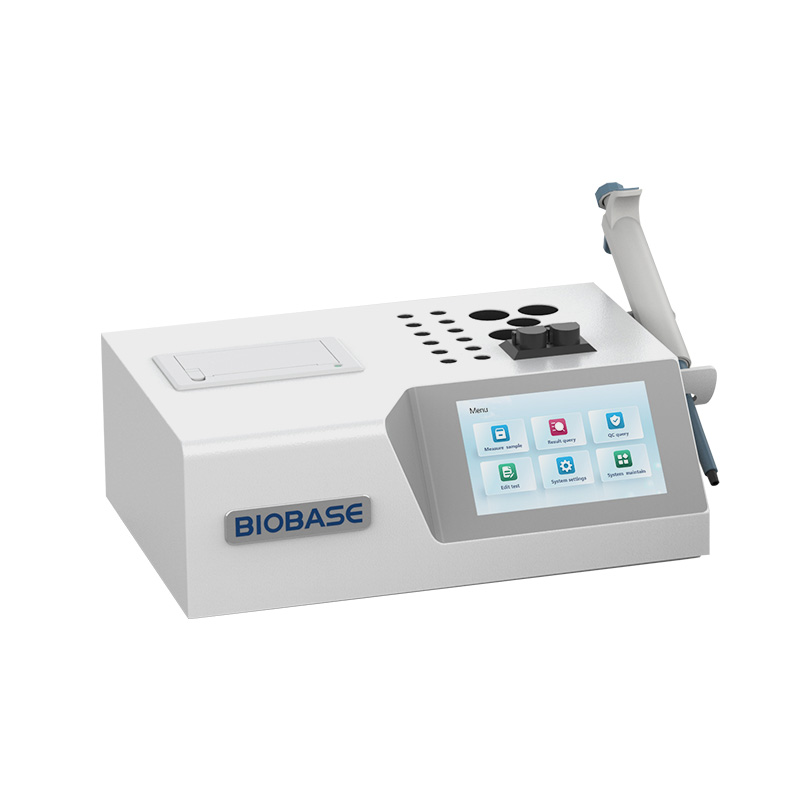

Blood Coagulation Analyzer BK-CA02 BK-CA04 — professional solution in the Coagulation Analyzer category
Blood Coagulation Analyzer BK-CA02 BK-CA04 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Blood Coagulation Analyzer BK-CA02 BK-CA04
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Blood Coagulation Analyzer BK-CA02 BK-CA04 fits easily into existing process lines and IT infrastructure.
Areas of application Coagulation Analyzer
Coagulation Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Blood Coagulation Analyzer BK-CA02 BK-CA04 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Blood Coagulation Analyzer BK-CA02 BK-CA04 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Blood Coagulation Analyzer BK-CA02 BK-CA04 to the cart or contact our manager. We will help integrate Coagulation Analyzer into existing processes without downtime and unnecessary costs.
