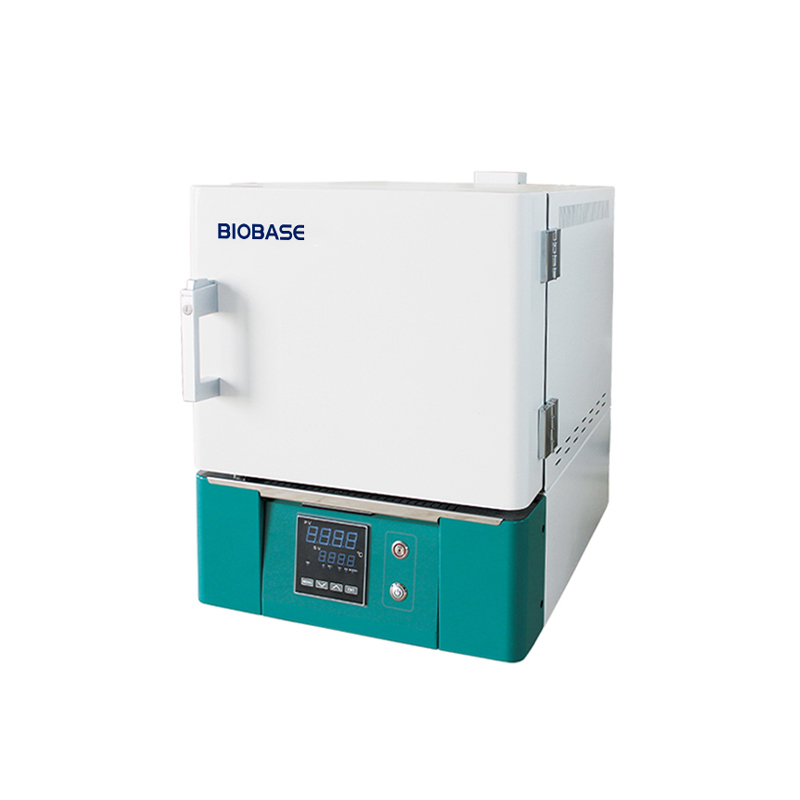

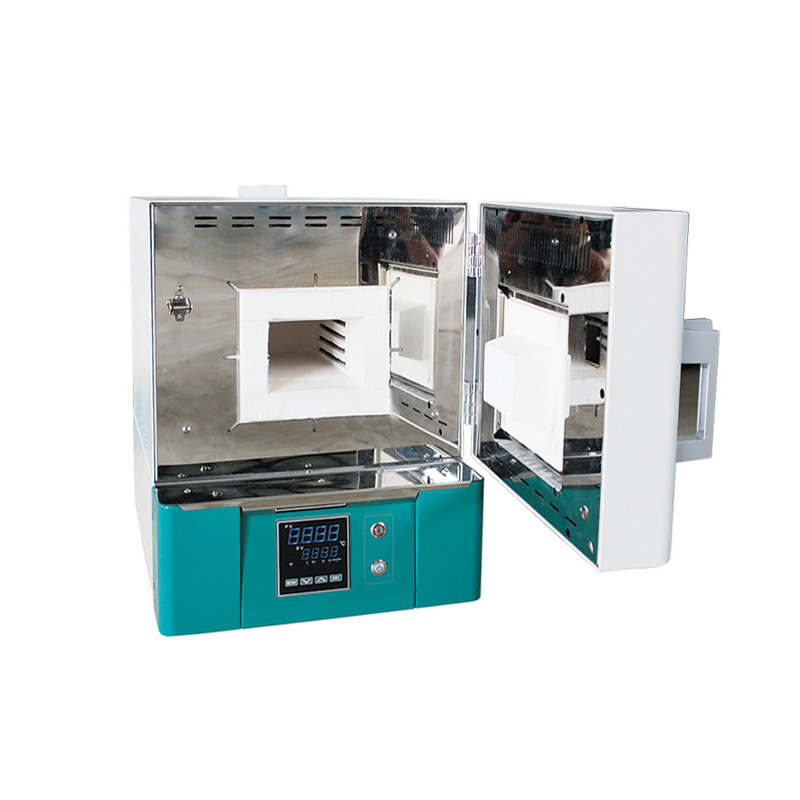

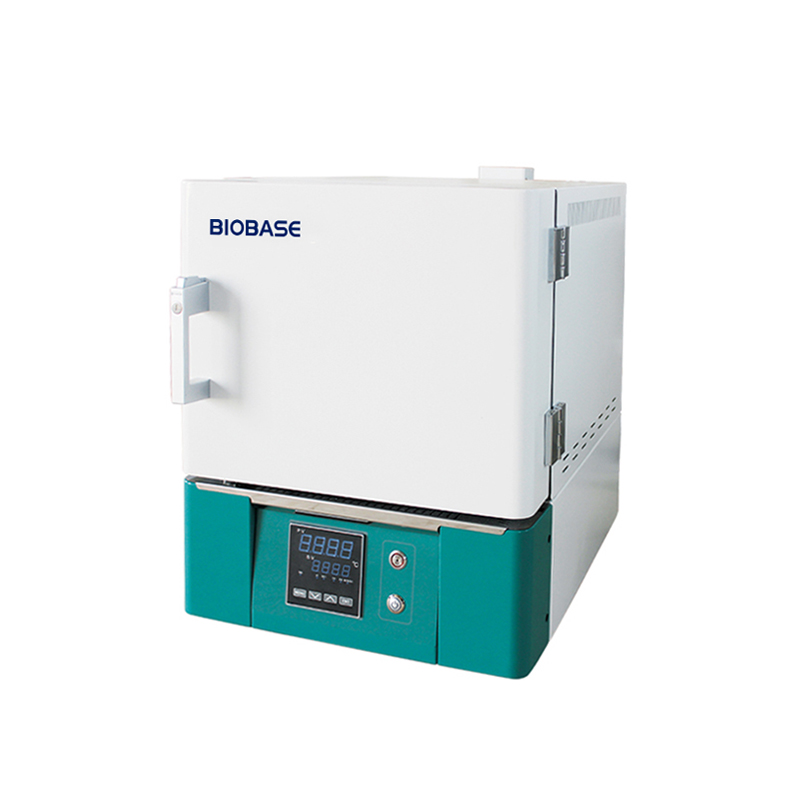

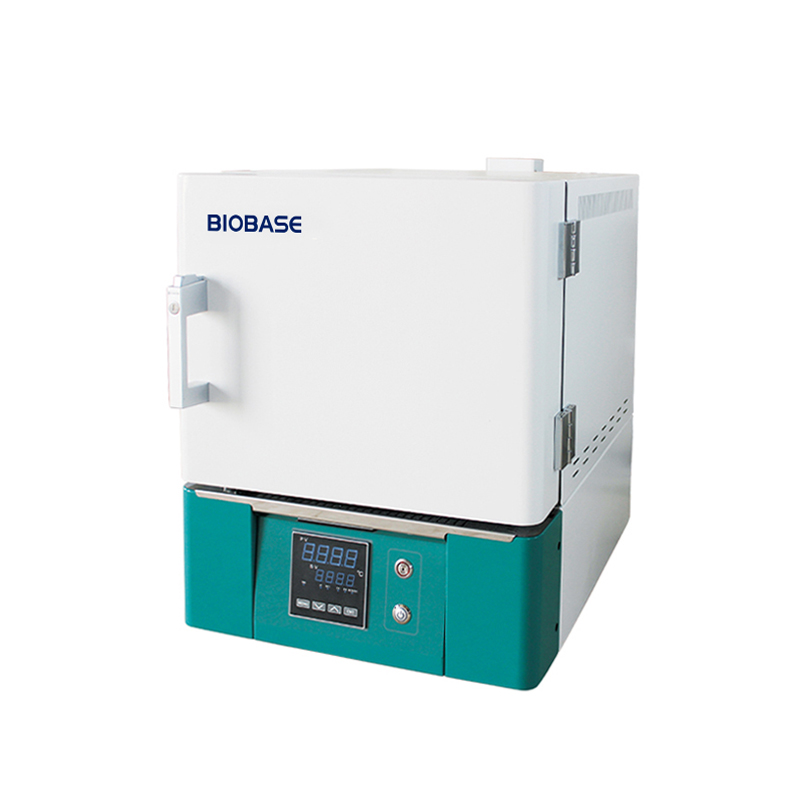

BIOBASE MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace

Features:

1. External material: cold-rolled steel with anti-bacterial powder coating and internal material: imported high density ceramic fiber. All stainless steel glory hole, make sure the color not change.

2. Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly. Heating rate is about 60℃/min.

3. Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.

4. PID micro digital screen controller, fixing temperature, over-temperature alarming and auto-stop.

5. Safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.

6. Double-shell hollow thermal insulation , the shell not hot and the furnace internal cool quickly.

Technical Parameters:

Model	MC2.5-12	MC5-12	MC10-12
Max Temp.	1200°C
Temp. Rising Time(Empty/min)	<30
Temp. Accuracy	±1°C
Capacity(L)	2	7	16
Consumption(KW)	1.5	3	6
Power Supply	110/220V±10%, 50/60Hz	220V±10%, 50/60Hz	220/380V±10%, 50/60Hz
Internal Size(W*D*H)mm	200*120*80	300*200*120	400*250*160
External Size(W*D*H)mm	450*685*600	530*785*640	600*895*700
Package Size(W*D*H)mm	580*775*730	660*875*770	730*985*830
Gross Weight(kg)	45	60	98





BIOBASE MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace — professional solution in the Muffle Furnace category

BIOBASE MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why BIOBASE MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: BIOBASE MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace fits easily into existing process lines and IT infrastructure.

Areas of application Muffle Furnace

Muffle Furnace solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing BIOBASE MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with BIOBASE MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
