Models:
Technical Parameters
Product Name | Fluorescence Quantitative PCR Detection System |
Model | FQD-96A |
Sample Capacity | 96x0.2ml PCR plate, 12x8-strip tubes, 96*0.2ml single tube(Transparent Bottom) |
Reaction system | 5~100μl |
Dynamics Range | 1-1010 |
Medical instrument registration certificate | G.X.Z. 20153400273 |
Channel | 4 |
Emission Wavelength | 500-800nm |
Detection path | F1 | F2 | F3 | F4 | F5 | F6 |
Suitable probe.dye | FAM,SYBR GREEN I
| HEX/VIC/TET/JOE/CY3/NED/TAMRA | ROX,TEXAS-RED | Cy5
| Cy5.5 | Reserved path |
Excitation wavelength | 300~800nm |
Detection wavelength | 500~800nm |
Module temp. range | 4-105℃(resolution:0.1℃) withSOAK Low Temp.storage Function |
RampRate | 4.0℃/s(max) |
Temp. Control accuracy | ±0.1℃ |
Temp. uniformity | ≤ ±0.3℃ |
Temp. control mode | Block mode andTube Mode (Automaticcontrolbasedonliquid level) |
Operation mode | Continuous operation |
Gradient Temp. Range | 1-36℃ |
Hot-lid Temp. Range | 30-110℃(Adjustable, Defaultby105℃ and Automatic Hot-lid) |
FluorescenceintenseDetection Repeatability | 5% |
Scanning Mode | Full plate scanning and designated line scanning |
Programming | Max 20 Segments for Each Program, Max 99 Cycles |
Operation Mode | Continuous |
Scanning time | 5.5s |
Special function | Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curveanalysis,6 independent temperature zones, HRMmulti-channel crosstalk calibration, background correction, auto gain, customized parameters,etc |
Operation system | Microsoft:Windows7/Windows8.1/ Windows10 Software:excel2000/2002/2003/2007/2012 |
Min computer configuration | RAM:512M,hardware space:10GB CPU:Pentium 4 virtual memory≥1000MB |
Power supply | 100-240V 50/60Hz 600W |
Dimension(L*W*H) | 410*386*352mm |
Port method | SupportUSBandRS232data port andBluetoothport |
Certification | Ferrotec Peltier/CE/EMC/RoHS2.0/PICC Product quality liability insurance/IVD/MET |
Packing size | 720*680*640mm |
Gross weight | 55kg |

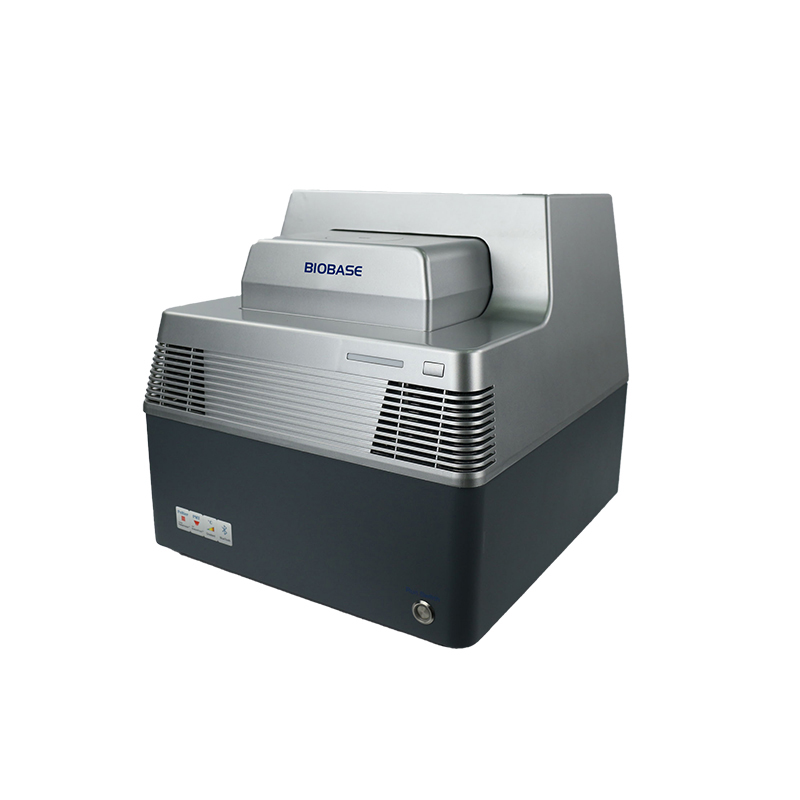

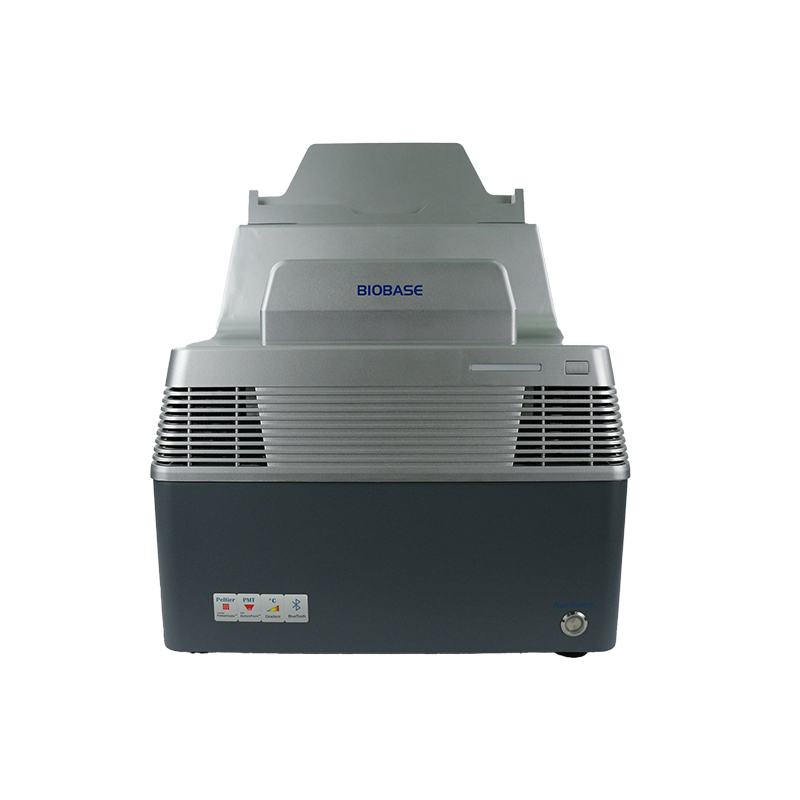

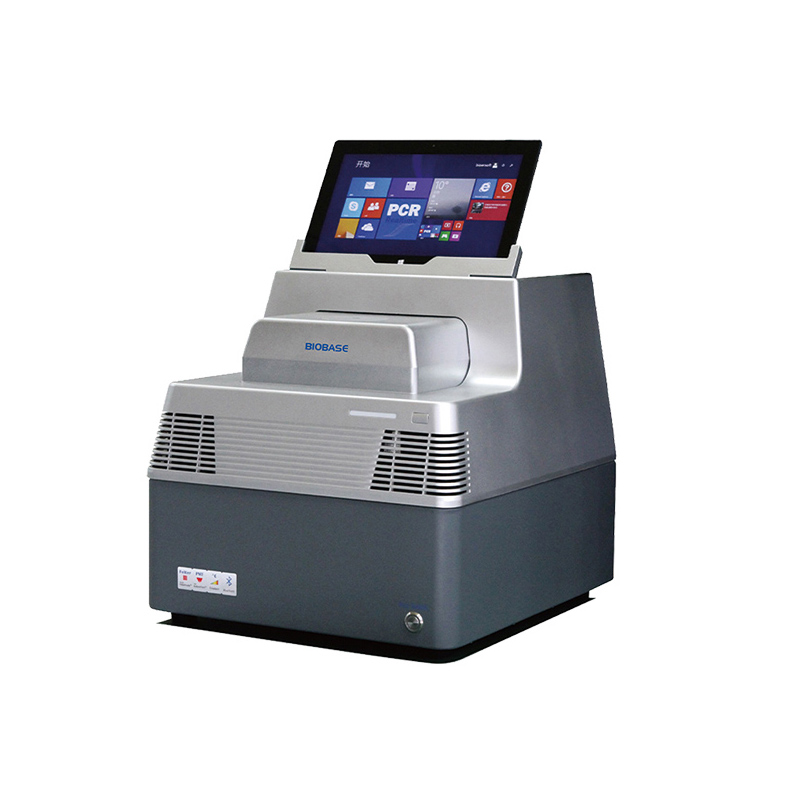

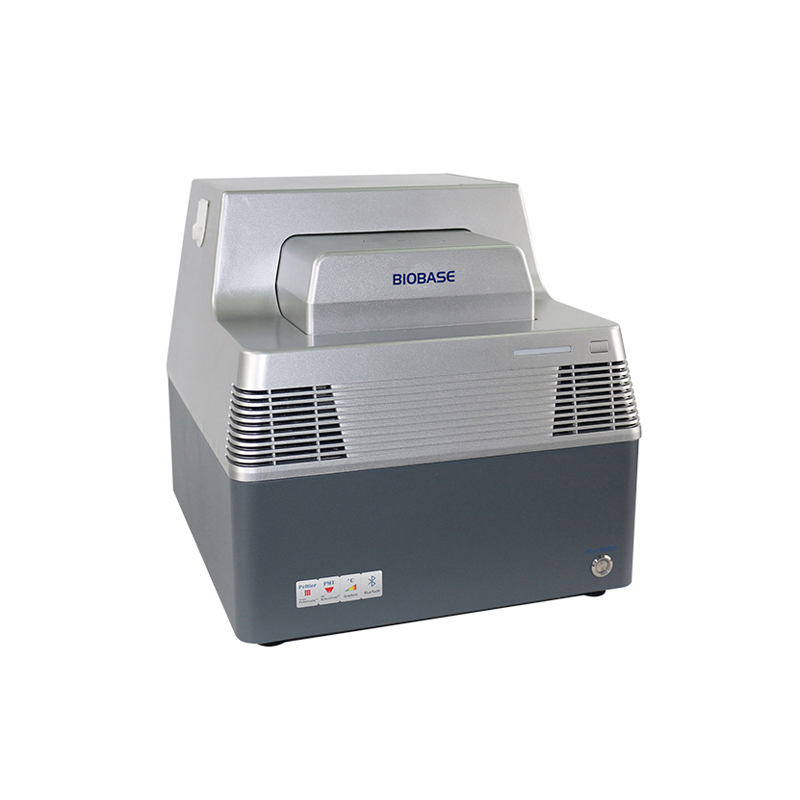

BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler — professional solution in the Thermal Cycler QPCR Detection System category
BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler fits easily into existing process lines and IT infrastructure.
Areas of application Thermal Cycler QPCR Detection System
Thermal Cycler QPCR Detection System solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add BIOBASE BK-96A Fluorescence Quantitive Pcr Detaction System Thermal Cycler to the cart or contact our manager. We will help integrate Thermal Cycler QPCR Detection System into existing processes without downtime and unnecessary costs.
