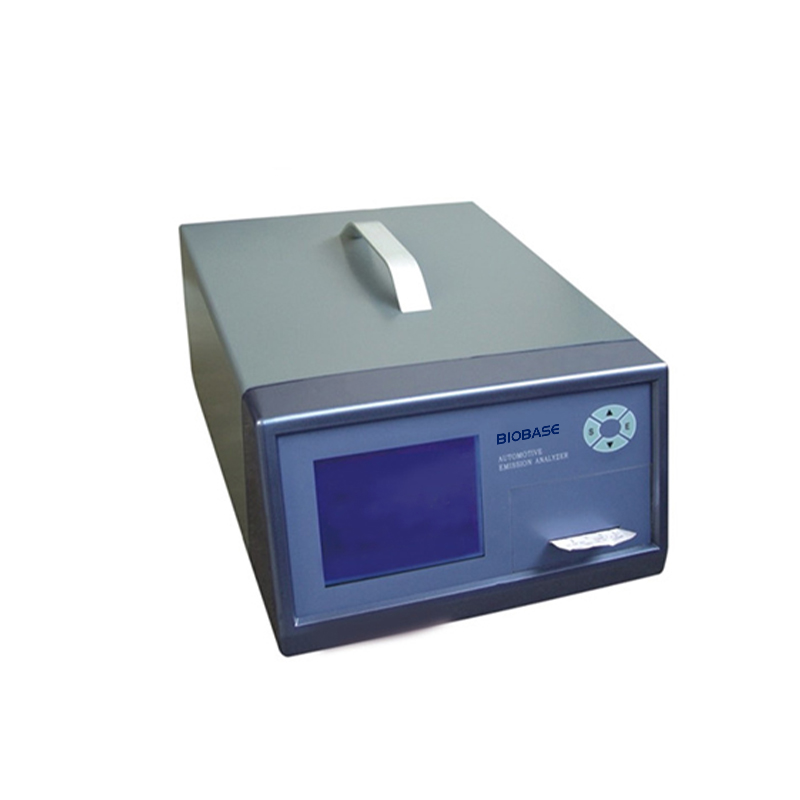

Automobile Exhaust Analyzer BK-EA500

Features:

1.Large -screen LCD display, Chinese (or English) menu;

2.Using German imported infrared detectors, O2 and NOX sensors, are not afraid of vibration, good stability, high accuracy;

3.lt is used to measure CO, HC,CO2,O2,NOX concentration and 入 value, COCOR, speed, oil temperature,flow,pressure

4.lt has a single idle speed, double idle, universal measurement function;

5.Vehicles that can be measured as fuel with gasoline, LPG,CNG, alcohol and diesel;

6.Meet the new national standard GB18285-2018 and the American BAR-97 standard, which meets ISO3930 or OIMLR99 l.

7.Have automatic zero, automatic cleaning, automatic temperature compensation, pressure compensation;

8.Have HC residual measurement, traffic monitoring,Qi road leak inspection;

9.There is a self -diagnosis function in the machine, there will be prompts when the fail

10.Optional speed, oil temperature measurement, built -in printer, or Bluetooth, RS232 interface;

11.Cable number input and 500 sets of data storage, prepare check function, clock display,

Technical Parameters:

Model	BK-EA500
Measurement range	HC:0~10000x10-6 (ppm) vol C0:0~10x10-2(%)vol  CO2:0 ~20x10-2(%)vol  O2:~25*10・2(%)vol  NOx:0~5000*10・6 (ppm) vol   λ:0.50~3.00  COcor:0~10x 10-2(%)vol
Speed speed	0-9990rpm
Oil temperature	0-150 °C
The value error	HC ± 12 x 10-6 (PPM) VOL (absolute error) or ± 5%(relative error) CO ± 0.06 x 10-2 (%) VOL (absolute error) or ± 5%(relative error) CO2 ± 0.5 x 10-2 (%) VOL (absolute error) or ± 5%(relative error) 02 ± 0.1 x 10-2 (%) VOL (absolute error) or ± 5%(relative error) Nox ± 25 x 10-6 (PPM) VOL (absolute error) or ± 4%(relative error)
Repeatability error	<±2%
Stability	Torque drift < ± 3%, zeroing
Resolution	HC:1x10-6 (ppm) vol CO: 0.01x10-2(%)voI  CO2: 0.1xiQ-2(%)vol  O2: 0.01x10-2(%)vol  NOx:1><10-6 (ppm) vol λ:0.01
The response time	95%response is not more than 10 seconds
Preheating time	8min (preheating 3min emergency test)
The output method	Can be displayed on the screen. The maximum value, average, minimum value and license plate number of the gas concentration can be printed. Date, speed, oil temperature and λ, COCOR value, can be connected to the computer network
Environmental conditions	Temperature -5 ~ 50 °C, relative humidity <90%
Power supply	AC100-240V 50/60Hz or DC 12V (select the power inverter). Consumption power 40VA
Dimensions	420mm (long) x 310mm (width) x 170mm (height)
Weight	About 9kg

Automobile Exhaust Analyzer BK-EA500 — professional solution in the Automobile Exhaust Analyzer category

Automobile Exhaust Analyzer BK-EA500 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Automobile Exhaust Analyzer BK-EA500

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Automobile Exhaust Analyzer BK-EA500 fits easily into existing process lines and IT infrastructure.

Areas of application Automobile Exhaust Analyzer

Automobile Exhaust Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automobile Exhaust Analyzer BK-EA500 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Automobile Exhaust Analyzer BK-EA500 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
