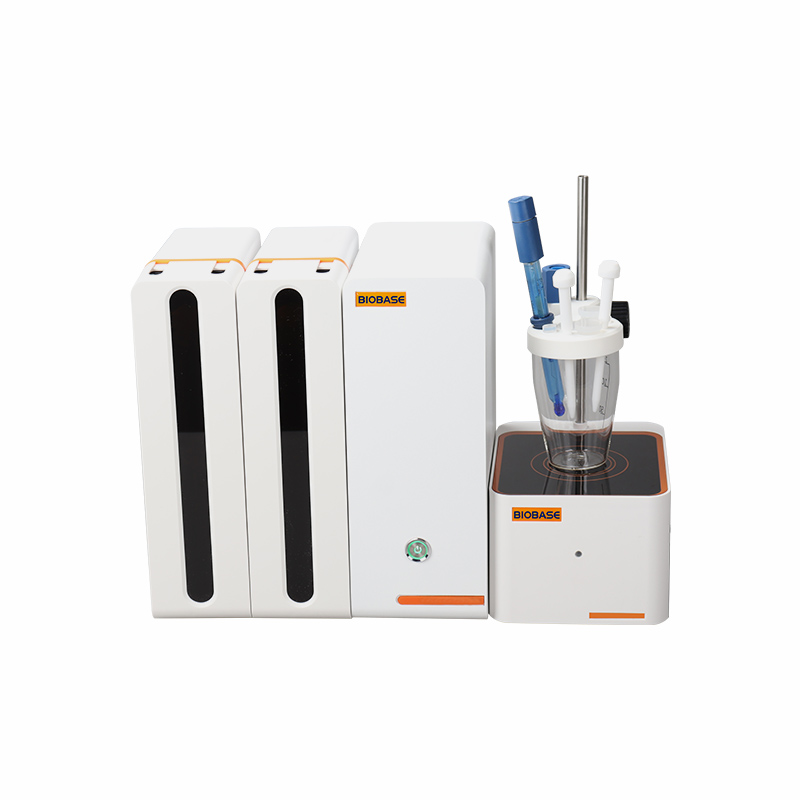

Automatic Titrator BK-PT960

BK-PT960 series can be used in food, drug testing, disease control, commodity inspection, water treatment, petroleum, chemical, Marine, electric power, environmental protection, new energy, education, scientific research and other fields.

Feature:

1. Multi-Channel modular combination, combine up to 4 dosing units & 4 channels work at same time.

2. 4 standard burettes (1ml/5ml/25ml, and standard as 10mL) available for options according to different application

3. Unique built-in dosing unit to avoid the harmless chemical leak.

4. Multiple self-checking function to avoid mis-operating.

5. Flexible application edit functions, users can storage your own titration mode according to your testing and use the storage mode next time with one click.

6. RS232/USB port with networked CAN bus communication functions

7. Can work with external 12/16/18-samples auto-sampler, making the multitasking operation much easier.



Mixed synchronous inlet system

The world's leading Mixed synchronous inlet system with 4-channels sample inlet simultaneously, supports expand up to 4 channels.

Totally automatic in add titrant, any combination of additives or auxiliary agents.



Built-in burette

The most secure built-in burette, burette built in the instrument and can be observed though the window during the test to avoid the harmless chemical leak. Burette volume is optional:1ml/5ml/15ml/25ml



Cloud Service

With ethernet interface, it can storage the database to the cloud server.Lead the laboratory instruments to Cloud generation.



Titration platform diversification

Flexible to work with independence titration stand or 12/16/18 auto-sampler, multi-tasking operating through 12/16/18 auto-

sampler can be fully automated, the whole process without staff to monitor, improve the work much more efficiency.

Parameter:

Model	BK-PT960 BASIC	BK-PT960 PRO
Titration Type	Potentiometric Titration	Potentiometric Titration, Dead-Stop Titration
MV Measuring Range	±2000MV
MV Measuring Resolution	Resolution 0.1MV Accuracy 0.1MV
PH Measuring Range	-20.000PH～+20.000PH
PH Measurement	Resolution 0.001PH Accuracy 0.003PH
Temperature Measuring Range	-5～120℃
Temperature Measuring Accuracy	±0.1℃
Interface	2xUSB, RS232, Ethernet
Max Titration Station	4
Max Liquid Filling Module	4
Burette	1ml,5ml, 10ml, 25ml
Burette Resolution	1/150,0000
Time of The Burette Charging	16 seconds (100% charging speed)
Auditing and Tracing	Yes
User ID Classify	3 Levels
PC Control	Yes
Electrode Connecter Type	mv/pH measurement electrode connector, Reference electrode connector, PT1000 temperature electrode connector	mv/Ph measurement electrode connector，Reference electrode connector, PT1000 temperature electrode connector, Polarized electrode connector
Sampler	1 position independent titration table in standard package, three kinds of auto sampler is optional: 16 position 100mL sampler; 12 position 250mL sampler; and 18 position 50mL sampler
Power Supply	100~240V 50/60Hz
Package Size(W*D*H)	415*345*370mm
Gross Weight	14kg
