Features
1. PLC touch screen controller, simple operation and friendly interface.
2. Automatic design, one-click completion of sample pressing, demolding and resetting.
3. Mature hydraulic system technology, compact structure and small footprint.
Technical Parameters
Model | BK-APM40 |
Control Method | Touch screen operation, PLC program control, sensor sensing pressure value |
Mold Type (Need to confirm to choose which one in advance) | 1. Steel ring mold The sizes can be selected as follows (outer diameter*inner diameter*height): 40*34*14mm, 47*34*10mm, 51.5*34*10mm 2. Boric acid mold Outer diameter 40mm, detection surface diameter 34mm 3. Plastic ring mold The sizes can be selected as follows (outer diameter*inner diameter*height): 40*34*4.5mm (commonly used), 38*32*5mm, 32*28*4mm 29.2*24*4mm, 25.2*20*4mm, 19.2*14*4mm 4. Aluminum cup mold (outer diameter*inner diameter*height): 39.5*38*8mm |
Max Pressure | 40T(400kN) |
Optional Max Pressure | 30T/60T/80T/100T/120T |
Holding Time | 0～999s adjustable |
Internal Spacing of Columns | 210mm |
Piston Stroke | 30mm |
Equipment Dimensions | 750*520*1150mm |
Equipment Weight | About 265kg |
Power Supply | AC 380V±5%, 50Hz, three-phase, external air switch, no plug |
Motor Power | 1.1KW |
Usage Environment | Recommended use status: ambient temperature 1～40℃ |
Packing Size | 880*880*1350mm |
Gross Weight | 325kg |

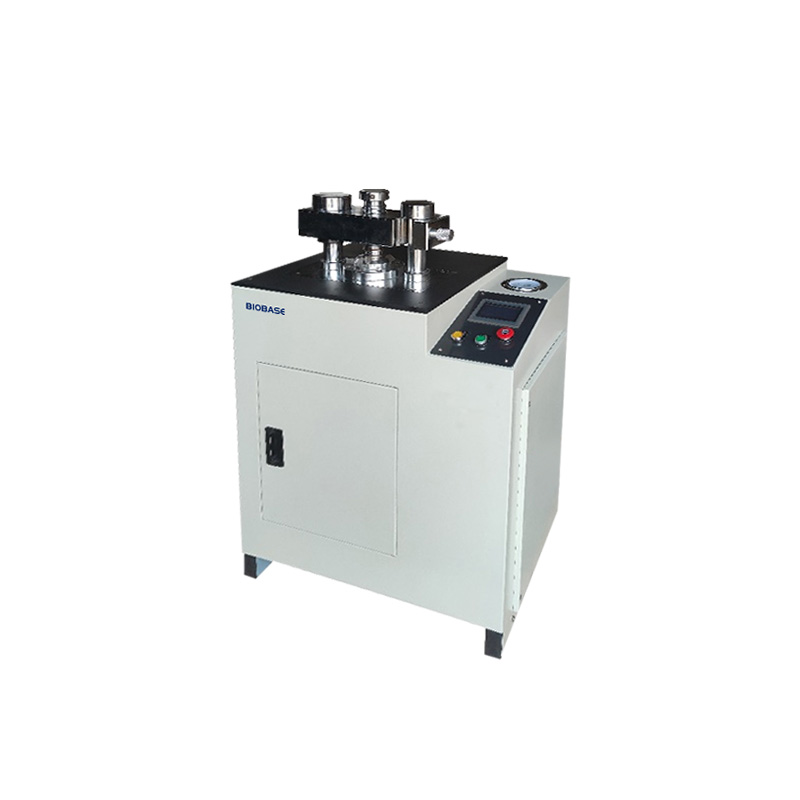

Automatic Pressing Machine BK-APM40 — professional solution in the New Products category
Automatic Pressing Machine BK-APM40 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Automatic Pressing Machine BK-APM40
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Automatic Pressing Machine BK-APM40 fits easily into existing process lines and IT infrastructure.
Areas of application New Products
New Products solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automatic Pressing Machine BK-APM40 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Automatic Pressing Machine BK-APM40 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Automatic Pressing Machine BK-APM40 to the cart or contact our manager. We will help integrate New Products into existing processes without downtime and unnecessary costs.
