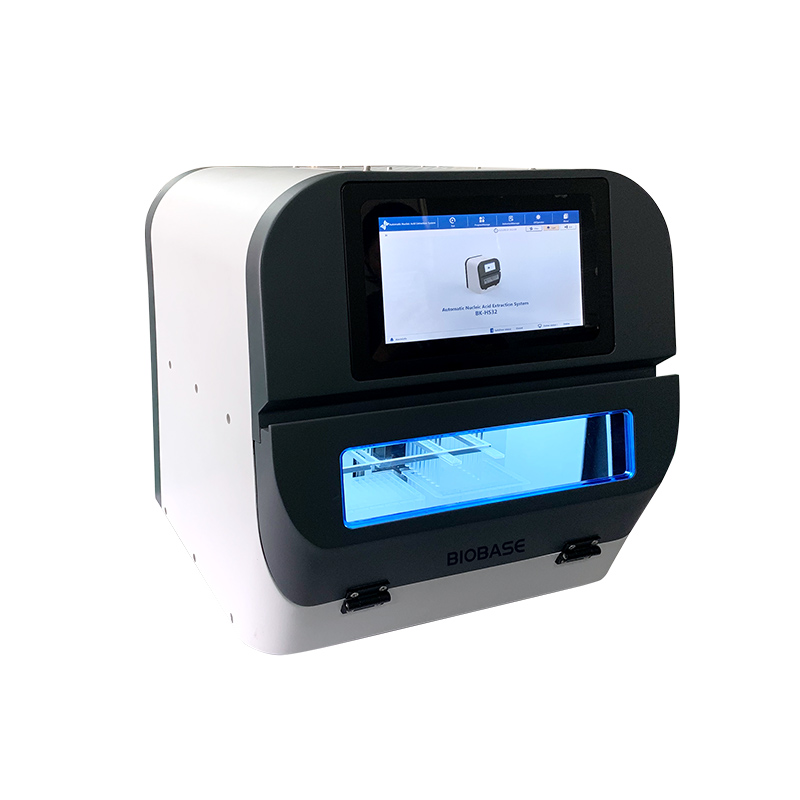

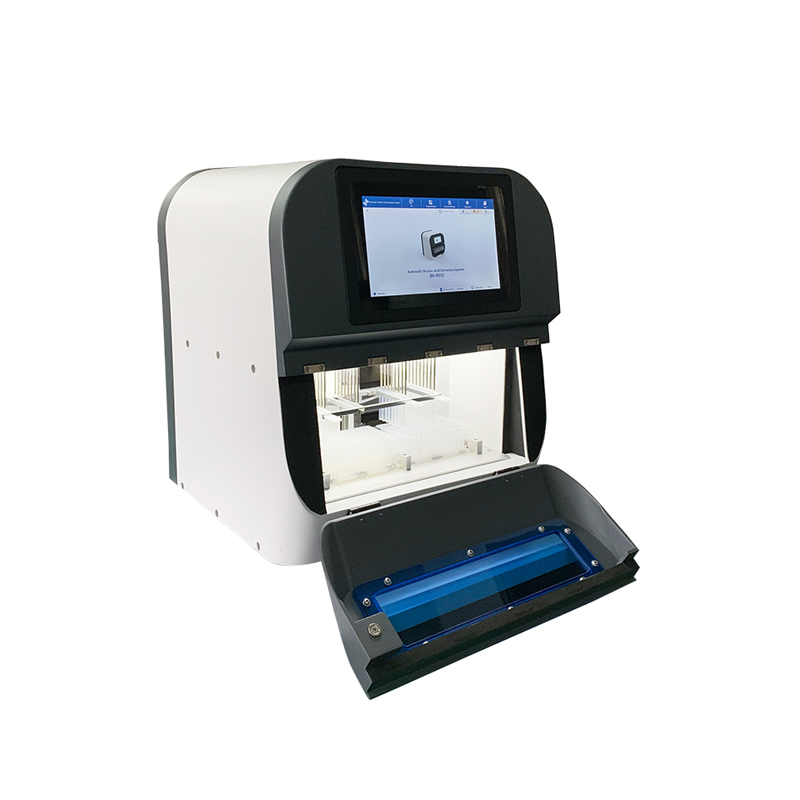

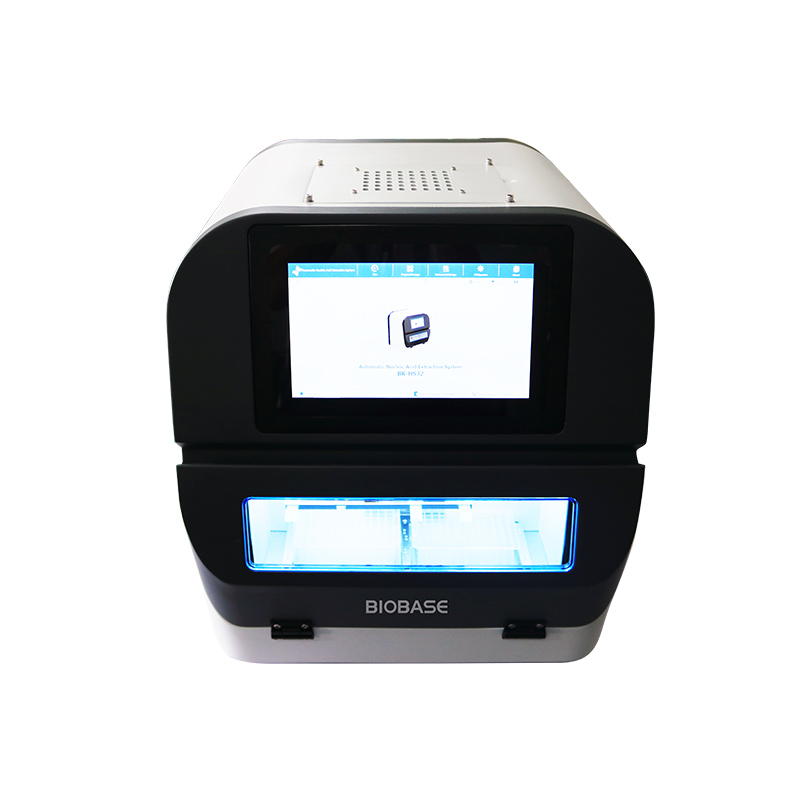

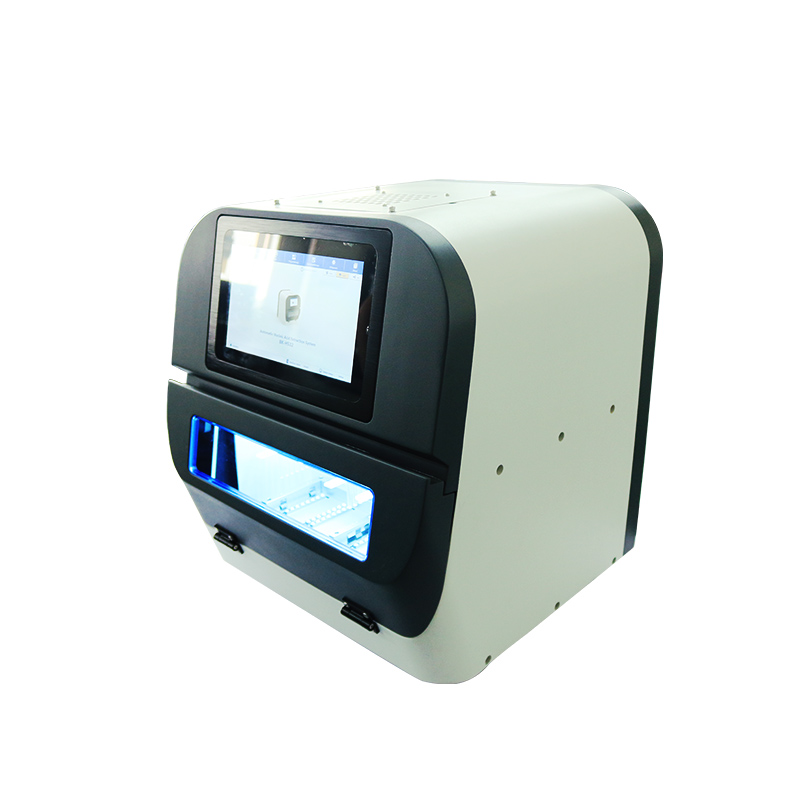

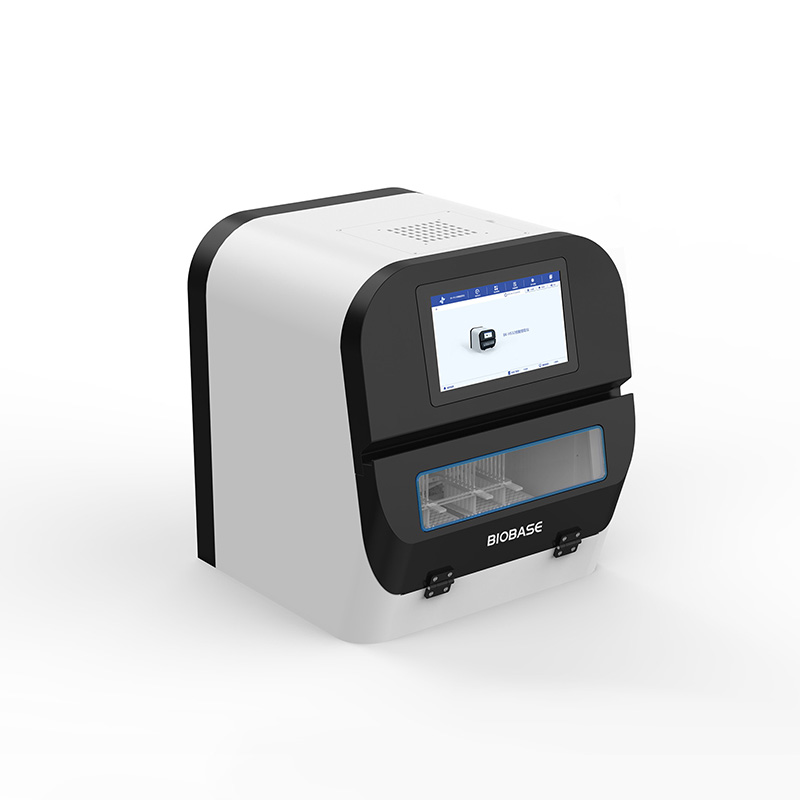

Automatic Nucleic Acid Extraction System BK-HS32

Technical Parameters:

Model	BK-HS32
Extraction Method	Magnetic beads
Sample Capacity	32
Processing Volume	20~1000μl
Extraction Time	15~60min
Magnetic Bead Recovery	≥98%
Extraction Difference Between Wells	＜3%
Magnetic Rod Flux	4500Gs
Temperature Range	Adjustable heating function, RT~100 ℃
Oscillating Mixing	Vertical mixing, low, medium, high three gears adjustable
Module Station	2
Protection Function	Star up self-checking, power off protection, high temperature alarm, over temperature protection, motor protection
Disinfection Method	8W UV lamp
Illuminating Lamp	3.4W LED lamp
Operation Interface	10.1 inch capacitive touch screen Windows system
Barcode Scanning Function	Optional external barcode scanner
Project Storage	>1000
Interface	2 USB port, optional LAN port
Contamination Control	Class II HEPA filter can effectively filter the internal aerosol and prevent cross contamination
IAP Function	Firmware can be updated online at any time
Power Supply	AC100~240V, 50Hz/60Hz
External Size(W*D*H)	460*470*480mm
Package Size(W*D*H)	538*538*750mm
Gross Weight	37kg

Automatic Nucleic Acid Extraction System BK-HS32 — professional solution in the Nucleic Acid Extractor category

Automatic Nucleic Acid Extraction System BK-HS32 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Automatic Nucleic Acid Extraction System BK-HS32

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Automatic Nucleic Acid Extraction System BK-HS32 fits easily into existing process lines and IT infrastructure.

Areas of application Nucleic Acid Extractor

Nucleic Acid Extractor solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automatic Nucleic Acid Extraction System BK-HS32 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Automatic Nucleic Acid Extraction System BK-HS32 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
