Features:
1. Accurate pipetting, air pressure correction can adapt to extreme environments such as flat ground, plateau, island, etc., to ensure the accuracy of pipetting
2. 96 samples can be processed within 60 minutes, realizing high-throughput processing of samples, saving time and effort
3. Reagent position and PCR plate position, can be refrigerated at 4℃
4. With high-efficiency filter, ultraviolet disinfection and sterilization, and safety door functions, effectively prevent microbial pollution
5. Multi-threaded control and three-module extraction can run three different extraction programs at the same time
6. Intelligent temperature control, over-temperature protection function
7. Preset multiple experimental programs, strong compatibility, suitable for various types of sample graphic guides, visualized operations
8. Nucleic acid products can be allocated to the 2*96 PCR reaction system to flexibly construct a variety of different PCR detection systems
Technical Parameters:
Model | BK-AutoHS96 |
Extraction Method | Magnetic bead method |
Working Mode | Automatic sampling + Nucleic acid extraction + PCR reaction system addition |
Throughput | 1~96, linear slide type sample rack |
Extraction Volume | 20~1000μl |
Processing Time | Complete the processing of 96 samples within 60 minutes(Related to reagents) |
Magnetic Bead Recovery | ≥98% |
Temp Range | RT~105℃, lysis and elution position |
Temp Accuracy | 0.1℃ |
Heating Method | Dry bath heating |
Heating Speed | RT~100℃≤6min |
Shaking Function | Up and down oscillation(1~5 gears adjustable) |
Extraction Position | 6(96-well deep well plate) |
Robotic Arm | A robotic arm for adding samples and reagents |
Pipetting Channel | 2 channels |
Liquid Detection | Pneumatic liquid level detection principle, intelligent detection of blocked needle |
Pipetting Tip | 50μl, 200μl,1000μl, disposable black conductive needle with filter element |
Tip Amount | 2~3 tips/sample |
Pipetting Accuracy | 10μl, CV≤3.0%, Accuracy≤5.0%, 50μl tip |
50μl, CV≤2.0%, Accuracy≤2.0%, 1000μl tip |
100μl, CV≤1.5%, Accuracy≤2.0%, 1000μl tip |
Sample Volume | 2~1000μl |
Working Zone | 2 pcr positions with cooling function |
6 tip positions for three types of tips |
2 reagent positions(5ml freezing tube rack position with cooling function, one reserved position) |
Protective Function | Start up self-test, Power-off protection, High temperature alarm, Over-temperature protection, Tip removal protection |
Disinfection Method | UV lamp(30W*1, 8W*1) |
Illumination Lamp | 10W LED lamp |
Audible Alarm | Yes(Red and blue blinking) |
Safety Door Design | With safety lock function, the safety door is opened and the program is suspended |
Display | 10.1 inch touch screen, Windows system |
Scanning | Optional |
Interface | LAN interface(Bi-direction LIS optional) |
Contamination Control | Built-in air duct and HEPA filter can effectively filter internal aerosols and prevent cross-contamination |
IAP Function | Firmware can be upgraded online at any time |
Power Supply | 110/220V, 50/60Hz |
External Size(W*D*H)mm | 1420*850*1842 |
Package Size(W*D*H)mm | Main Instrument: 1535*970*1180 Base: 1540*970*1160 |
Gross Weight(kg) | Main Instrument: 360 Base: 190 |

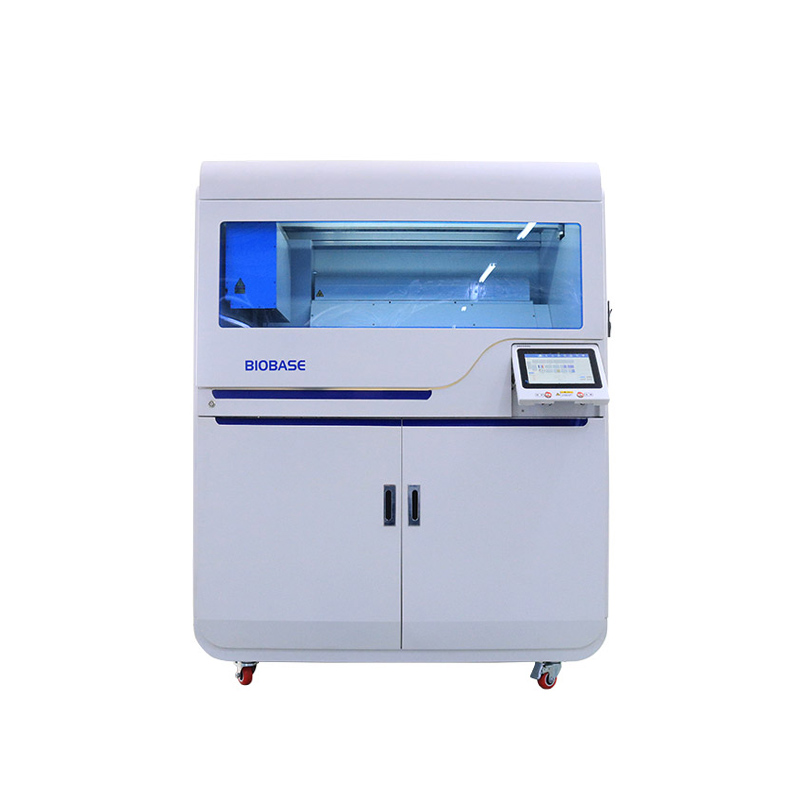

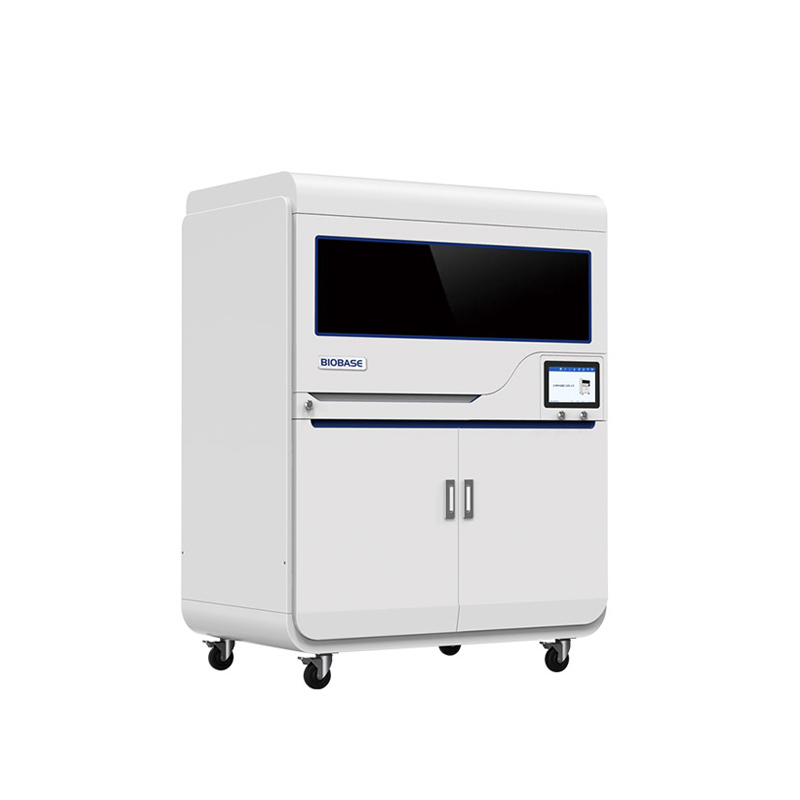

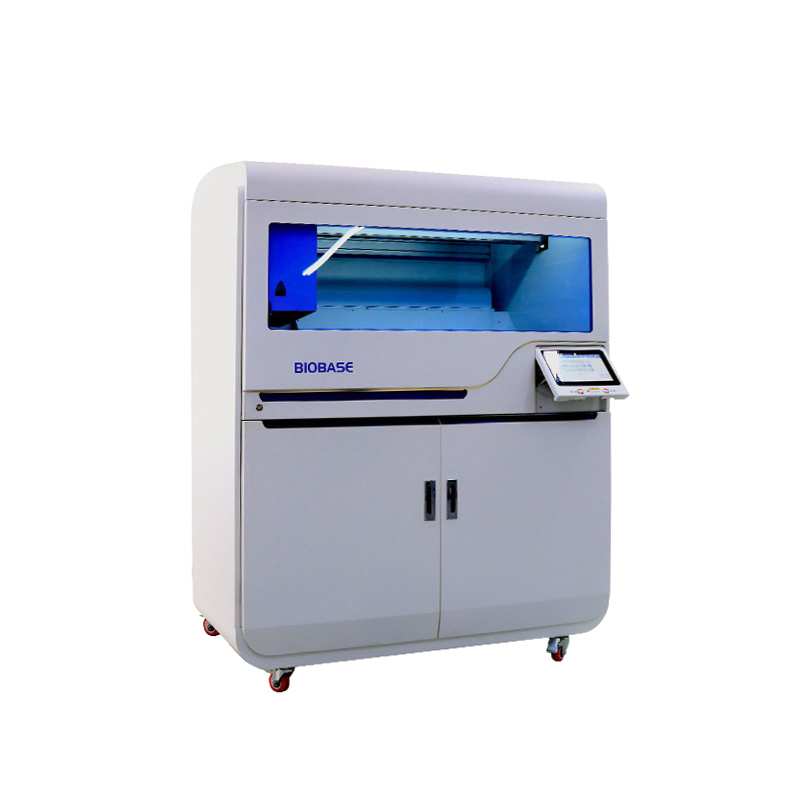

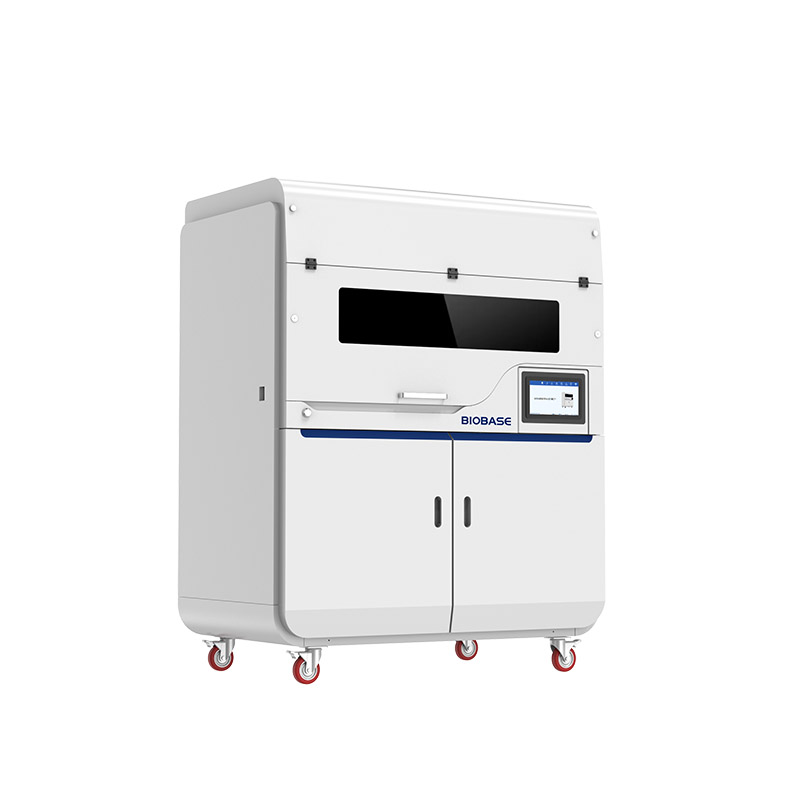

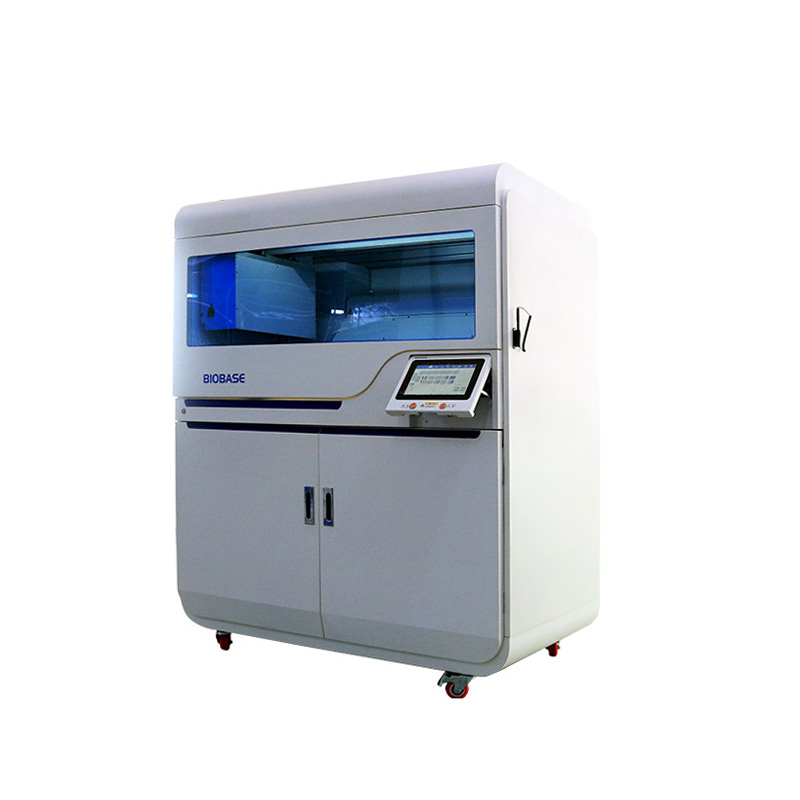

Automatic Nucleic Acid Extraction System BK-AutoHS96 — professional solution in the Nucleic Acid Extractor category
Automatic Nucleic Acid Extraction System BK-AutoHS96 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Automatic Nucleic Acid Extraction System BK-AutoHS96
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Automatic Nucleic Acid Extraction System BK-AutoHS96 fits easily into existing process lines and IT infrastructure.
Areas of application Nucleic Acid Extractor
Nucleic Acid Extractor solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automatic Nucleic Acid Extraction System BK-AutoHS96 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Automatic Nucleic Acid Extraction System BK-AutoHS96 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Automatic Nucleic Acid Extraction System BK-AutoHS96 to the cart or contact our manager. We will help integrate Nucleic Acid Extractor into existing processes without downtime and unnecessary costs.
