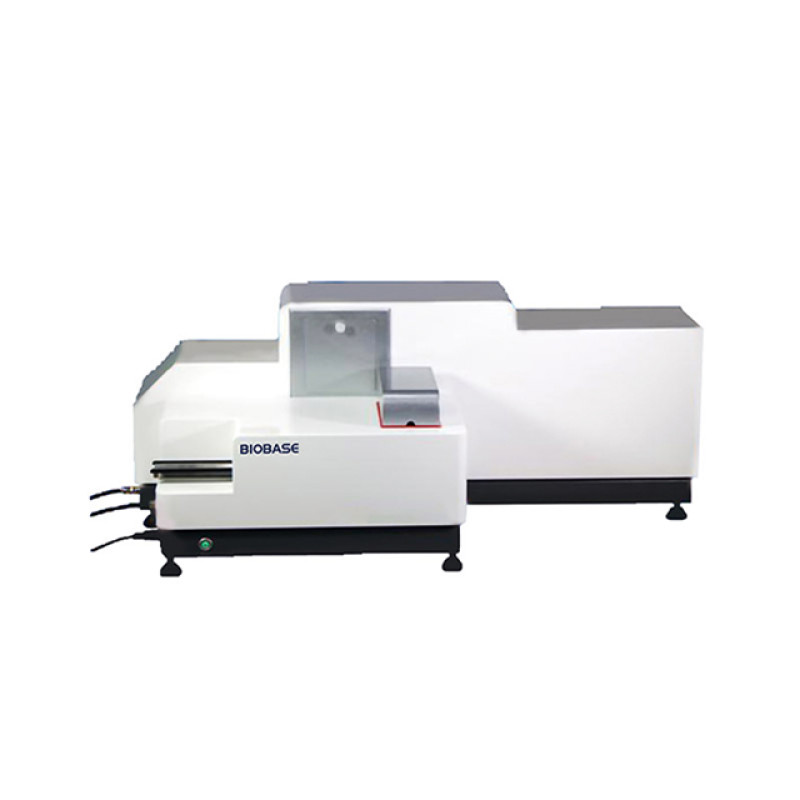

Automatic Laser Particle Size Analyzer
Application:
The particle size analyzer is a relatively general particle size analyzer that measures the size of powder particles according to the principle of light scattering. It has a wide dynamic range, fast measurement speed, and easy operation, making it ideal for measuring powder and liquid droplets with a wide particle size distribution. As a new type of particle size testing instrument, particle size analyzer has been widely used in other powder processing and application fields. Its application is of great significance to improve product quality and reduce energy consumption.
Features:
* Advanced optical design: It by using a convergent Fu Liye transform test technique to ensure the maximum range in the short focal length, effectively improve the instrument resolution; high density detection unit is unique, so that it has a small particle testing ability strong, high density detection unit using it with full range of seamless super capacity test the.
* Anti dry ultrasound: ultrasonic anti-dry function can be realized to avoid damage to the ultrasonic in the absence of water.
* Dust proof and shockproof design.
* Sample residue-free design and bubble-free design.
* Misoperation protection: The instrument has a self-protection function for misoperation, and the instrument does not respond to misoperation.
* Dry Wet Switching: one button automatic switching of software.(BPSA-6100D)
Technical Parameters:
Model | BPSA-6100D | BPSA-5100H |
Test Aange | wet process: 0.01μm -1250μm | dry process: 0.1μm -1250μm | 0.1μm -300μm |
Test Speed | <1min/ times (excluding sample dispersion time) |
Number of D etector Channels | wet process: 112 | dry process: 102 | 78 |
Accuracy Error | dry process: <1%，wet process: ＜1% （D50 value of national standard sample） | <1%（D50 value of national standard sample） |
Repeatability Error | dry process: <1%, wet process: ＜0.5% （D50 value of national standard sample） | ＜0.5%（D50 value of national standard sample） |
Wet Process | Ultrasonic | Frequency: f=40KHz, power: p=80W, time: optional, adjustable, with ultrasonic anti drying |
Cycle and Stir | Integrated design of circular mixing, speed: 100-3950rpm, adjustable speed | Integrated design of circular mixing, speed: 10-3000rpm, adjustable speed |
Circulating Flow | Rated flow: 0-10L/min adjustable rated power: 25W |
Sample Cell | The design of boiling type sample pool, the dispersion effect is better, capacity: 190-600mL can be normal test |
Shading Detection | The instrument has a unique real-time detection function of the shade, to ensure that the amount of samples added more accurate |
Dry Process | Dispersion Mode | High pressure air dispersion | / |
Feeding Method | Mechanical stepless speed regulation, vibration feeding, software control |
Oil Free Mute Air Compressor | With dust filtering function to ensure the accuracy of the test |
Cold Dryer | The freeze drier can filter the moisture in the air and guarantee the dispersing effect |
Power | AC220V±10%, 50/60Hz(Standard) AC110±10%, 60Hz(Optional) |
Package Size(mm) | 1270*410*620 710*430*440 390*390*560 350*340*410 750*420*700 800*550*800 | 680*510*530 |
Gross Weight(kg) | 198kg | 51kg |
Automatic Laser Particle Size Analyzer — professional solution in the Other Lab Equipments category
Automatic Laser Particle Size Analyzer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Automatic Laser Particle Size Analyzer
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Automatic Laser Particle Size Analyzer fits easily into existing process lines and IT infrastructure.
Areas of application Other Lab Equipments
Other Lab Equipments solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automatic Laser Particle Size Analyzer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Automatic Laser Particle Size Analyzer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Automatic Laser Particle Size Analyzer to the cart or contact our manager. We will help integrate Other Lab Equipments into existing processes without downtime and unnecessary costs.
