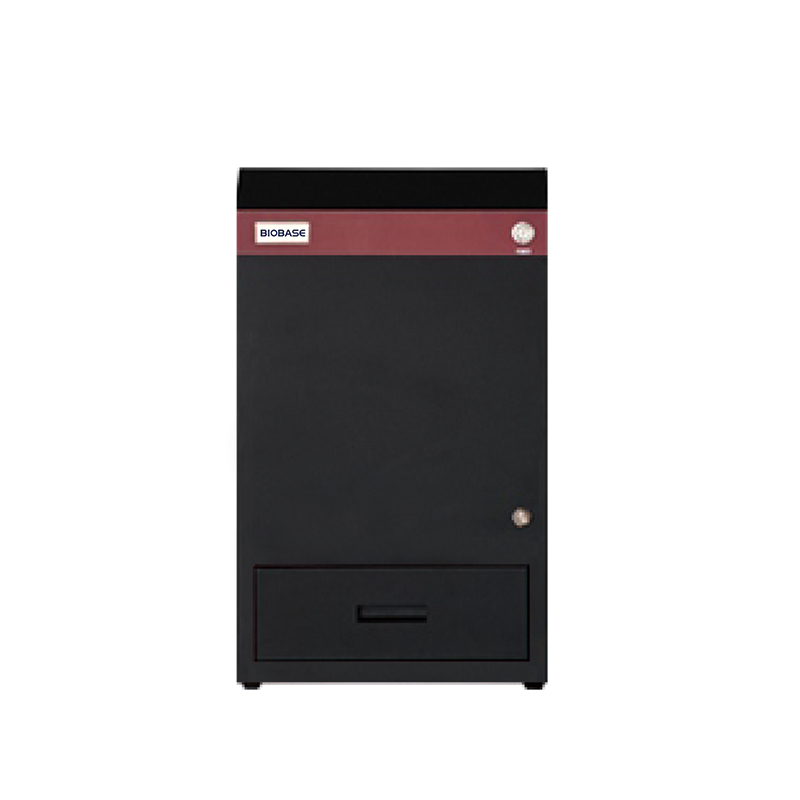

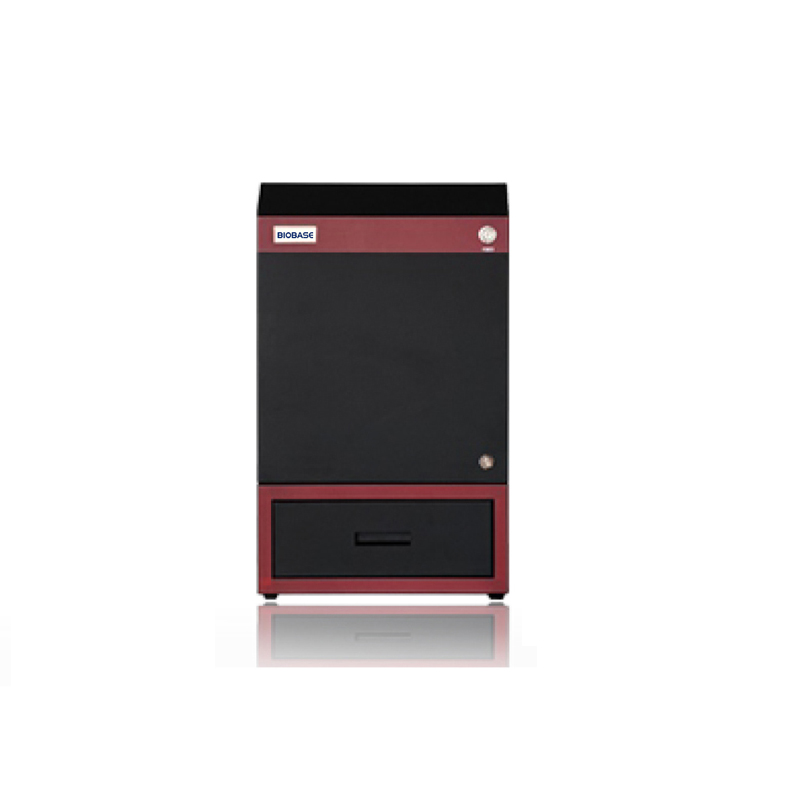

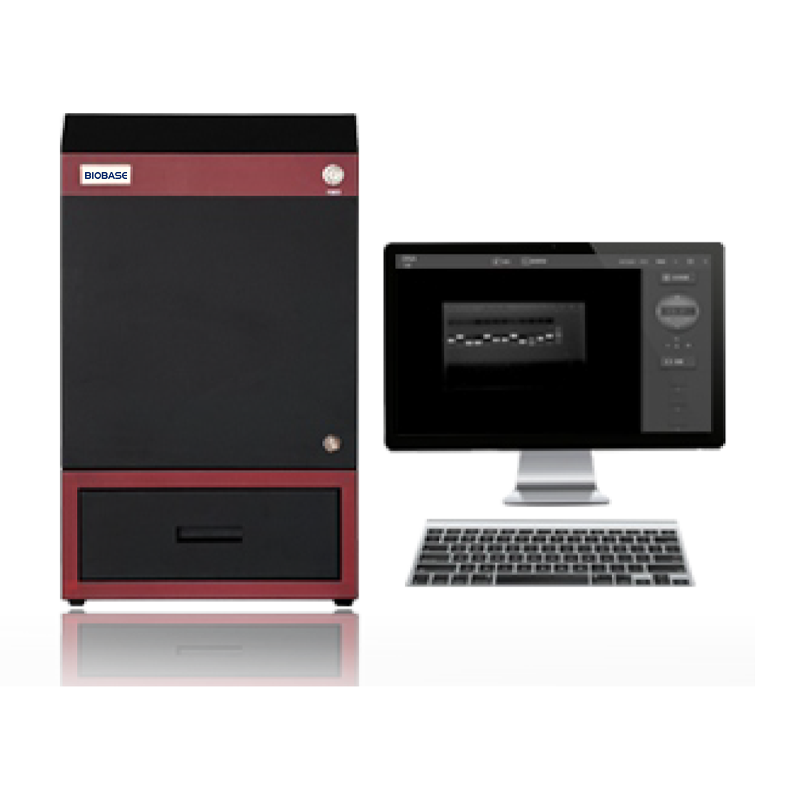

Automatic Gel Imaging and Analysis System BK-AG100

Features:

High-resolution CMOS camera, high sensitivity, high resolution, with automatic focus and high performance 6 times len, specialized filter for nucleic acid dye.

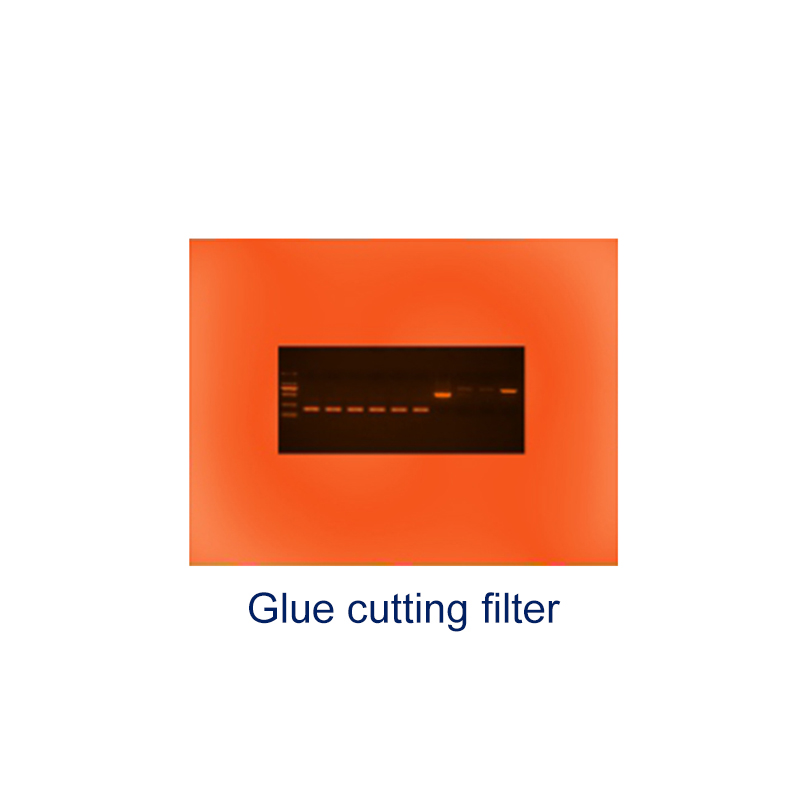

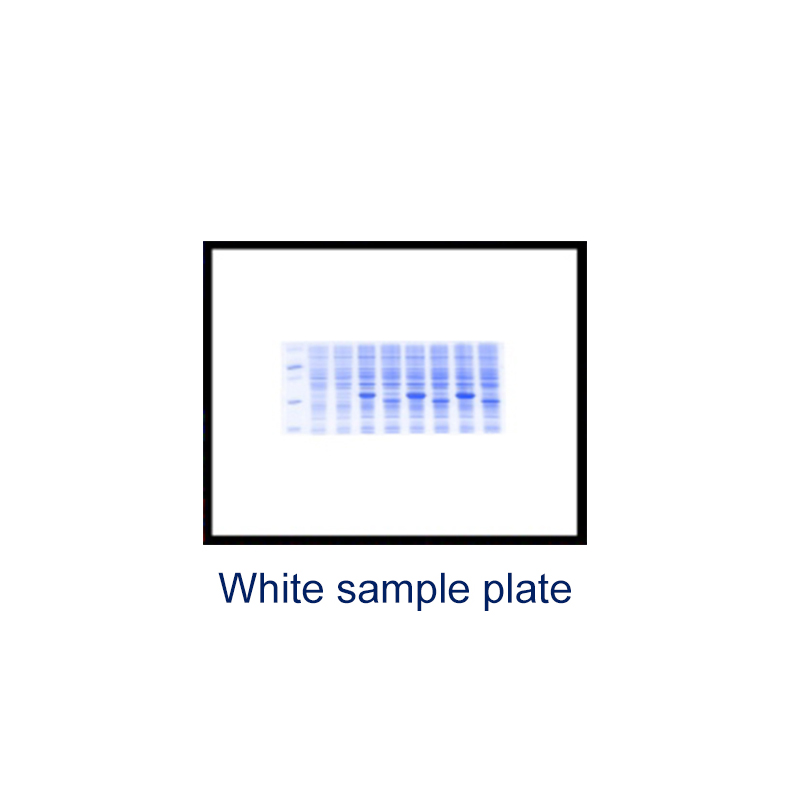

Specialized overlay glue cutting filter, compared with the traditional one, it has many advantages, easy to operate, can prevent UV and blue light damage, no need to operate in dark room, work ver y well under strong light condition The white light sample plate is used for SDS -PAGE glue samples shooting.

Application:

It can be used to do nucleic acid test for various fluorescent dyes, such as EB, SYBRGold, SYBR Green, SYBR Safe, Gel Red Gel GreenTexas, Red, Fluorescein marked DNA/RNA.

Technical Parameters:

Mode	BK-AG100
Pixel	2592*1944(5.03MP)
Exposure Time	1ms~3000ms
QE Value	High QE: >65%
Binning	1*1
Bit Depth	16 bit( 0~65535)
OD	≥4.8OD

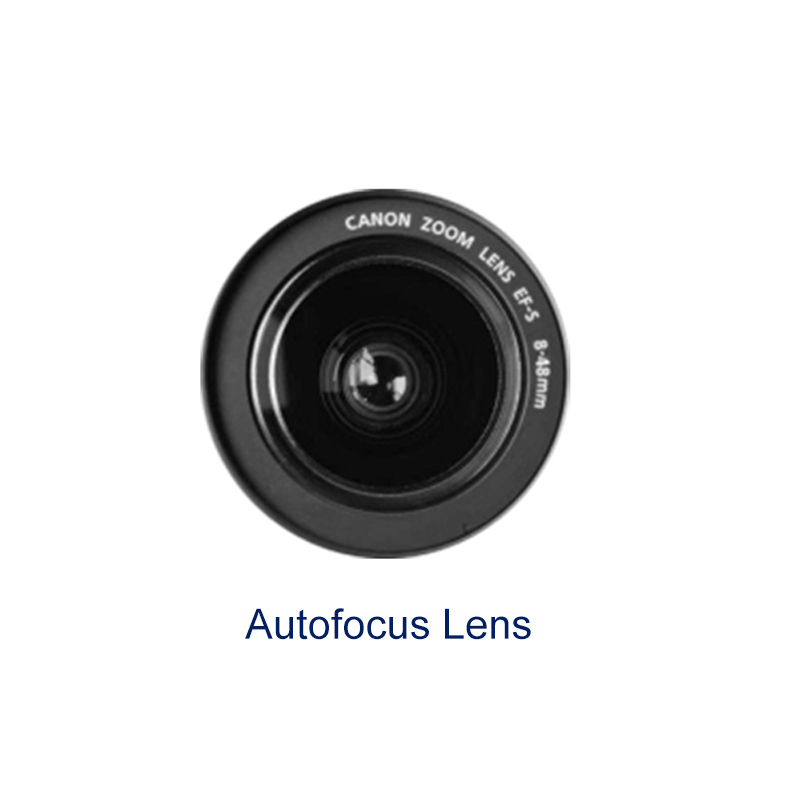

Lens	Motorized 8~48mm, F1.2

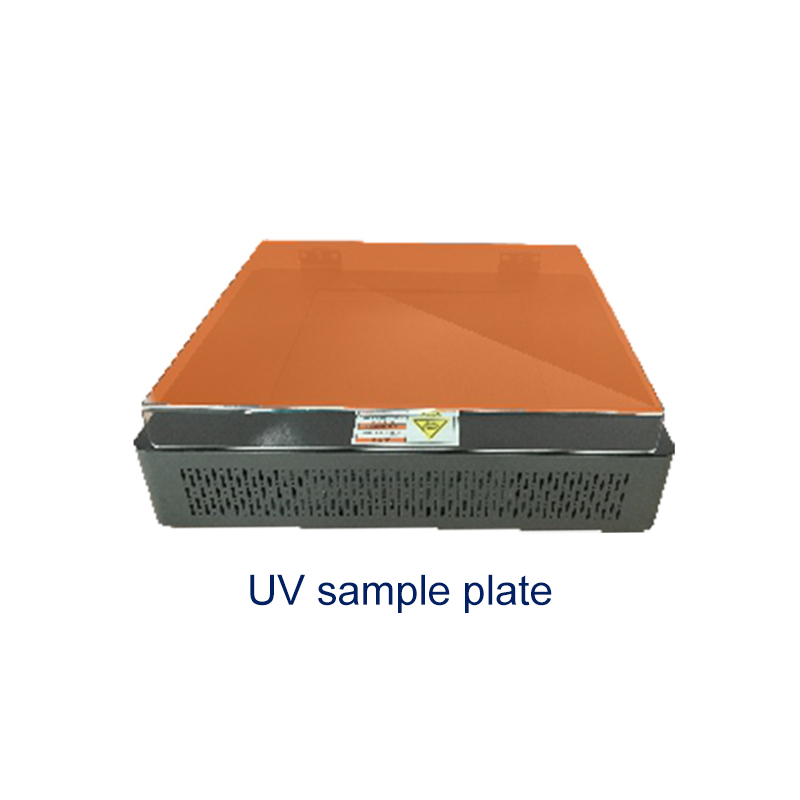

Trans-UV	302nm
Epi-White	LED
Trans-White	UV to white sample plate
Epi-UV	254nm, 302nm, 365nm

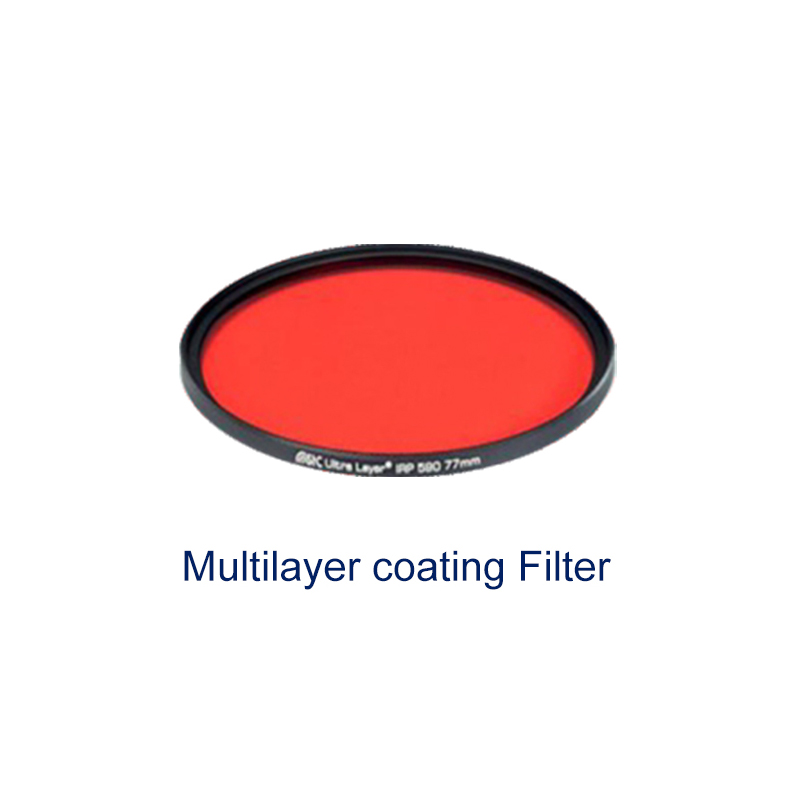

Filters	590nm, Others for option
UV Area	21*21cm
Timing Off	1~60mins
Power Supply	100~240V, 50/60Hz
Packing Size	460*475*725mm
Gross Weight	31kg
