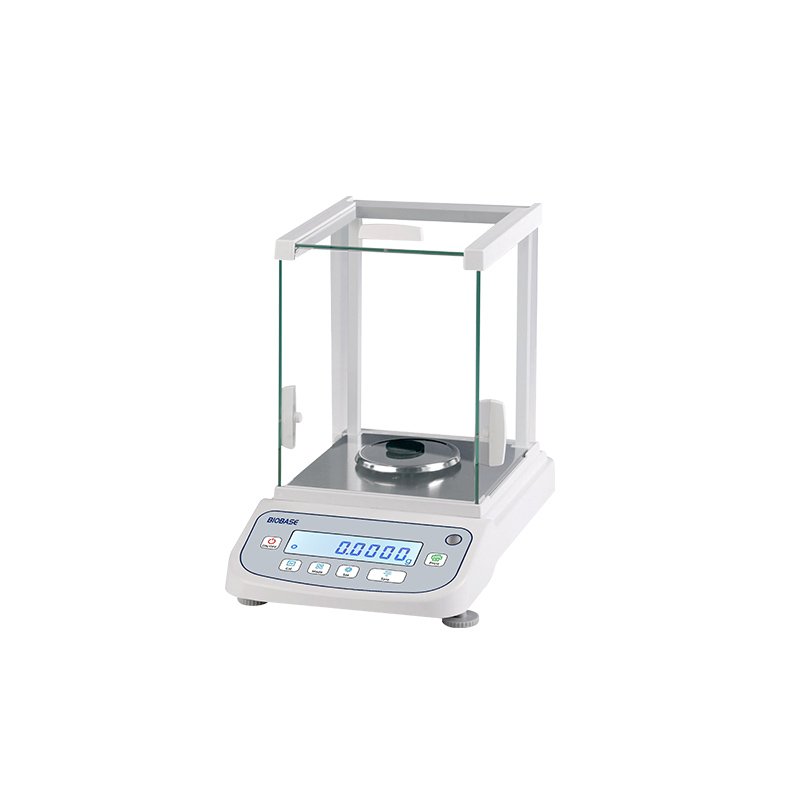

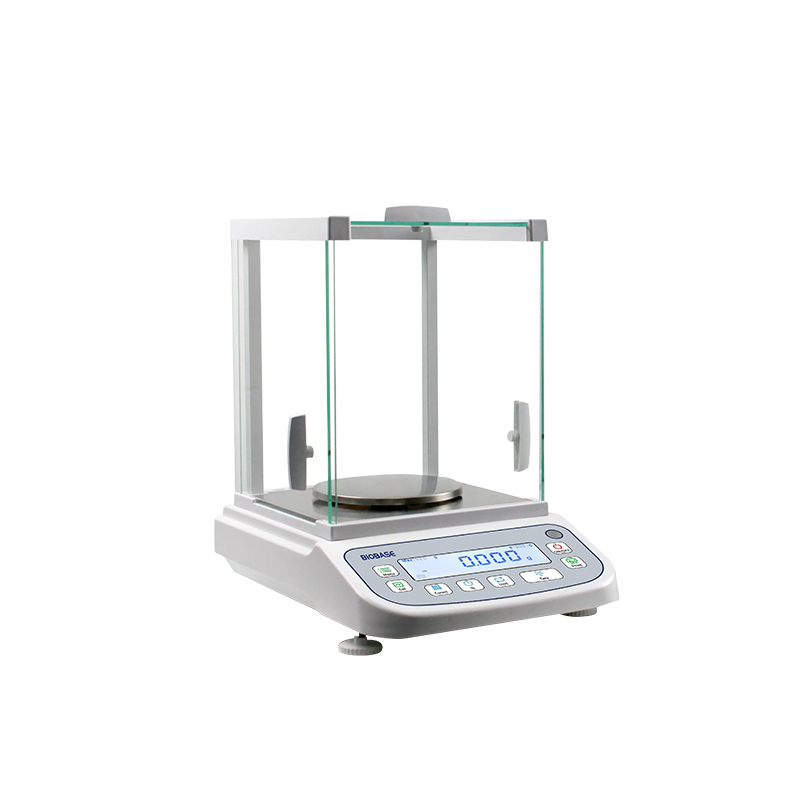

Automatic Electronic Analytical Balance BG-B BG-C

Features：

1. The classic electromagnetic force balance sensor ensures high weighing accuracy, excellent stability, and fast response speed.

2. High-precision and high-resolution electromagnetic force balance sensors are adopted.

3. A high-precision humidity sensor is used to effectively reduce the impact of environmental humidity on weighing.

4. A highly sensitive temperature sensor is used to effectively reduce the sensitivity to temperature changes.

5. With an outstanding design offering high cost - effectiveness, it can excellently complete various weighing/measurement tasks.

6. LCD liquid crystal display: An LCD liquid crystal display is adopted, with a clear and bright screen and a reasonable layout, making it convenient for users to read the weighing results.

7. Transparent glass windbreak: It makes the sample visible from multiple directions during the weighing process.  It can also be disassembled and cleaned for quick cleaning.

8. Multiple weighing modes: basic weighing, percentage weighing, and counting weighing.

9. Sensor protection device: It ensures that the sensor will not be damaged during the transportation of the balance.

10. Optimized product structure design: The design strength is improved, and it has the characteristics of anti - leakage, anti - static, and anti - corrosion.

11. Built-in RS232 two-way communication interface: It can realize the connection between the balance and a computer or a micro-printer.  Weighing results can also be transmitted to other open applications such as a PC.

12. Fully automatic calibration system: When the temperature changes by 1.5°C or the time since the last calibration exceeds 2 hours, the balance will automatically start the calibration function.  This avoids potential factors such as failure to perform regular calibration or inaccurate external weights, making the weighing results of users more accurate and reliable, and reducing unnecessary operations(promoting internal calibration).

Technical Parameters:

Model	BG1204B	BG1204C	BG2204B	BG2204C
Readability	0.1mg
Maximum Range(max)	120g		220g
Repeat Ability	±0.2mg
Liner	±0.2mg
Stable Time	≤2.5s
Pre-heating Time after Startup	30~60min
Precision Grade	I
Pan Diameter	ф90mm
Height of Weighing Chamber	210mm
Operational Temperature Range	10~30℃
Relative Humidity	20%~80%
Calibration Mode	External	Internal	External	Internal
Optional Accessories	USB port, printer, under-hanging weighing device, density module for both solid and liquid
Power Supply	AC100~240V, 50/60Hz
External Size(W*D*H)	210*310*315mm
Baud Rate Options	300, 600, 1200, 2400, 4800, 9600
Package Size(W*D*H)	400*500*470mm
Gross Weight	7kg

Automatic Electronic Analytical Balance BG-B BG-C — professional solution in the Laboratory Balance category

Automatic Electronic Analytical Balance BG-B BG-C is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Automatic Electronic Analytical Balance BG-B BG-C

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Automatic Electronic Analytical Balance BG-B BG-C fits easily into existing process lines and IT infrastructure.

Areas of application Laboratory Balance

Laboratory Balance solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automatic Electronic Analytical Balance BG-B BG-C allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Automatic Electronic Analytical Balance BG-B BG-C you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
