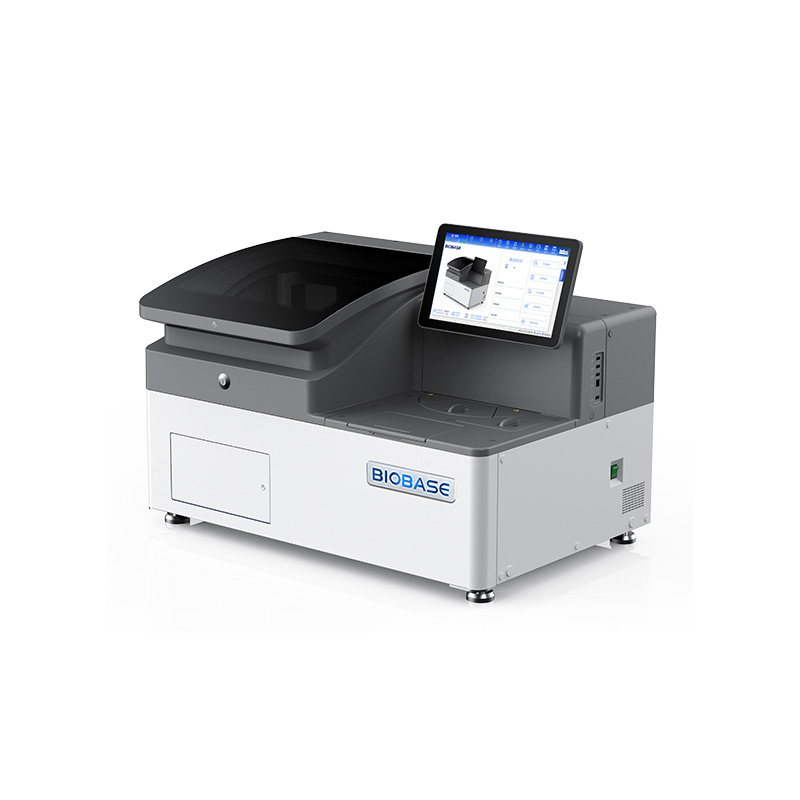

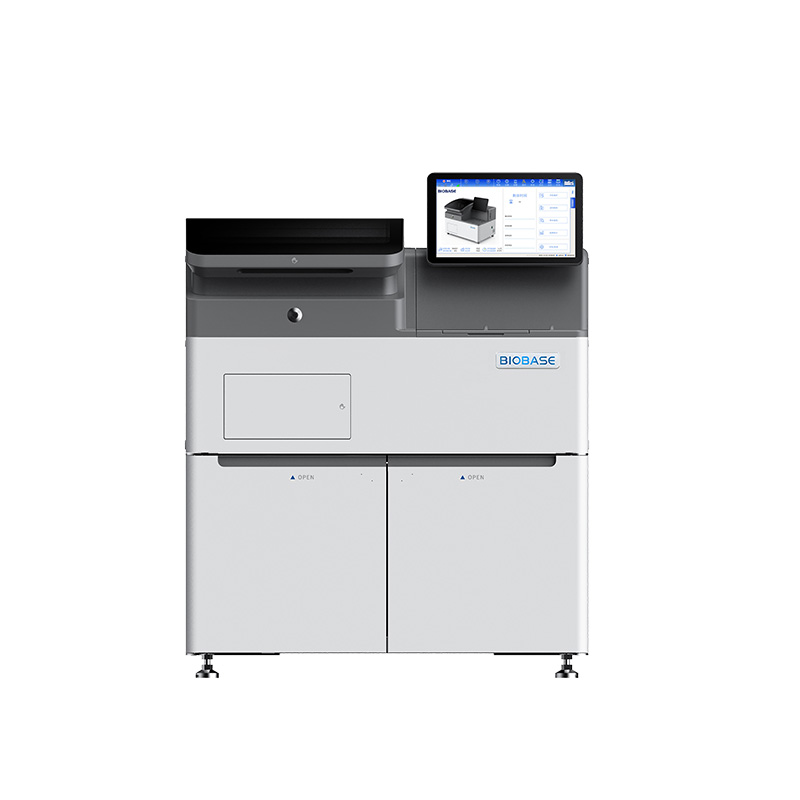

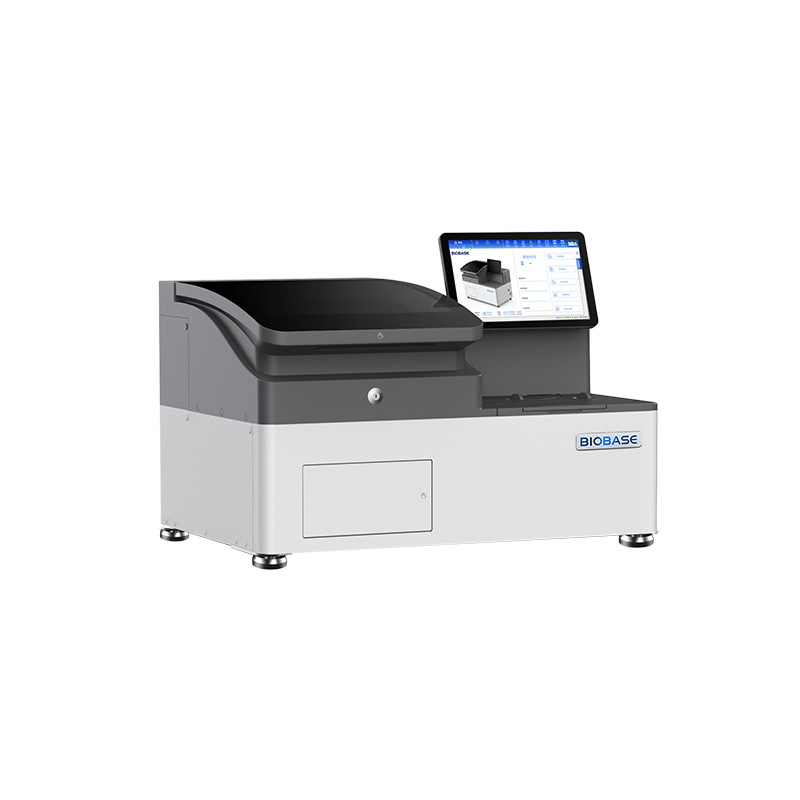

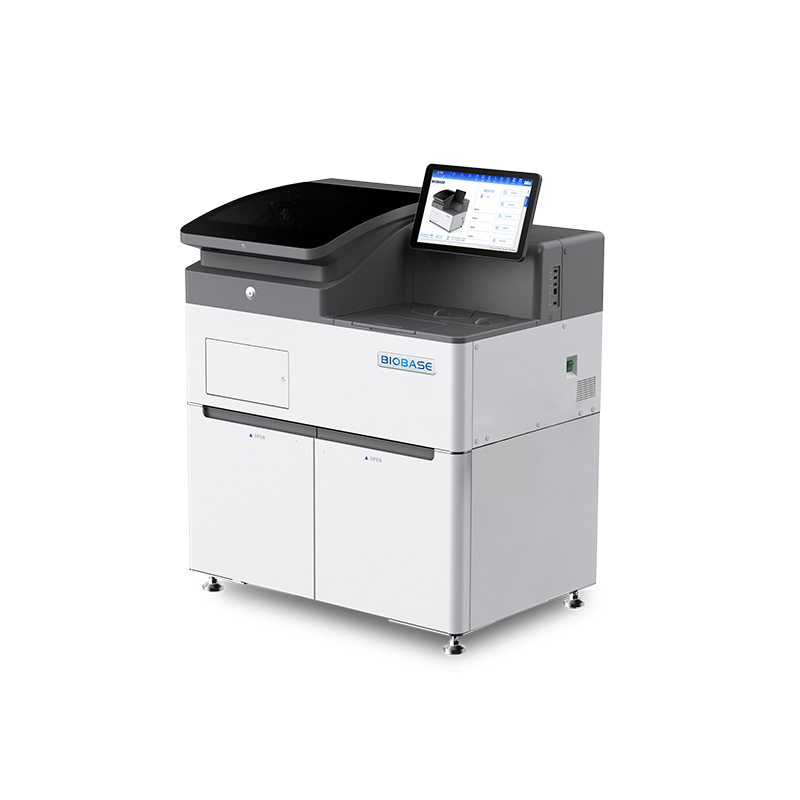

Automatic Chemiluminescence Immunoassay System BKI2200

Advantages:

1. Operation Module：

Tubular enzymatic chemiluminescence

The max speed of a single machine is 240T/h

Carrying contamination rate<10-5

High precision: intra-batch precision≤8%

2. Control Module:

Ergonomic design increased operator comfort

0.68 square meters, highly integrated and simplified patented design

Convenient operation: support LIS two-way communication, scan the code to test

Smooth human-computer interaction experience: the touch screen and the frame are integrated into the machine, and all consumables can be loaded online in real time

3. System Layout：

4. Instrument Software Module:

Humanized software functions

Reagent loading and sample operation are convenient and intuitive

Intuitive display of sample status in testing

Support checking experiment results by sample or project



Reagents and consumables status warning

Accurately record the use of reagents for each project

Accurately record the remaining amount of consumables

Timely alarm when the remaining consumables is insufficient



Simple and intuitive quality control process

Convenient addition of quality control experiments

Intuitive display of quality control results

Support various forms of T-P chart and L-J chart



Convenient and flexible maintenance functions

The maintenance program is comprehensive

Individual maintenance work can be flexibly chosen

Daily, monthly and yearly maintenance work is clearly distinguished



Technical Parameters:

Model	BKI2200
Throughput	240T/H
Principle	Magnetic particle enzymatic chemiluminescence
Modes of Operation	Random, Batch and STAT
Separation Method	Magnetic separation technology
Sample Positions	60(Each position could be used as an emergency position)
Reagent Positions	25pcs(2~8℃ refrigeration)
Incubation Positions	90
Time to 1st Result	12 min
Sample Volume	10~200μl
Detection Precision	CV≤8%
Carry-over Rate	≤10-5
Correlation Coefficient	r≥0.99
Calibration Stability	28 days
Calibration Type	6/7-point calibration
Software System	Comes with a screen,Linux system Bi-direction, support HL7 protocol Intuitive user interface, Intelligent data management
Interface	TCP/IP network interface
Other Function	Liquid level detection Anti-collision function Sample barcode scanning Intelligent alarm prompt
Power Supply	AC100~240V, 50/60Hz
External Size(W*D*H)	1000*685*750
Net Weight	132kg
Package Size(W*D*H)	1338*838*954mm
Gross Weight	201kg

Reagent Menu:

Thyroid	Cardiac marker
TSH	cTnl
TT4	NT-proBNP
TT3	CK-MB
FT4	MYO
FT3	Rheumatoid
TgAb	Anti-CCP
TPOAb	Liver fibrosis
TG	CIV
Anti-TSHR	HA
CT	PⅢNP
Fertility	LN
β-HCG	Anemia
E2	FA
P	VB12
T	FERRITIN
PRL	Growth
FSH	GH
LH	IGF-Ⅰ*
DHEA-S	Glycometabolism
SHBG	INS
AMH	C-P
Hypertension	Pepsinogen
ALD	PGⅠ
ACTH	PGⅡ
Cortisol	Inflammation
Renin	PCT
AⅡ*	IL-6
Tumor marker	Early screening
CA125	FE3
CA15-3	Free β-HCG
CA19-9	PAPP-A
AFP	Bone Metabolism
CEA	BGP
t-PSA	25-OH-Vit-D
f-PSA	iPTH
CA72-4	PINP*
SCC	Infectious
CA242	HBeAb*
CA50	HBeAg*
NSE	HBcAb*
CYFRA21-1	HBsAb*
HE4	HBsAg*
ProGRP	Anti-HBc lgM*
Renal Function	HIV Ag/Ab*
β2-MG	Anti-TP*
Immunoglobulins	Anti-HCV*
Ig E

Automatic Chemiluminescence Immunoassay System BKI2200 — professional solution in the Automatic Chemiluminescence Immunoassay System category

Automatic Chemiluminescence Immunoassay System BKI2200 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Automatic Chemiluminescence Immunoassay System BKI2200

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Automatic Chemiluminescence Immunoassay System BKI2200 fits easily into existing process lines and IT infrastructure.

Areas of application Automatic Chemiluminescence Immunoassay System

Automatic Chemiluminescence Immunoassay System solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automatic Chemiluminescence Immunoassay System BKI2200 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Automatic Chemiluminescence Immunoassay System BKI2200 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
