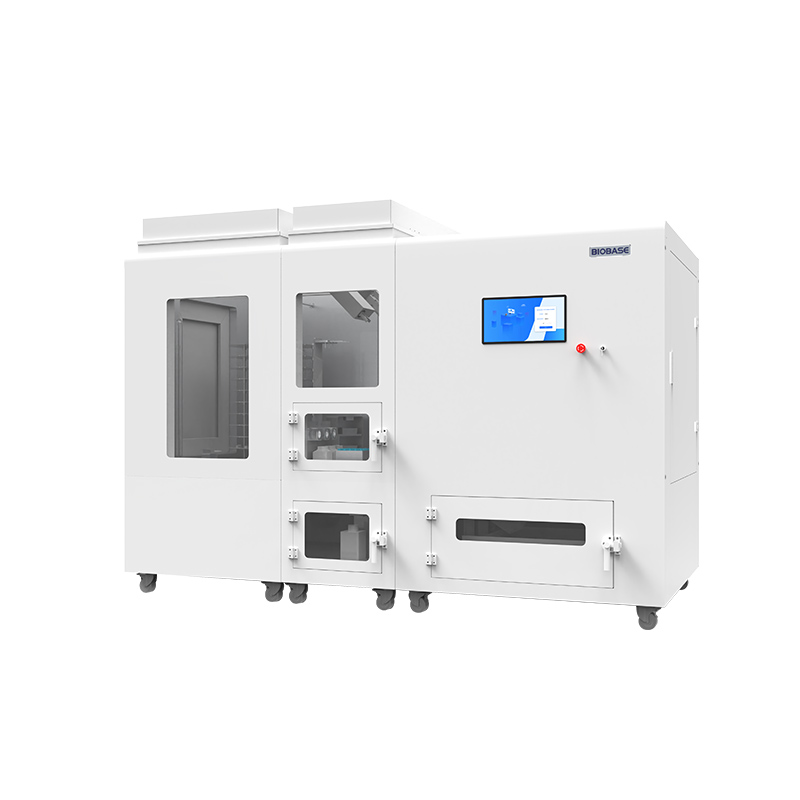

Automatic Cell Culture System

Features:

1. Aseptic Environment: The closed chamber is equipped with FFU(Fan Filter Unit) high-efficiency filters on the top to ensure a Class A clean environment inside the chamber.

2. Labor Liberation: It realizes automated cell inoculation, observation, medium replacement, subculture, cultivation, separation and extraction, storage, and resuscitation, replacing manual operations.

3. Detachable Three Compartments: Composed of a storage room, an operation room, and a culture room, it is convenient for transportation and assembly.

4. Data Monitoring: The process is intelligent, with visualized storage management and traceable monitoring throughout the entire experimental process.

5. Complete Equipment: It features a large-size display screen, high-definition monitoring, imported robotic arms, a centrifuge, fully automatic microscopic imaging, incubator heating and a CO₂ incubator.

6. Space Saving: The integrated design saves occupied space.

Technical Parameters:

Model		AutoCE-001
Hardware	Display Screen	15.6 inches LCD touch screen
	Monitoring	800W high-definition cameras * 2
	Disinfection	150W ultraviolet lamp*3

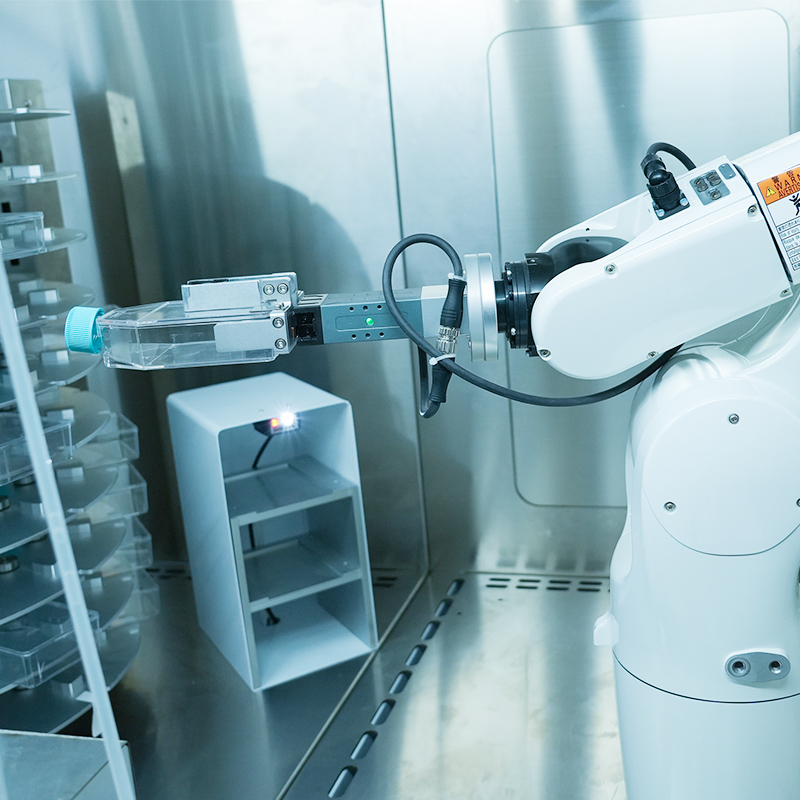

	Robotic Arm	VS-050, 6-axis

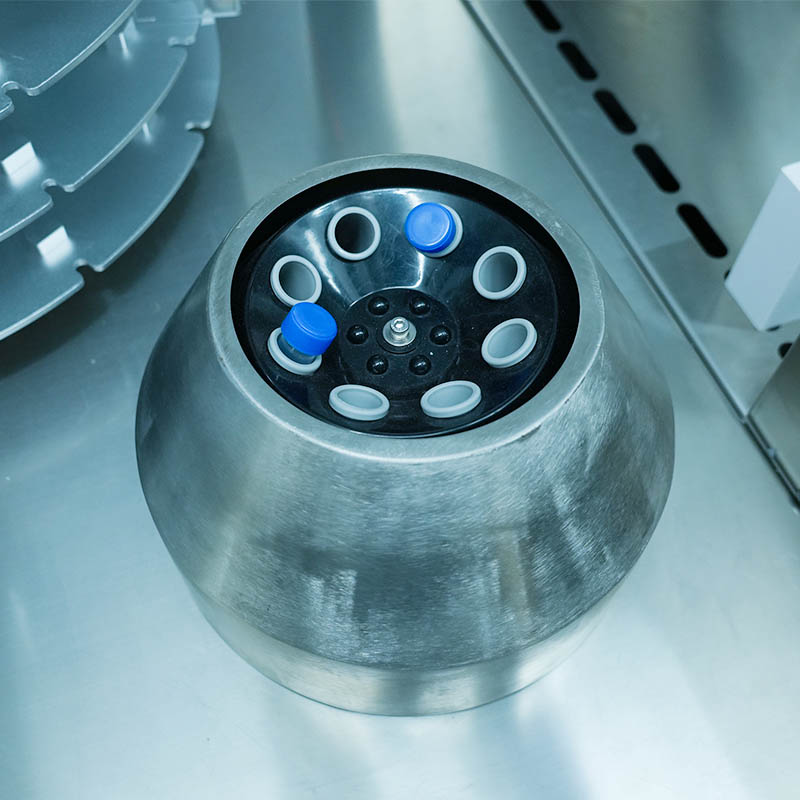

	Centrifuge	15ml*8, 3000rpm
	Microscope	Fully automatic analytical microscopic imaging system
	Resuscitation System	37°C
	ULPA Purification Efficiency	99.9995%@0.12μm
	Empty Bottle Storage Rack	120 culturing positions for T75 culture bottles
CO₂ Incubator	Incubator Volume	220L
	Culturing Capacity	84 culturing positions for T75 culture bottles
	Temperature Control Range	RT~60°C
	CO₂ Control Range	0~20%
	Humidity	≥90%RH
	Disinfection Method	140°C dry heat sterilization
Power Supply		AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional, External transformer)
Consumption		4KW
External Size(W*D*H)mm		2760*1280*1900
Package Size(W*D*H)mm		Storage room: 1000*1350*2050 Operation room: 660*1350*2050 Culture room: 1300*1350*1950
Net Weight(kg)		1085
Gross Weight(kg)		Storage room: 400 Operation room: 300 Culture room: 550
