Application:
Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of SARS-CoV-2 or other virulent infectious diseases.
Work Process:
Features:
1. Safety: Equipped with double independent, specific anti aerosol cross contamination device, high efficiency ultraviolet disinfection module, external liquid trap tray.
2. Efficient: 96 samples were processed within 25 minutes, with double manipulator, double sample addition and double screw cover channel.
3. Convenient: 10.1-inch HD touch screen, user-friendly operation interface, one-click software operation, quick mastery; Pull-out scrap TIP storage box design, more convenient cleaning.
4. Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes.(including blood collection tubes) specifications
5. Smart: One-key operation, smart dispensation.
Technical Parameters:
Model | BK-PR96 |
Throughput | 1~96 |
Processing Time | 96 samples/25min |
Sample Type | Plasma, serum, whole blood, swab solution and other samples |
Sample Rack | 1pc(Compatible with a variety of sampling tubes) |
Robot Arm | 2pcs(Dispensation arm and screw cap arm) |
Clamping Arm | 2pcs, Independence movement |
Pipetting Method | Specific mechanical pipetting fluids |
Plate Position | 3pcs(Compatible with multi-specification deep-well plates) |
Tip Position | 3pcs(Including tip waste box position) |
Reagent Rack | Yes, 4*4 reagent carrier, can hold bullet cryotube |
Pollution Prevention&Control
| External droplet capture tray design Aanti-aerosol cross-pollution device UV Light Air-tight and anti-drip design |
Liquid Detection | Pneumatic liquid level detection principle, intelligent detection of blocked needle |
Pipetting Volume | 5~1000μl |
Pipetting Accuracy | 20μl, CV≤2%, Accuracy≤5.0%, 50μl tip |
1000μl, CV≤0.5%, Accuracy≤1.0%, 1000μl tip |
Power Supply | Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz |
Power | 350W |
External Size(W*D*H) | 1180*680*760mm |
Net Weight | 105kg |
Package Size(W*D*H) | Main instrument: 1318*818*840mm Accessory 1: 645*185*440mm Accessory 2: 645*185*440mm |
Gross Weight | Main instrument: 156kg Accessory 1: 6.1kg Accessory 2: 4kg |

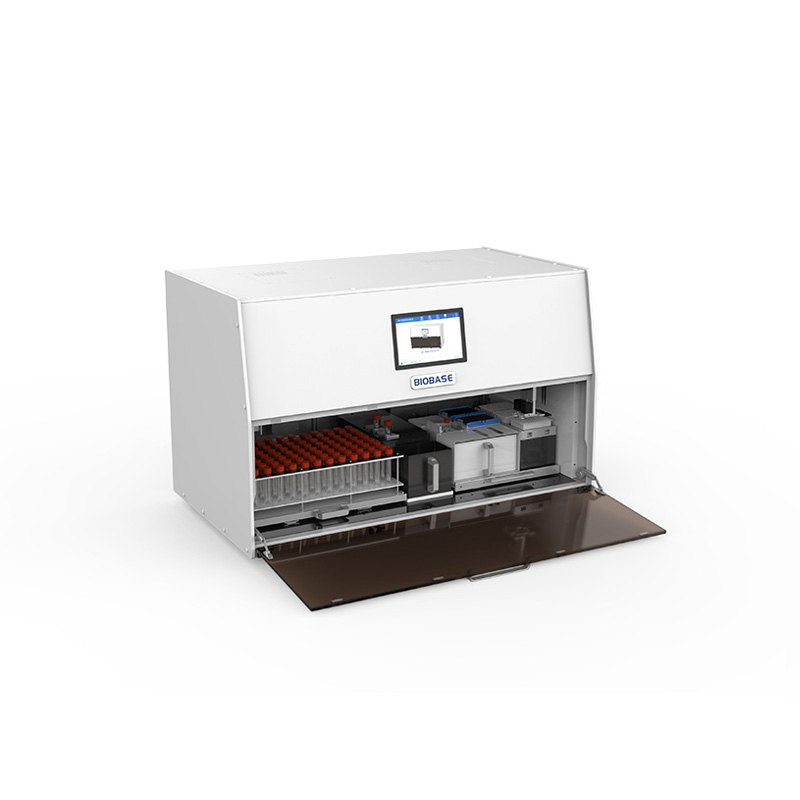

Automated Sample Processing System Bk-PR96 — professional solution in the Clinical Analytical Instruments category
Automated Sample Processing System Bk-PR96 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Automated Sample Processing System Bk-PR96
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Automated Sample Processing System Bk-PR96 fits easily into existing process lines and IT infrastructure.
Areas of application Clinical Analytical Instruments
Clinical Analytical Instruments solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automated Sample Processing System Bk-PR96 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Automated Sample Processing System Bk-PR96 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Automated Sample Processing System Bk-PR96 to the cart or contact our manager. We will help integrate Clinical Analytical Instruments into existing processes without downtime and unnecessary costs.
