Features:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program.
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process.
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃.
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process.
5. PLC touch screen control with preset 12 programs and 99 cutomized programs.
6. Safety protection—electronic security door lock to prevent unexpected door opening, water&drying air temperature dual control and equipped with emergency switch.
Standard Washing Procedure(can be self-designed by the user):
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

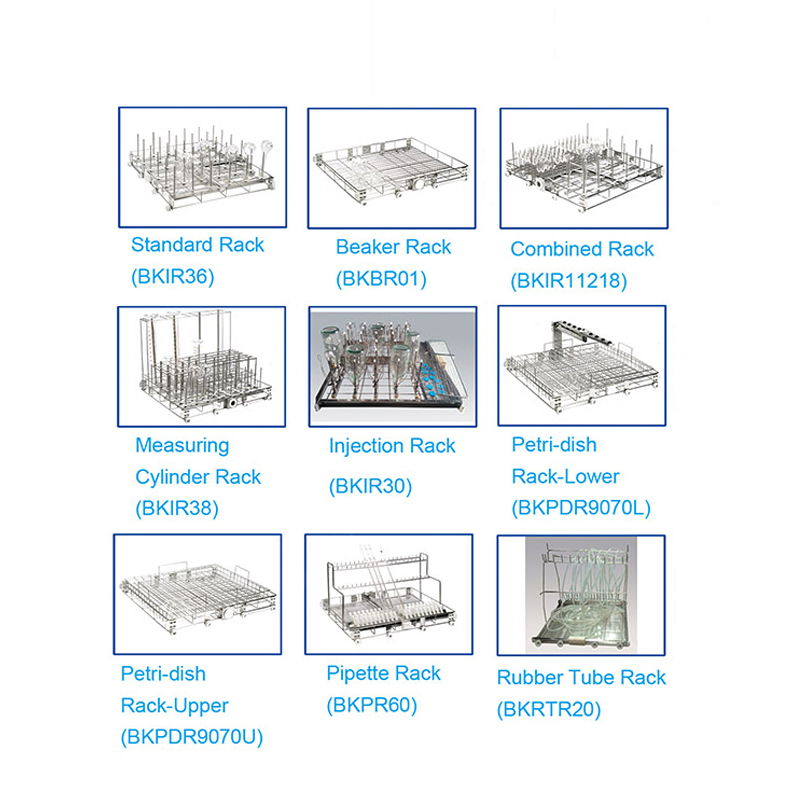

ALL cleaning racks can be removed completely, convenient to washing rack pipeline:
Technical Parameters:
Model | BK-LW120 | BK-LW220 | BK-LW320 |
Cleaning | Capacity | 120L | 220L | 320L |
Washer Load Level | 1 | 2 | 3 |
Water Wash Power | 0.75KW | 0.75KW | 1.5KW |
Water Heater Power | 5KW | 5KW | 15KW | 5KW | 15KW |
MAX. Power | 6KW | 6KW | 16KW | 7KW | 17KW |
Water Consumption/Step | 17L | 20L | 22L |
Tank Internal Temperature | 0~99℃ |
Water Supply Pressure | 0.3~1.0Mpa |
Peristaltic Pump for Cleaning Agent | 2 independent pumps control detergent agent and neutralizing agent |
Cleaning Agent Level Sensor | YES |
Washing Pump | Sweden 430L/min | Sweden 800L/min | Sweden 1000L/min |
Standard Cleaning Racks | BKIR36*1 | BKIR36*2 | BKIR36*3 |
Drying | Drying Function | YES |
Steam Condenser | YES |
Dry Power | 3KW | 3.6KW | 3.6KW |
Control System and Traceability | Control System | 7" color LCD touch screen display, microprocessor |
Cleaning Program | 12 pre-set programs(editable)+99 PLC free programming |
Password Protection | 3 levels password |
Safety Emergency Button | YES |
USB Port | YES |
Integrated Printer | Optional |
Online Monitor Performance of Washing | Optional
|
Dimensions&Weight | Chamber Dimension(W*D*H) | 600*629*539mm | 600*629*754mm | 600*629*915mm |
Exterior Dimension(W*D*H) | 980*740*870mm | 695*870*1820mm | 695*870*1990mm |
Package Dimension(W*D*H) | 1110*940*1075mm | 810*990*2015mm | 810*990*2185mm |
Net Weight(Host only) | 169kg | 220kg | 237kg |
Gross Weight(Host with rack) | 200kg | 300kg | 320kg |
Others | Door | Double-layered glass door |
Safety Door Lock | YES
|
Built-in RO Water Pump | YES |
Noise | <50dB | <55dB | <55dB |
Power Supply | AC220V, 50Hz(Standard); AC110V, 50/60Hz; 220V, 60Hz(Optional) | AC220V, 50Hz; 380V, 50Hz(Standard); AC110V, 50/60Hz; AC220V, 60Hz; 220V, 60Hz(Three phase), 380V, 60Hz(Optional)
|

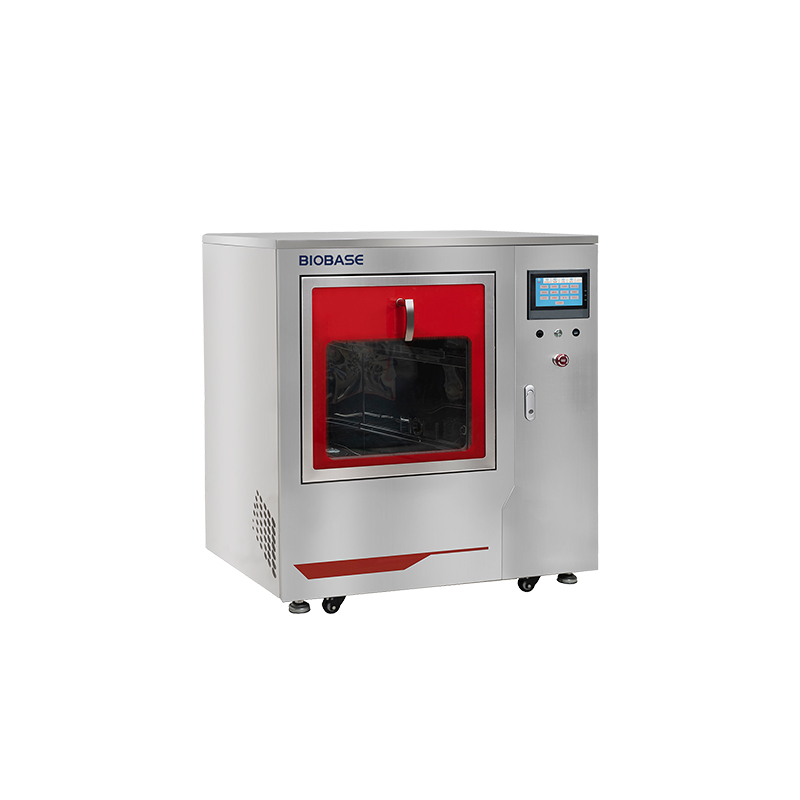

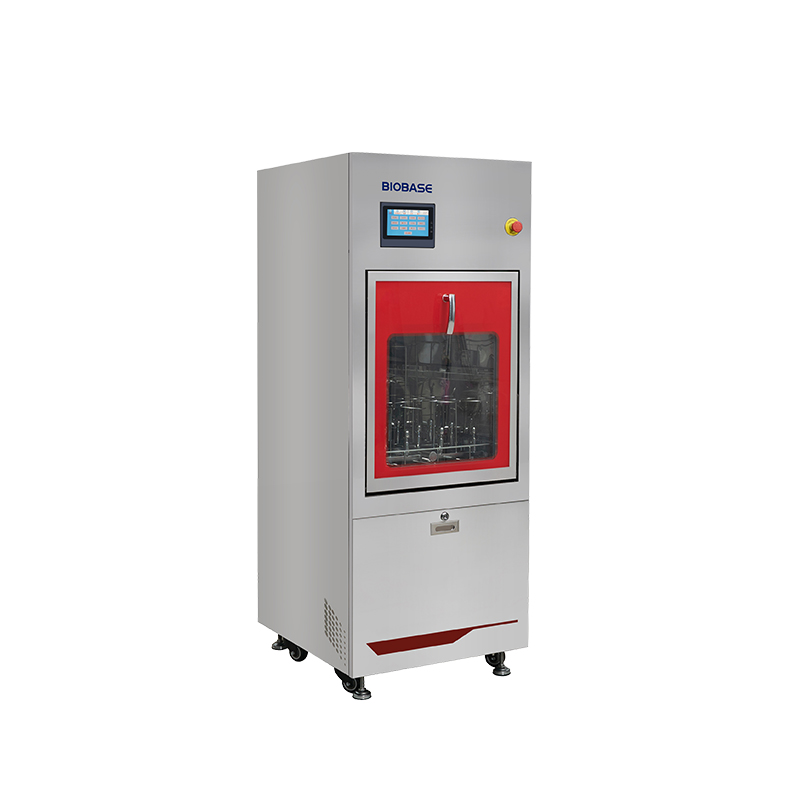

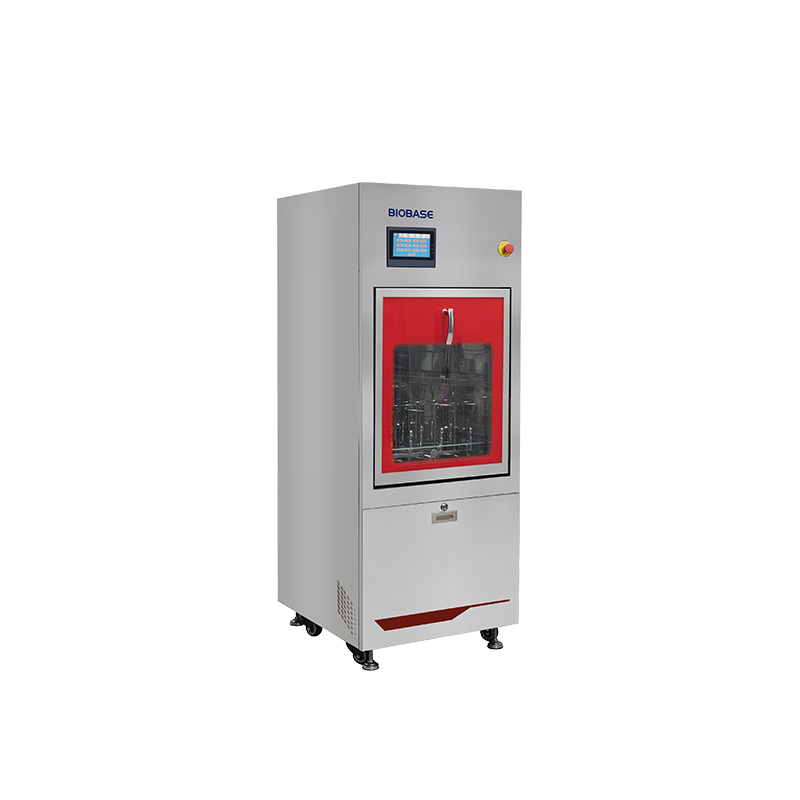

Automated Dental Washer Disinfector Dental Medical Glassware Washer — professional solution in the Washer Disinfector category
Automated Dental Washer Disinfector Dental Medical Glassware Washer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Automated Dental Washer Disinfector Dental Medical Glassware Washer
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Automated Dental Washer Disinfector Dental Medical Glassware Washer fits easily into existing process lines and IT infrastructure.
Areas of application Washer Disinfector
Washer Disinfector solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Automated Dental Washer Disinfector Dental Medical Glassware Washer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Automated Dental Washer Disinfector Dental Medical Glassware Washer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Automated Dental Washer Disinfector Dental Medical Glassware Washer to the cart or contact our manager. We will help integrate Washer Disinfector into existing processes without downtime and unnecessary costs.
