Application:
Applicable to hospital inspection departments, medical laboratories, research institutes, universities, disease control centers, etc.
Features:
1. 7. 0-inch color touch screen, real-time display of sample status.
2. Randomly insert sample positions for testing at any time.
3. Built-in thermal printer, can print dynamic ESR curve.
4. Infrared optical detection and precise measurement, the test results automatically complete temperature compensation, pressure volume compensation, and ESR equation K value.
5. With USB, Type-C interface and host computer supporting software, support uploading test results to LIS/HIS system.
6. Power-off protection function, automatic saving of test results, and sample abnormality alarm and recording function.
7. The base height is adjustable, with a leveling level to ensure accurate detection.
Technical Parameter:
Model | BK-ESR20pro | BK-ESR40pro |
Application | Erythrocyte sedimentation rate analysis |
Measurement Method | Infrared detection |
Analysis Result | Westergren ESR value(mm/hour) |
Throughput | Maximum 40 tests/hour | Maximum 80 tests/hour |
Analysis Channels | 20(load up to 20 samples for analysis at the same time) | 40(load up to 40 samples for analysis at the same time) |
Loading Type | Load samples at any time, measure at any time |
Analysis Time | 30 minutes or 60 minutes selectable |
Sampling Interval | 3 min |
Measurement Range | 0~150mm/h |
Temperature Compensation | The result is automatically corrected to the result at 18°C |
Result Resolution | 1mm/1h and 1mm/2h |
Blood Level Range | 46mm~64mm |
HCT Range | 0.2~1.0 |
Repeatability | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤8%
|
Channel Consistency | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤8% |
Reading Accuracy | ±0.1mm |
Display | 7-inch color LCD touch screen |
Communication Interface | Type-C, USB interface |
Printer | Built-in thermal printer |
Power Supply | AC110~220V, 50/60Hz |
External Size(W*D*H) | 284*355*208mm | 284*355*208mm |
Net Weight | 5.6kg | 6.3kg |
Package Size(W*D*H) | 339*544*249mm | 339*544*249mm |
Gross Weight | 8.7kg | 9.4kg |

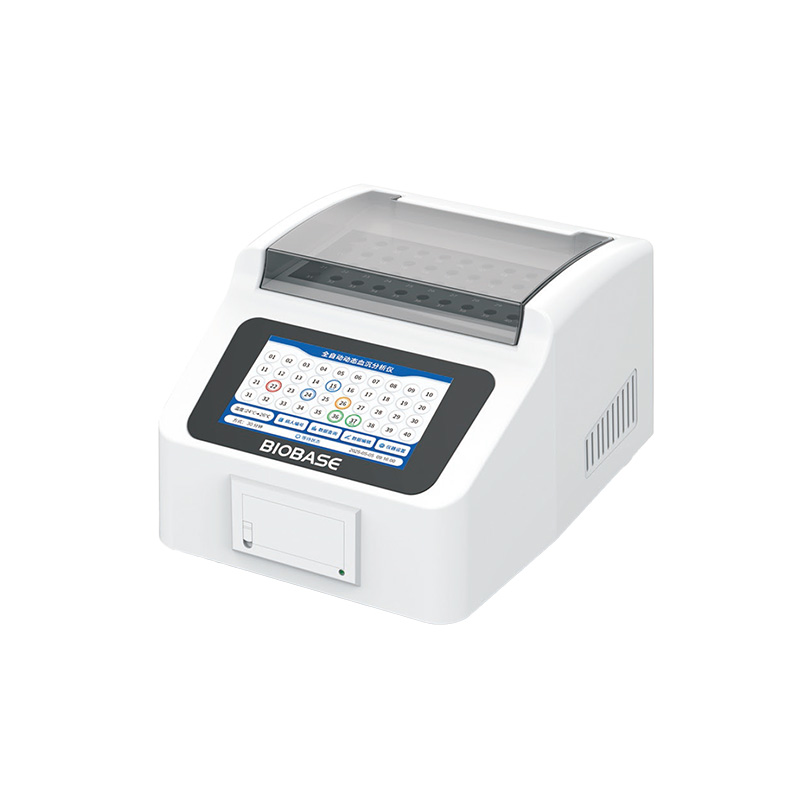

Auto ESR Analyzer BK-ESR20pro BK-ESR40pro — professional solution in the ESR Analyzer category
Auto ESR Analyzer BK-ESR20pro BK-ESR40pro is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Auto ESR Analyzer BK-ESR20pro BK-ESR40pro
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Auto ESR Analyzer BK-ESR20pro BK-ESR40pro fits easily into existing process lines and IT infrastructure.
Areas of application ESR Analyzer
ESR Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Auto ESR Analyzer BK-ESR20pro BK-ESR40pro allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Auto ESR Analyzer BK-ESR20pro BK-ESR40pro you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Auto ESR Analyzer BK-ESR20pro BK-ESR40pro to the cart or contact our manager. We will help integrate ESR Analyzer into existing processes without downtime and unnecessary costs.
