Auto ELISA Processor BIOBASE2001

Features:

1. Adopt the principle of pressure type liquid detection

2. With TIP detection, clot detection function

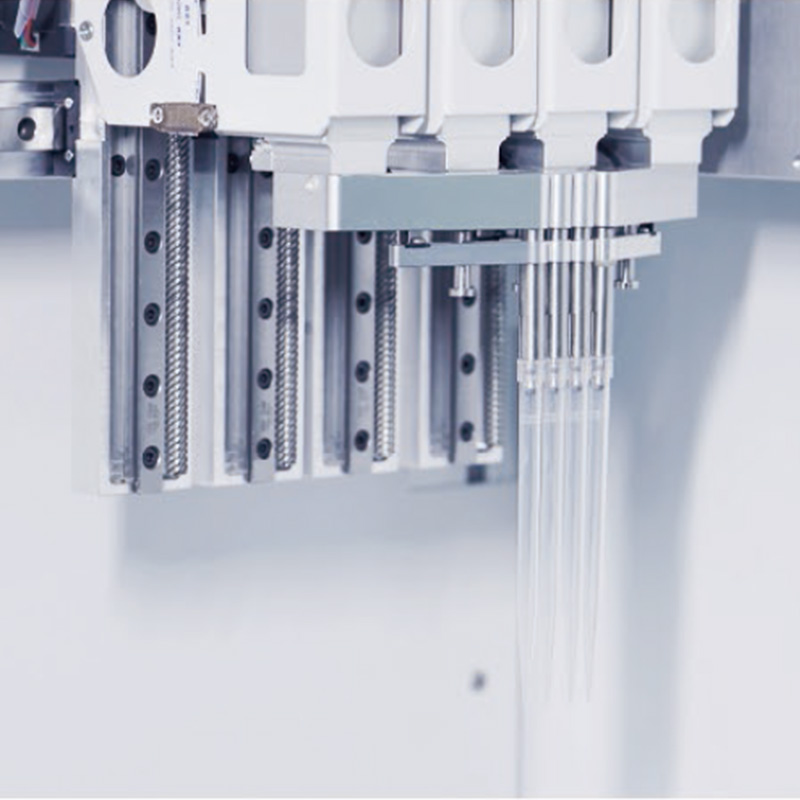

3. High-precision pipetting

4. Position sensing, real-time monitoring of gripper status

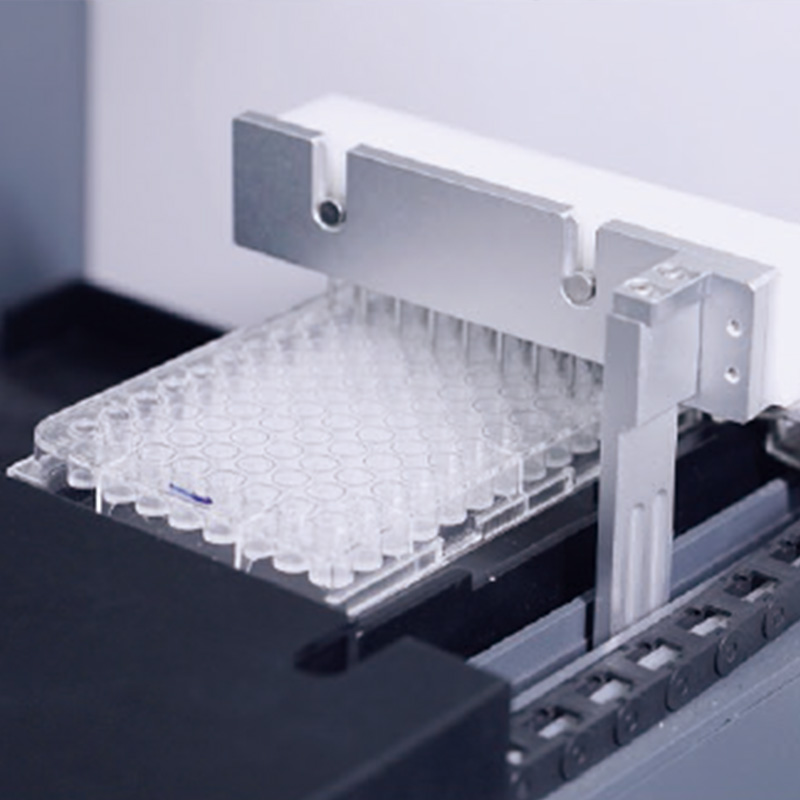

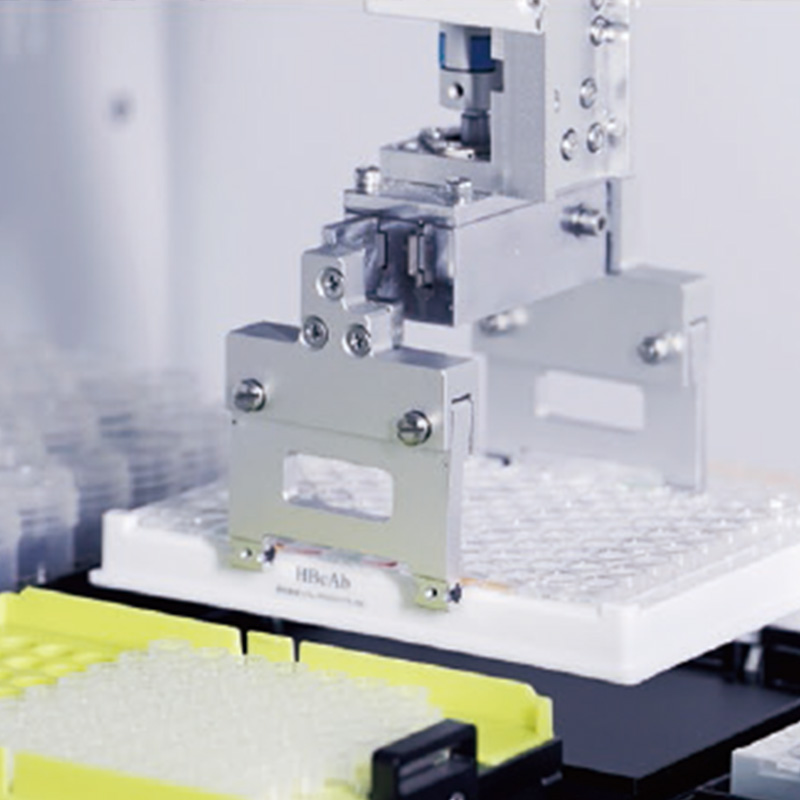

5. Multi-spacing and multi-strength adjustable grippers can be adapted to grasp and place microplates and plate covers of different sizes

6. Dual thread control, can run simultaneously with the sampling arm without interfering with each other

Technical Parameters:

Model	BIOBASE2001
Sample&Reagent Unit	Sample Racks	6*20 push-pull sample rack with detection
	Sample Channel	2 channels
	Liquid Level Detection	Air pressure level detection, clot detection function
	Tip	1000μl, 3 tip racks
	Pipetting	10μl~1000μl
	Pipetting Precision	100μl: CV≤1%, Accuracy≤2.5% 1000μl: CV≤0.5%, Accuracy≤1%
	Reagent Position	4 reagent racks, reagent tanks with detection
Washing Unit	Washer	1 unit
	Washing Head	16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery
	Injection Uniformity	CV<1.5%
	Washing Residual	<1μl
Reading Unit	Reading Channels	8 independent photometric channels
	Linear Range	0.000~3.000Abs
	Repeatability	CV≤1.0%
	Stability	≤±0.003Abs
	Optical Filters	4 standard filters(405, 450, 492, 630nm); Total 10 filters positions
	Reading Accuracy	≤±0.02Abs from 0.0 to 1.0OD ≤±0.03Abs from 1.0 to 2.0OD
	Sensitivity	≥0.01mg/L
	Channel Difference	≤0.02Abs
Incubation Unit	Incubators	8 shaking incubators
	Cover Positions	1(8 covers)
	Heating Method	Dry heating with cover
	Shaking Function	Horizontal circular oscillation, 1-3 levels adjustable, amplitude 2.5mm
	Temperature Range	RT to 60 °C
	Temperature Uniformity	0.5℃
	Temperature Fluctuation	±0.5℃
Data Management	Software	Above Windows 7 system
	LIS System	Bi-direction, support HL7 protocol
	Results	Absorbance and results reviewable by software
	Printer	External optional
	Built-in Scanner	Optional
Other Function	Biosafety Protection	Optional (Negative pressure working zone, HEPA filter)
	Disinfection	UV lamp
	Lighting	LED
	IAP Function	Firmware can be upgraded online at any time
Working Condition	Power Supply	AC220V±10%, 50/60Hz(Standard); 110V±10%, 60Hz( Optional)
	Temperature	10~40℃
	Humidity	30~80%
Size&Weight	External Size(W*D*H)	Machine: 1273*750*1650mm Base Stand: 1273*750*777mm
	Net Weight	Machine: 226kg Base Stand: 98kg
	Package Size(W*D*H)mm	Machine: 1445*920*1130mm Base Stand: 1445*920*1005mm Accessories: 1065*895*510mm
	Gross Weight(kg)	Machine: 300kg Base Stand: 172kg Accessories: 83kg
