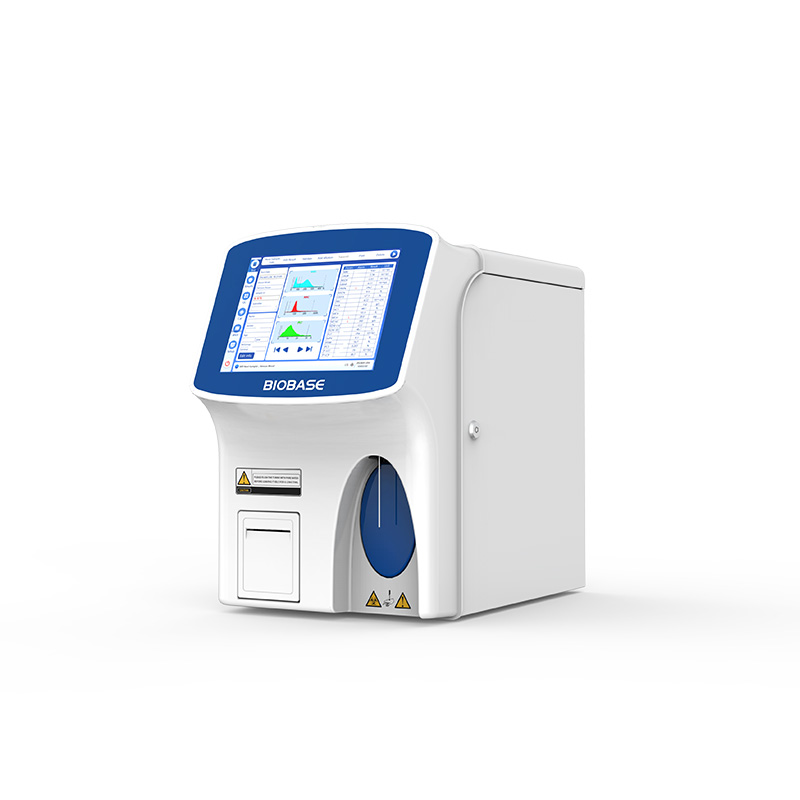

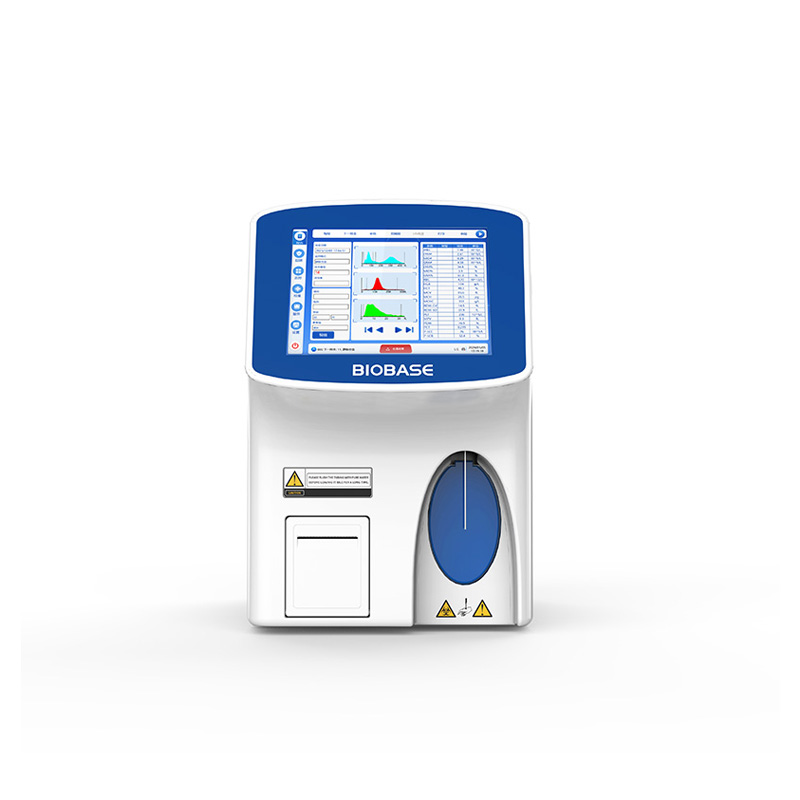

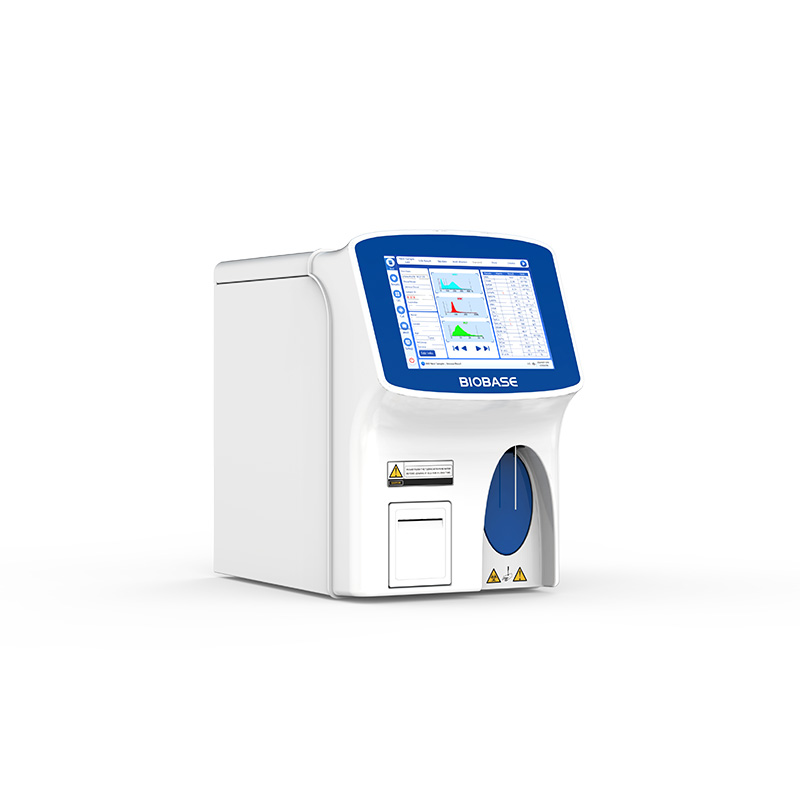

Auto 3-part Hematology Analyzer BH-HA310

Features:

1. 9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on the same screen.

2. Fewer samples are required for testing: venous blood: 10μl, capillary: 10ul, prediluted: 20μl.

3. 60 samples/hour.

4. 21 parameters + 3 histograms.

5. It can be turned on continuously for 24 hours.

6. Automatically clean the sampler, counting pool and pipeline after starting up.

7. Built-in thermal printer, external printer can be connected.

8. Electrical impedance method, cyanide-free detection of HGB.

9. Fully intelligent blockage removal and alarm function.

10. Both automatic calibration and manual calibration are available.

11. Counting Mode: Venous, capilary, prediluted.

12. Support LIS system.

Technical Parameters:

Model	BH-HA310
Throughput	60 samples/hour
Principle	Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB
Channels	2
Parameters	21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC)
Histograms	3 histograms(including WBC, RBC, PLT histograms)
Sample Volume	Venous blood: 10μl, Capillary blood: 10μl, Prediluted: 20μl
Calibration	Manual, auto calibration
Counting Modes	Venous, capilary, prediluted
Printing Model	Auto print, manual print
LIS	Support Bi-directional LIS
Language	Chinese, English, Spanish, French, Russian, Ukrainian
Reagent	Diluent 10L, Hemolytic agent 250ml, Probe cleanser: 50ml
Data Input	9.7-inch touch screen, mouse, keyboard(optional)
Output	Internal printer, support external printer
Printer Paper	57*30mm
Interface	4 USB ports, network port, RS232 serial port
Storage	100,000 results with histogram
Unclog	High voltage burn, reverse high-pressure flush
Work Temperature	10~40°C
Power Supply	100~240AC, 50/60Hz, 150VA
Relative Humidity	≤80%
Atmospheric Pressure	86.0kPa~106.0kPa
Carry-over Rate	Parameter	WBC	RBC	HGB	PLT
	CV	≤1.5%	≤1%	≤1%	≤3%
Background	Parameter	WBC	RBC	HGB	HCT	PLT
	Background	≤0.5*10^9/L	≤0.05*10^12/L	≤2g/L	≤0.5%	≤10*10^9/L
Linearity	Parameter	Measurement Range		CV
	WBC	(1~10.00*10^9)/L (10.10~99.9*10^9)/L		(±0.5*10^9)/L ±5%
	RBC	(0.3~1.00*10^12)/L (1.01~7*10^12)/L		(±0.05*10^12)/L ±5%
	HGB	(20~70g)/L (71~200.0g)/L		(±2.0g)/L ±3%
	PLT	(20~100*10^9)/L (101~999*10^9)/L		(±10.0*10^9)/L ±10%
Precision	Parameter	Repeatability		Measurement Range
	WBC	≤4.0%		(3.5~9.5*10^9)/L
	RBC	≤2.0%		(3.8~5.8*10^12)/L
	HGB	≤2.0%		(115~175)g/L
	PLT	≤8.0%		(125~350*10^9)/L
	HCT	≤3.0%		35%~50%
External Size(W*D*H)	295*505*430mm
Packed Size(W*D*H)	Instrument: 404*564*616mm; Reagent: 340*340*340mm, 200*150*100mm
Net Weight	20kg
Gross Weight	Instrument: 23kg; Reagent: 13kg, 1kg

Auto 3-part Hematology Analyzer BH-HA310 — professional solution in the Hematology Analyzer category

Auto 3-part Hematology Analyzer BH-HA310 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Auto 3-part Hematology Analyzer BH-HA310

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Auto 3-part Hematology Analyzer BH-HA310 fits easily into existing process lines and IT infrastructure.

Areas of application Hematology Analyzer

Hematology Analyzer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Auto 3-part Hematology Analyzer BH-HA310 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Auto 3-part Hematology Analyzer BH-HA310 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
