Features:
1. Integrated scanning-probe and sample-stage enhances the anti-interference ability of the spring suspension system.
2. Precision laser and probe positioning device makes probe changing and spot adjusting simple and convenient.
3. The sample-to-probe auto-approaching provides an efficient way to prevent cantilever crash.
4. The vertical sample probe approaching allows achieving precise positioning of area of interest.
5. Sample scanning area of interest may be freely selected with an high-precision/wide-range XY table.
6. Top-view CCD system warrants real-time observation and positioning of the probe on the selected sample region.
7. Modular design of electronic control system facilitates maintenance and continuous improvements.
8. The compact model 2000 may be easily transported inside an aluminum luggage.

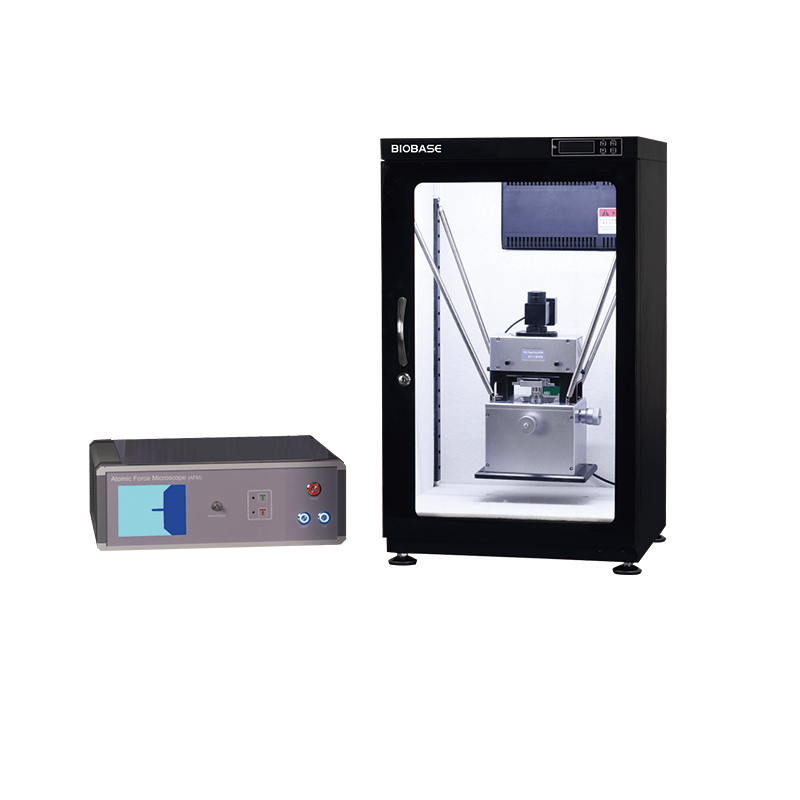

9. The hermetic box in model 1000 provides a controlled environment.
Technical Parameters:
| Model | BK-AFM1000 |
Working Modes | Contact mode and lapping mode Optional modes: Phase, Friction(LFM), Magnetic(MFM), Electrostatic(EFM) |
Sample Size | Ф≤90mm, H≤20mm |
Scanners Available | 10*10μm, 20*20μm, 50*50μm, 100*100μm |
Scanning Resolution | 0.2nm in XY direction, 0.05nm in Z direction |
Range of Sample Movement | ±6.5mm |
Step-motor Pulse Width | 10±2ms |
Image Sampling Points | 512*512 |
Optical Magnification 4X | Optical resolution 2.5μm |
Scan Rate 0.6Hz~4.34Hz | Scan angle 0°~360° |
Scanning Control | 18-bit D/A in XY direction, 16-bit D/A in Z direction |
Data Sampling | 14-bit A/D, double 16-bit A/D multi-channel synchronous sampling |
Feedback | DSP digital feedback |
Feedback Sampling Rate | 64kHz |
Computer interface | USB 2.0 |
Operating System | Windows XP/7/8/10 |
Supply Power | AC220V, 50/60Hz; 110V, 50/60Hz(optional) |
Package Size | 550*550*1150mm |
Gross Weight | 65kg |
Atomic Force Microscopy — professional solution in the Microscope category
Atomic Force Microscopy is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why Atomic Force Microscopy
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: Atomic Force Microscopy fits easily into existing process lines and IT infrastructure.
Areas of application Microscope
Microscope solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Atomic Force Microscopy allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with Atomic Force Microscopy you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add Atomic Force Microscopy to the cart or contact our manager. We will help integrate Microscope into existing processes without downtime and unnecessary costs.
