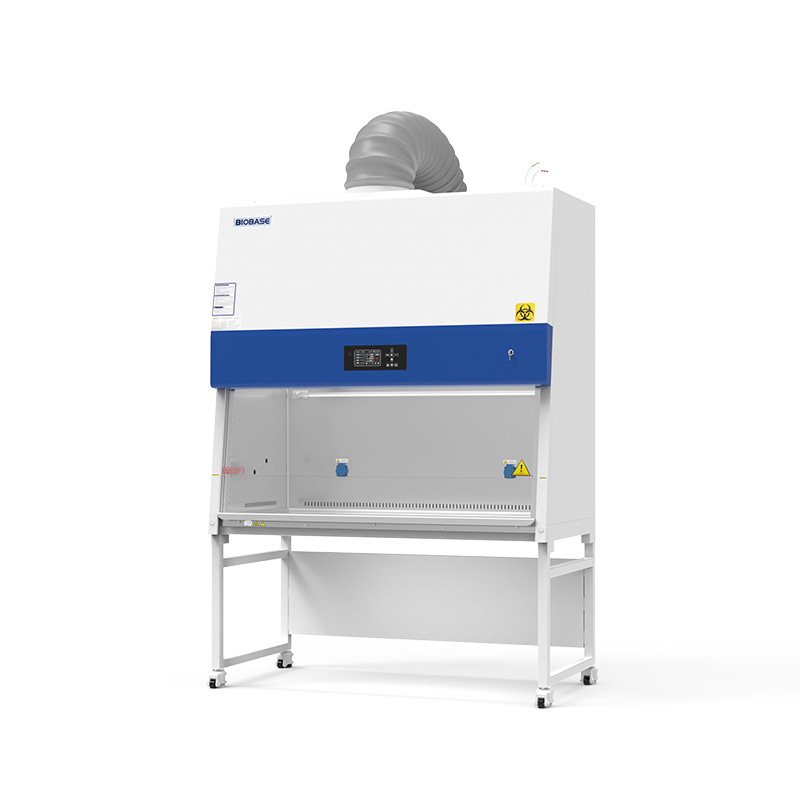

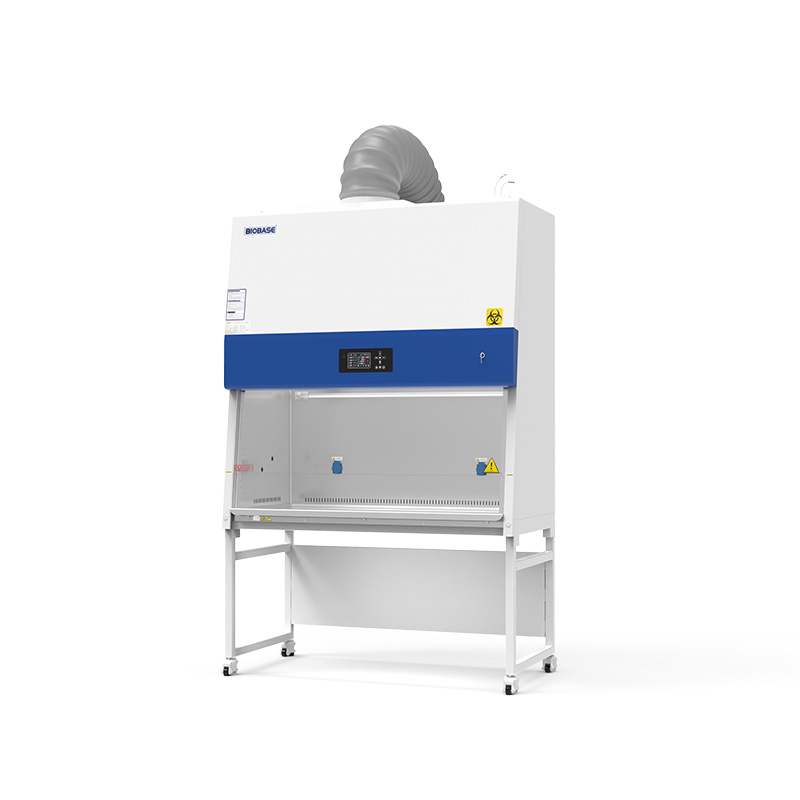

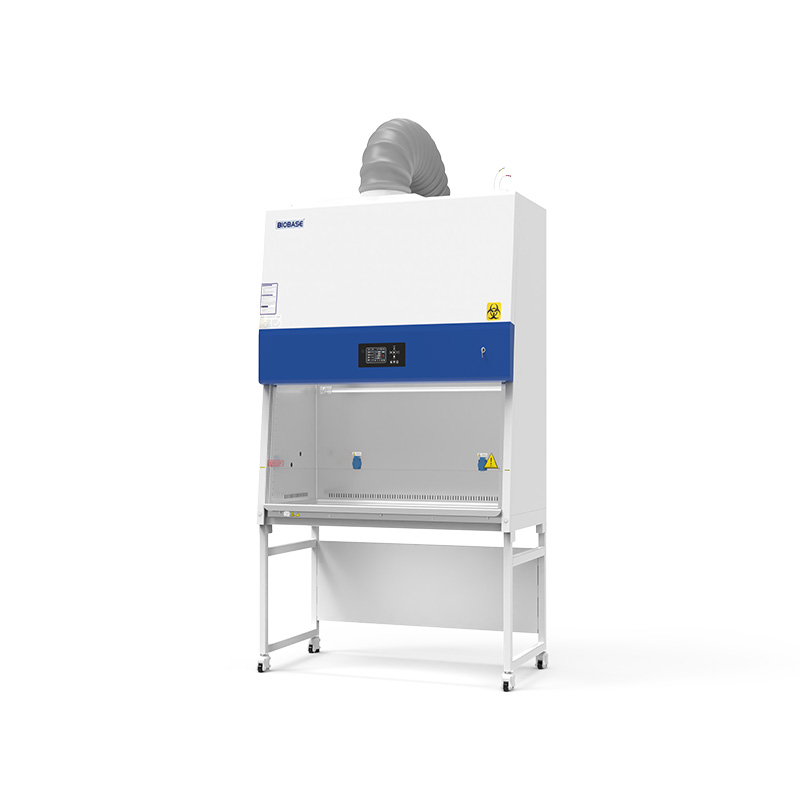

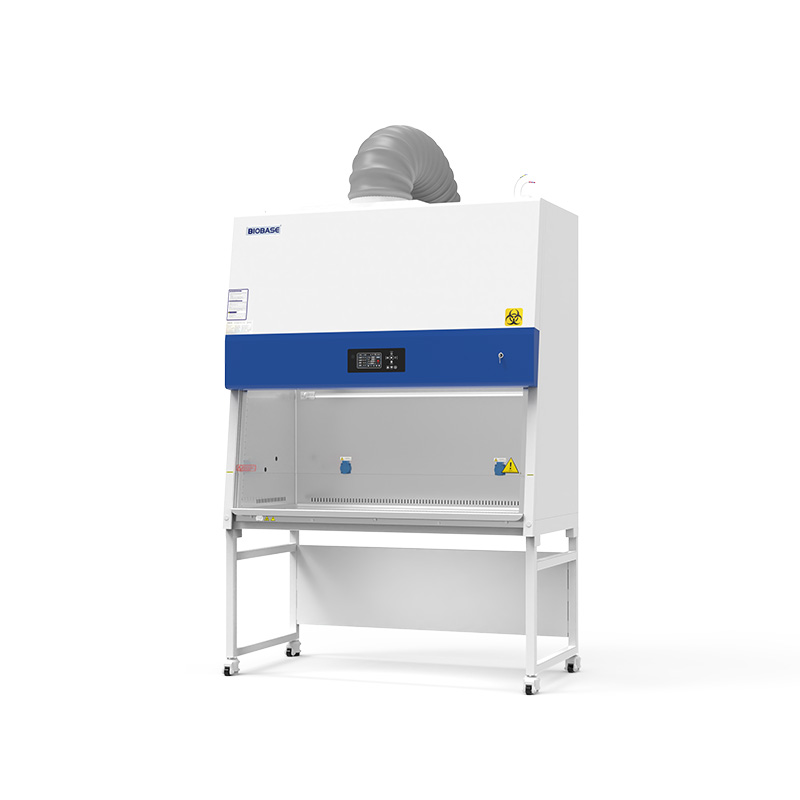

AC Series Class II B2 Biological Safety Cabinet BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X

Features:
1. Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing.

2. Automatically adjust the wind speed.

3. With power-failure memory function, the state before power-failure will be restored after power-on, and there will be visual prompts and alarms.

4. The integrated design of the operation area makes it easy to disassemble and clean.

5. The cabinet is separated from the base. The height of the adjustable base can be customized.

6. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window.

7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.

8. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.

9. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product.

10. The front window glass has a one-key lift function.

11. The cabinet is designed with a 10° inclination angle, which is in line with ergonomic principles, with a larger viewing angle, convenient operation and more humanization.
12. The one-piece hand rest has a large fat surface, which has a larger contact area with the arm and is more comfortable.



Technical Parameters:

Model		BSC-1100IIB2-X	BSC-1300IIB2-X	BSC-1500IIB2-X	BSC-1800IIB2-X
External Size(W*D*H)		1100*775*2250mm	1300*775*2250mm	1500*775*2250mm	1800*775*2250mm
Internal Size(W*D*H)		940*600*660mm	1150*600*660mm	1350*600*660mm	1625*600*660mm
Tested Opening		Safety height 200mm(8")
Max Opening		480mm
Inflow Velocity		0.53±0.025m/s
Downflow Velocity		0.33±0.025m/s
ULPA Filter		Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window		Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
Noise		≤65dB
UV Lamp		30W*1	30W*1	40W*1	40W*1
		UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination
LED Lamp		12W*2	14W*2	16W*2	16W*2
Illumination		≥1000Lux
Consumption		1300W	1300W	1300W	1300W
Waterproof Socket		Two, total load of two sockets: 500W
Display		LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System		Microprocessor
Airflow System		0% air recirculation, 100% air exhaust
Visual and Audio Alarm		Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure
Material		Work Zone: 304 stainless steel
		Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height		770mm(can be customized)			800mm(Can be customized)
Caster		Footmaster caster
Power Supply		AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory		LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct
Optional Accessory		Water and gas tap, Electric height adjustable base stand, Armrest
Gross Weight		243kg; 52kg	282kg; 64kg	300kg; 64kg	408kg; 64kg
Package	Main Body Exhaust Blower(W*D*H)	1230*990*1840mm	1430*990*1840mm	1630*990*1840mm	1930*990*1840mm
		930*800*700mm	930*860*740mm	930*860*740mm	930*860*740mm
