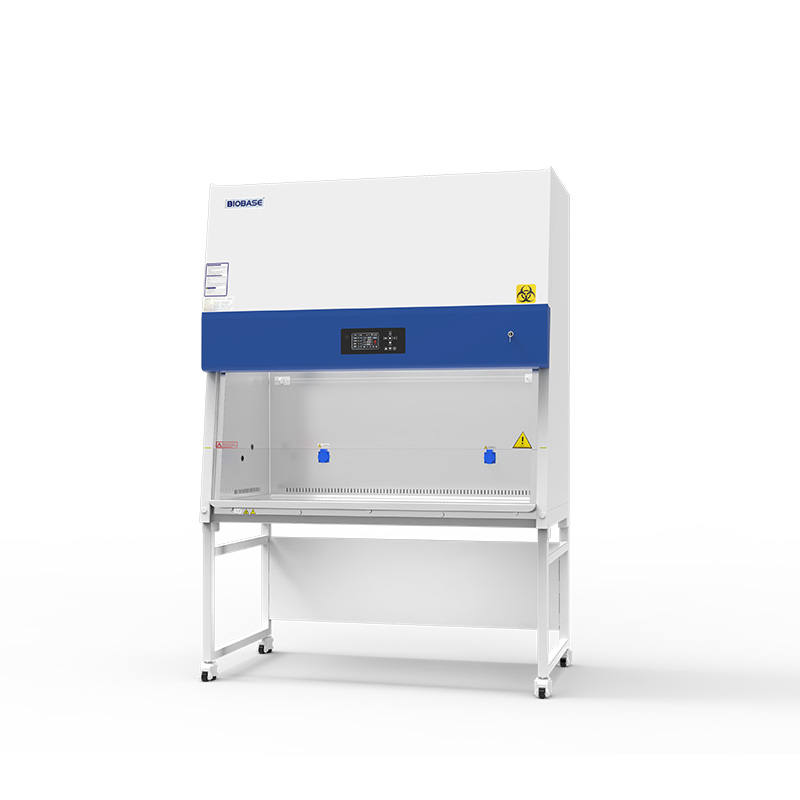

AC Series Class II A2 Biological Safety Cabinet

Features:

1. Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing.

2. Automatically adjust the wind speed.

3. With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms.

4. The integrated design of the operation area makes it easy to disassemble and clean.

5. The cabinet is separated from the base. The height of the adjustable base can be customized.

6. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window.

7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.

8. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.

9. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product.

10. The front window glass has a one-key lift function

11. The cabinet is designed with a 10° inclination angle, which is in line with ergonomic principles, with a larger viewing angle, convenient operation and more humanization.

12. The one-piece hand rest has a large flat surface, which has a larger contact area with the arm and is more comfortable.



Technical Parameters:

Model	BSC-1100IIA2-X	BSC-1300IIA2-X	BSC-1500IIA2-X	BSC-1800IIA2-X	BSC-2000IIA2-X
External Size(W*D*H)	1100*755*2200mm	1300*755*2200mm	1500*755*2200mm	1800*755*2200mm	1950*775*2200mm
Internal Size(W*D*H)	940*600*660mm	1150*600*660mm	1350*600*660mm	1625*600*660mm	1800*600*660mm
Tested Opening	Safety height 200mm(8")
Max Opening	480mm
Inflow Velocity	0.53±0.025m/s
Downflow Velocity	0.33±0.025m/s
ULPA Filter	Two, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window	Motorized. Two-layer laminated toughened glass≥6mm. Anti UV
Noise	≤65dB
UV Lamp	30W*1	30W*1	40W*1	40W*1	40W*1
	UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp	12W*2	14W*2	16W*2	16W*2	12W*4
Illumination	≥1000Lux
Consumption	600W	800W	1300W	1300W	1700W
Waterproof Socket	Two, total load of two sockets: 500W
Display	LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70% air recirculation, 30% air exhaust
Visual and Audio Alarm	Abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm, abnormal power failure
Material	Work Zone: 304 stainless steel
	Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	770mm(Can be customized)			800mm(Can be customized)
Caster	Footmaster caster
Power Supply	AC220V, 50/60Hz; 110V, 60Hz
Standard Accessory	LED lamp 2pcs(except for BSC-2000IIA2-X 4pcs), UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs
Optional Accessory	Water and gas tap, Electric height adjustable base stand, Armrest
Gross Weight	220kg	280kg	316kg	366kg	420kg
Package Size(W*D*H)	1230*990*1840mm	1430*990*1840mm	1630*990*1840mm	1930*990*1840mm	2080*990*1840mm







AC Series Class II A2 Biological Safety Cabinet — professional solution in the Biological Safety Cabinet category

AC Series Class II A2 Biological Safety Cabinet is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why AC Series Class II A2 Biological Safety Cabinet

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: AC Series Class II A2 Biological Safety Cabinet fits easily into existing process lines and IT infrastructure.

Areas of application Biological Safety Cabinet

Biological Safety Cabinet solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing AC Series Class II A2 Biological Safety Cabinet allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with AC Series Class II A2 Biological Safety Cabinet you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
