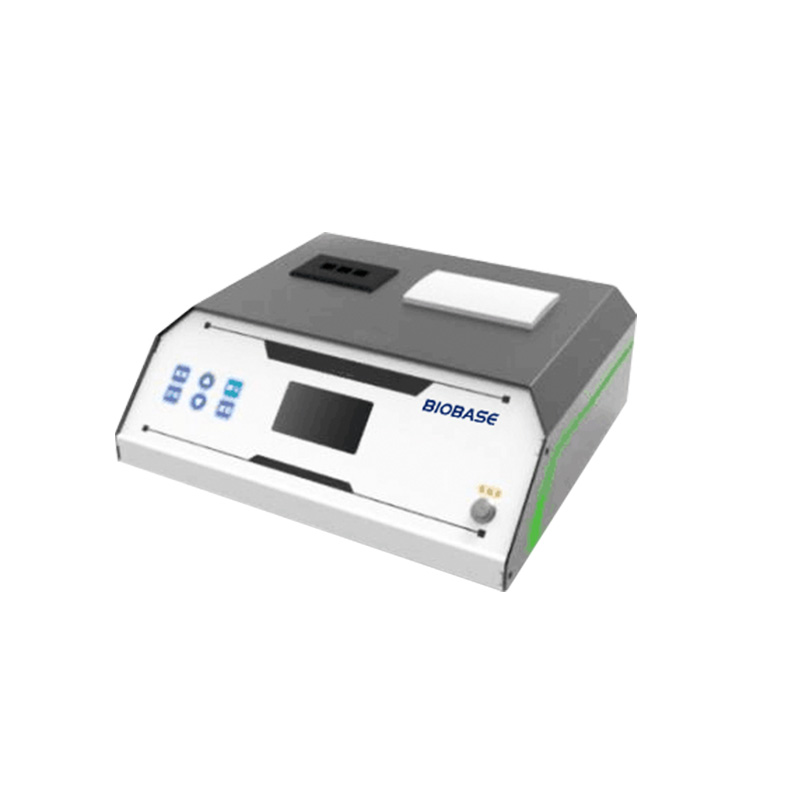

Soil Nutrient Tester

Feature:

1. Microcomputer control, digital circuit, programming design, LCD, AC and DC dual-purpose

2. Resolution: 0.001, touch key, built-in high-grade thermal printer, printing test results.

3. It can detect the contents of various elements such as chemical fertilizer, organic fertilizer (including foliar fertilizer, water-soluble fertilizer, spraying fertilizer, etc.), available nitrogen, available phosphorus, available potassium, total nitrogen, total phosphorus, total potassium, organic matter, pH, calcium, magnesium, sulfur, iron, manganese, boron, zinc, copper, chlorine, silicon, and various heavy metals such as lead, chromium, cadmium, mercury, arsenic, etc.

4. Stable light source, good reproducibility and high accuracy.

5. Water quality test: pH, calcium, magnesium, sulfur, iron, manganese, boron, zinc, copper, chlorine, silicon, etc.

6. The test results can be transmitted to the computer in real time for long-term storage and data analysis.



Technical Parameter:

Model	BK-Y6AG
Function	Simultaneous extraction and determination of three nutrients of quick effect n, P and K in soil at one time, and scientific recommendation of fertilization amount
Range and Resolution	0.001-9999
Repeatability Error	≤ 0.05% (0.001, potassium dichromate solution)
Stability	Drift less than 0.1% (0.001, transmittance measurement) within 30 minutes.
Linear Error	≤ 0.2% (0.002, copper sulfate detection)
Sensitivity	Red light ≥ 4.5 × 10-5, Blue light ≥ 3.17 × 10-3, Green light ≥2.35 × 10-3, Orange light ≥ 2.13 × 10-3
Wavelength Range	Red: 680 ± 2nm; blue: 420 ± 2nm; green: 510 ± 2nm; Orange: 590 ± 4nm
PH Value (PH)	Test range: 1~14; Accuracy: 0.01 (3) error: ± 0.1 (Extended)
Salt Content (conductivity)	Test range: 0.01%~1.00%; Relative error: ±5% (Extended)
Soil Moisture	Moisture unit: % (g/100g); Moisture content test range: 0-100%; Error less than 0.5%
Test Speed	Test one soil sample (n, P, K) ≤ 30 minutes (including pretreatment time); Simultaneously measure 8 soil samples ≤ 1 hour (including pretreatment time)
Data Printing	Built in high-grade one button thermal printer
Power Supply	AC 220 ± 22V, 50/60Hz (Built-in lithium battery of the instrument can be used)
Package Size(L*W*H) mm	550*250*370+550*410*290
Gross Weight (kg)	13.6



Soil Nutrient Tester — professional solution in the Soil Testing Instrument category

Soil Nutrient Tester is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why Soil Nutrient Tester

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: Soil Nutrient Tester fits easily into existing process lines and IT infrastructure.

Areas of application Soil Testing Instrument

Soil Testing Instrument solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing Soil Nutrient Tester allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with Soil Nutrient Tester you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
