Technical Parameters:
Model | BDF-86V168T | BDF-86V348T |
Capacity | 168L | 348L |
Temp. Range | -40~-86℃ |
Temp. Accuracy | 0.1℃ |
Temp. Uniformity | ±4℃ |
Temp. Stability | ≤6℃ |
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | ≤30min |
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | ≤7h |
Control System | Microprocessor control |
Display | LCD |
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) |
Refrigeration Type | Direct-cooling |
Refrigerant | R290/R170, 265g | R290/R170, 308g |
Compressor | International famous brand compressor/2 |
Condenser&Evaporator | Built-in coil type, copper pipe, copper tube and aluminum fin |
Defrost | Manual defrost |
Construction | Polyurethane cyclopentane foam |
Material | Internal Material | SUS304 stainless steel |
External Material | Sprayed steel plate |
Door | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 |
Consumption | 830W Apparent power: 1386VA | 915W Apparent power: 1386VA |
Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
Casters | Yes |
Shelf | 2 | 3 |
Standard Accessory | Test port*2, USB interface, RS485 interface |
Optional Accessory | Liquid nitrogen backup system, temperature recorder |
Internal Size(W*D*H) | 465*455*820mm | 490*612*1150mm |
External Size(W*D*H) | 844*807*1594mm | 869*989*1924mm |
Package Size(W*D*H) | 1000*970*1790mm | 1020*1180*2130mm |
Net Weight | 196kg | 264kg |
Gross Weight | 253kg | 332kg |

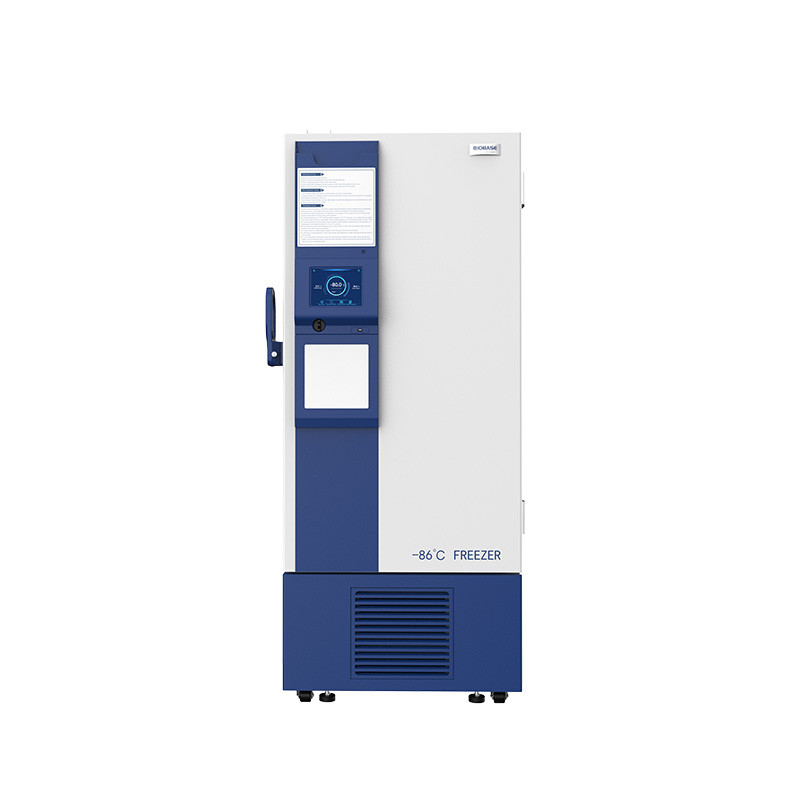

-86°C Freezer BDF-86V168T BDF-86V348T — professional solution in the -86℃ Ultra-low Temperature Freezer category
-86°C Freezer BDF-86V168T BDF-86V348T is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why -86°C Freezer BDF-86V168T BDF-86V348T
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: -86°C Freezer BDF-86V168T BDF-86V348T fits easily into existing process lines and IT infrastructure.
Areas of application -86℃ Ultra-low Temperature Freezer
-86℃ Ultra-low Temperature Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -86°C Freezer BDF-86V168T BDF-86V348T allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with -86°C Freezer BDF-86V168T BDF-86V348T you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add -86°C Freezer BDF-86V168T BDF-86V348T to the cart or contact our manager. We will help integrate -86℃ Ultra-low Temperature Freezer into existing processes without downtime and unnecessary costs.
