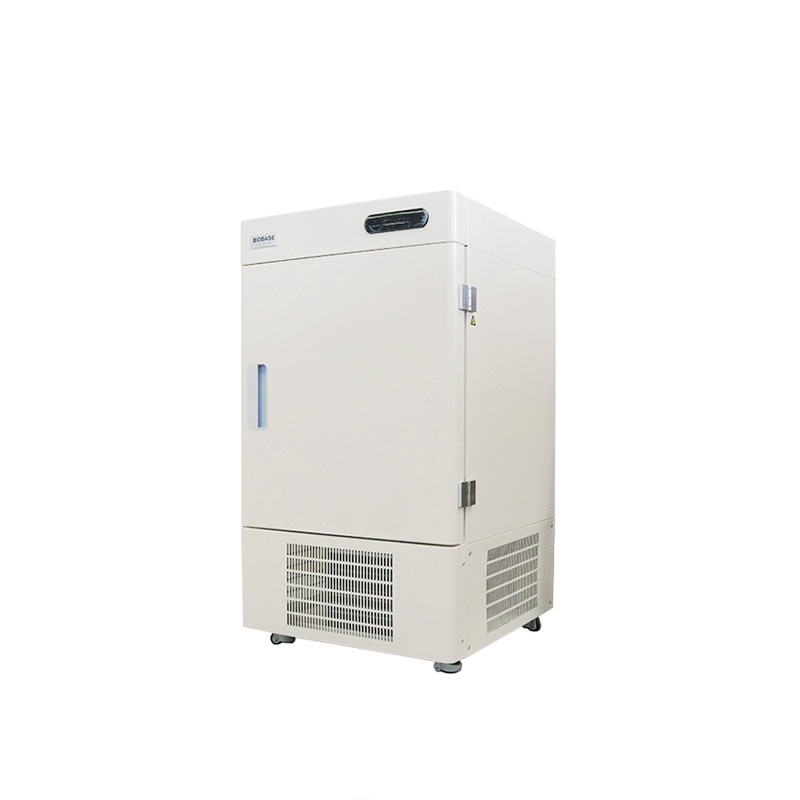

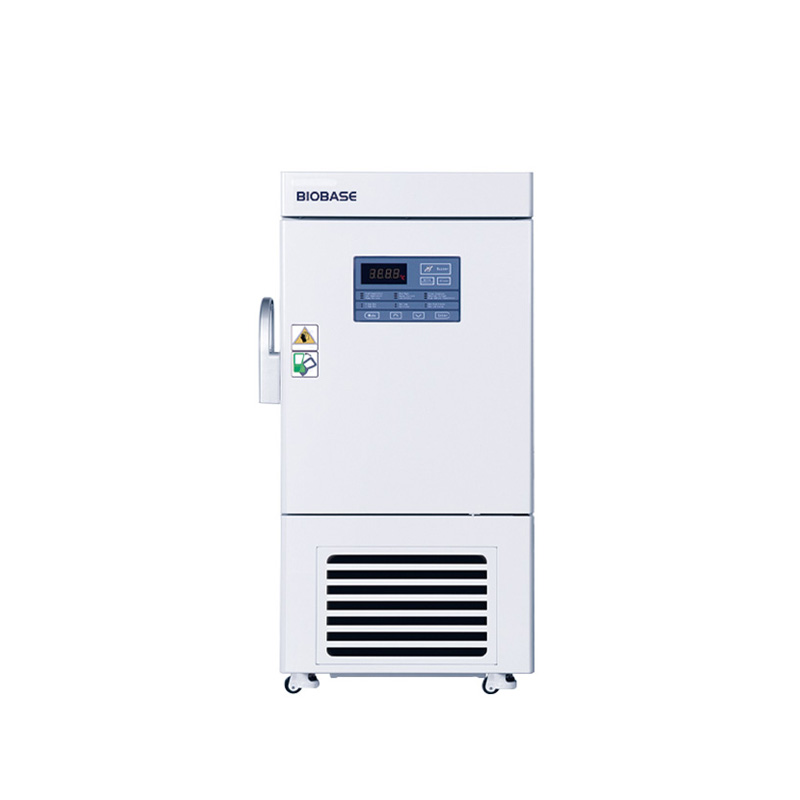

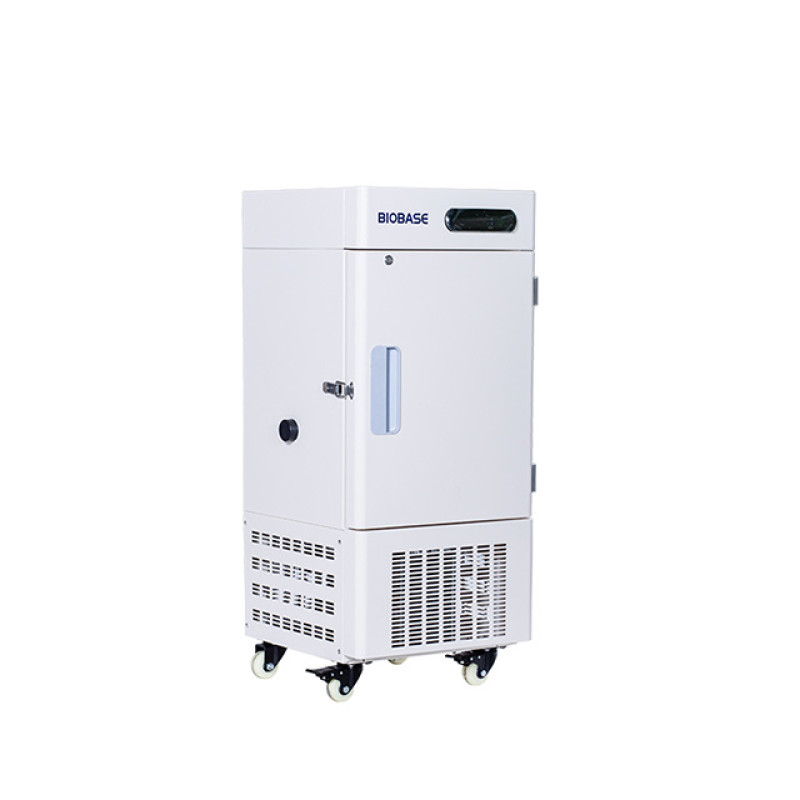

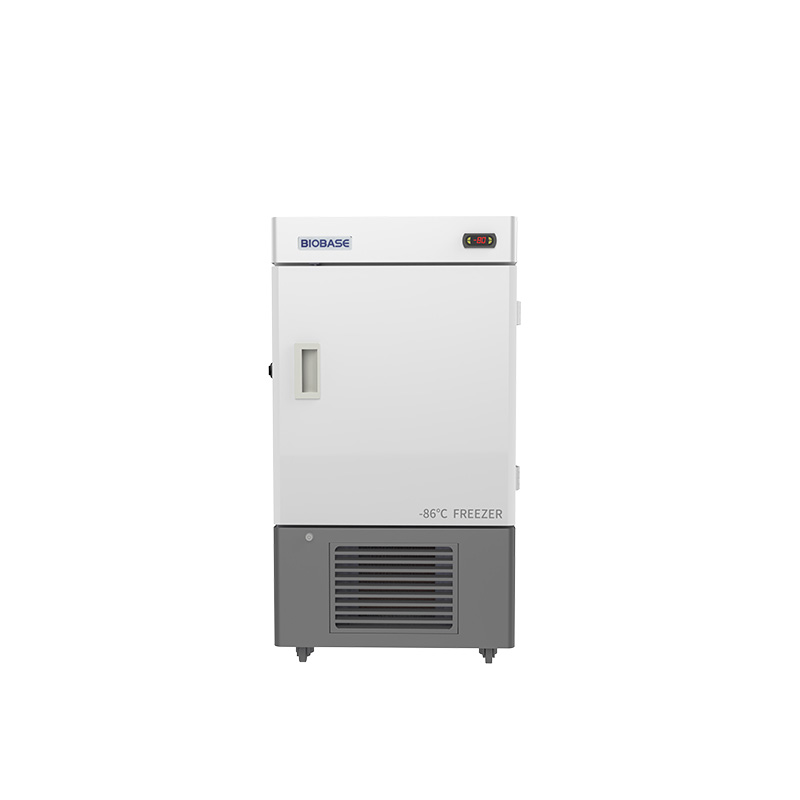

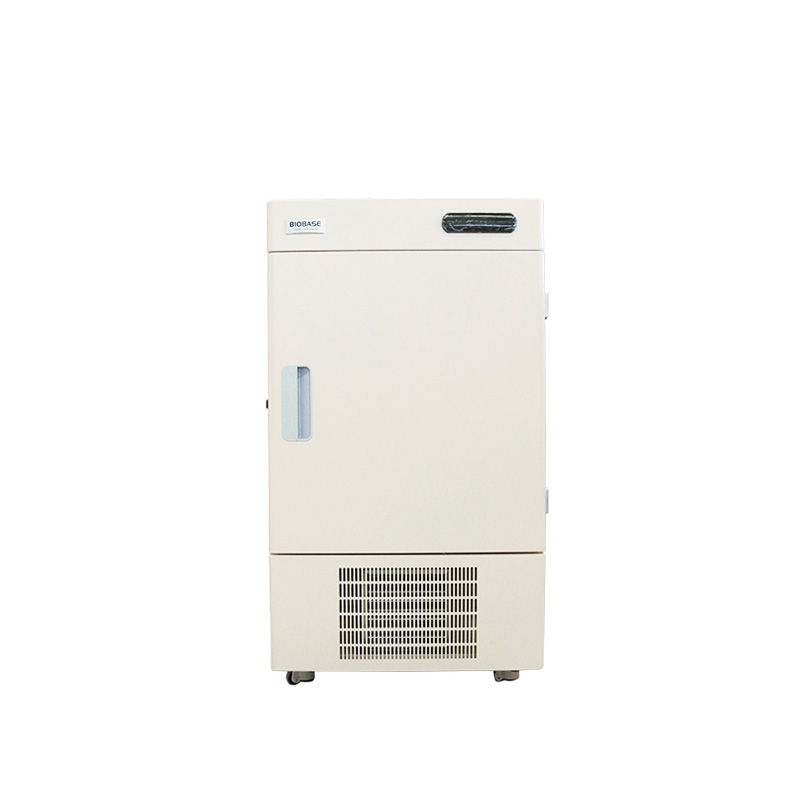

-86°C Freezer 28L 50L 58L 108L

Technical Parameters:

Model		BDF-86V28	BDF-86V58			BDF-86V65	BDF-86V108
Capacity		28L	58L			65L	108L
Temp. Range		-40~-86℃
Temp. Accuracy		0.1℃
Temp. Uniformity		±3℃	±4℃				±3℃
Temp. Stability		≤6℃
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃)		20min	25min			≤15min	20min
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃)		120min	160min			≤240min	120min
Control System		Microprocessor control
Display		LED
Alarm		High and low temperature alarm, sensor failure alarm	High and low temperature alarm, sensor fault alarm, power off alarm, door opening alarm, ring temperature alarm, condenser fault alarm, filter check alarm, abnormal voltage alarm, low battery power alarm			High and low temperature alarm, thermostat fault alarm, door switch alarm,  power failure  alarm(72h)	High and low temperature alarm, sensor failure alarm
Refrigeration Type		Direct-cooling
Refrigerant		R404A/R23, 140g	R600a/R290/R14/R728, 155g			R600a/R1150/R14, 147g		R404A/R23, 190g
Compressor		International famous brand compressor/1
Condenser&Evaporator		Copper tube finned type; built-in coil type	Copper tube evaporator; finned condenser			Micro channel condenser; built-in coil type	Copper tube finned type; built-in coil type
Defrost		Manual defrost
Construction		Polyurethane cyclopentane foam
Material	Internal Material	304 stainless steel
	External Material	Sprayed steel plate
Door		Outer door: cyclopentane monomer foam outer door*1 Interior door: stainless steel door*1	Outer door: sprayed steel plate door*1 Interior door: stainless steel door*2			Outer door: cyclopentane monomer foam outer door*1 Interior door: cyclopentane monolithic foaming, stainless steel door*1	Outer door: cyclopentane monomer foam outer door*1 Interior door: stainless steel door*2
Consumption		400W	442W			540W Apparent power: 550VA	480W
Power Supply		AC220V, 50Hz(Standard);  220V, 60Hz; 110V, 50/60Hz(Optional)				AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)	AC220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional)
Casters		Yes
Shelf		1
Standard Accessory		Test hole			Remote alarm function interface, test hole, USB interface	Test hole
Optional Accessory		Temperature recorder		Temperature recorder, RS485, liquid nitrogen backup system		USB interface, RS485, temperature recorder, liquid nitrogen backup system	Temperature recorder
Internal Size(W*D*H)		270*265*400mm	330*453*410mm			360*455*395mm	460*460*510mm
External Size(W*D*H)		505*520*1165mm	635*757*1212mm			660*715*1165mm	700*730*1260mm
Package Size(W*D*H)		Plywood: 535*575*1290mm Honeycomb carton: 595*640*1335mm	730*860*1420mm			765*825*1350mm	Plywood: 765*815*1395mm Honeycomb carton: 790*850*1430mm
Net Weight		71kg	112kg			92kg	107kg
Gross Weight		90kg	146kg			134kg	133kg

-86°C Freezer 28L 50L 58L 108L — professional solution in the -86℃ Ultra-low Temperature Freezer category

-86°C Freezer 28L 50L 58L 108L is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why -86°C Freezer 28L 50L 58L 108L

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: -86°C Freezer 28L 50L 58L 108L fits easily into existing process lines and IT infrastructure.

Areas of application -86℃ Ultra-low Temperature Freezer

-86℃ Ultra-low Temperature Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -86°C Freezer 28L 50L 58L 108L allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with -86°C Freezer 28L 50L 58L 108L you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
