Technical Parameters:
Model | BDF-86V588 | BDF-86V728 | BDF-86V838 |
Capacity | 588L | 728L | 838L |
Temp. Range | -40~-86℃ |
Temp. Accuracy | 0.1℃ |
Temp. Uniformity | ≤4℃ |
Temp. Stability | ≤6℃ | ≤7℃ |
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | 48min | 57min | 40min |
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | 302min | 410min | 245min |
Control System | Microprocessor control |
Display | LCD touch screen | LCD screen |
Alarm | Audible and visual alarm, high and low temperature alarm, sensor fault alarm, condenser dirty blocked alarm, abnormal ring temperature alarm, abnormal voltage alarm, power off alarm, door opening alarm, low battery alarm, remote alarm interface, all alarm information and history can be queried on the LCD screen |
Refrigeration Type | Direct-cooling |
Refrigerant | R290, 130g; R170, 68g | R290, 140g; R170, 78g |
Compressor | Imported brand SECOP compressor/2 |
Condenser&Evaporator | Copper tube finned type, copper coil type |
Defrost | Manual defrost |
Construction | High density polyurethane foam, CFC free |
Material | Internal Material | 304 stainless steel |
External Material | Sprayed steel plate |
Door | Outer door: sprayed steel plate door*1 Inner door: 304 stainless steel door*2 |
Consumption | 690W | 710W | 1700W |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional, external transformer) |
Casters | Yes |
Shelf | 3 |
Standard Accessory | Remote alarm interface, USB interface, test port, handwriting drawing board function, A4 paper slot function, automatic air pressure balance hole |
Optional Accessory | Temperature recorder, disc recorder, liquid nitrogen backup system | Liquid nitrogen backup system, temperature recorder |
Internal Size(W*D*H) | 606*738*1310mm | 963*571*1350mm | 894*718*1310mm |
External Size(W*D*H) | 891*1155*1994.5mm | 1248*975*1994.5mm | 1160*1172*1994.5mm |
Package Size(W*D*H) | 1330*1010*2200mm | 1330*1010*2200mm | 1275*1170*2200mm |
Net Weight | 335kg | 380kg | 391kg |
Gross Weight | 400kg | 400kg | 424kg |

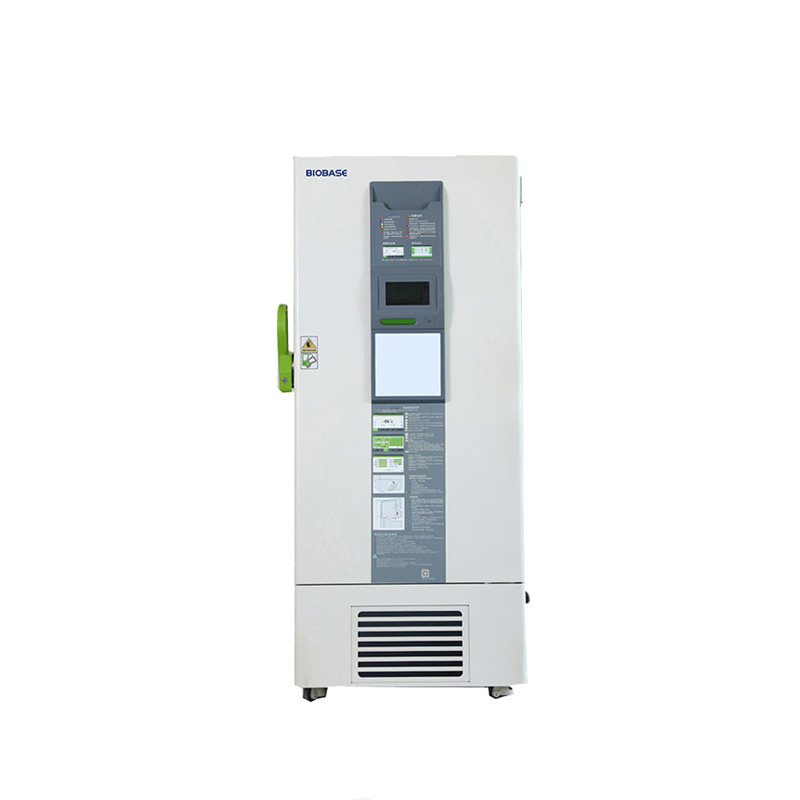

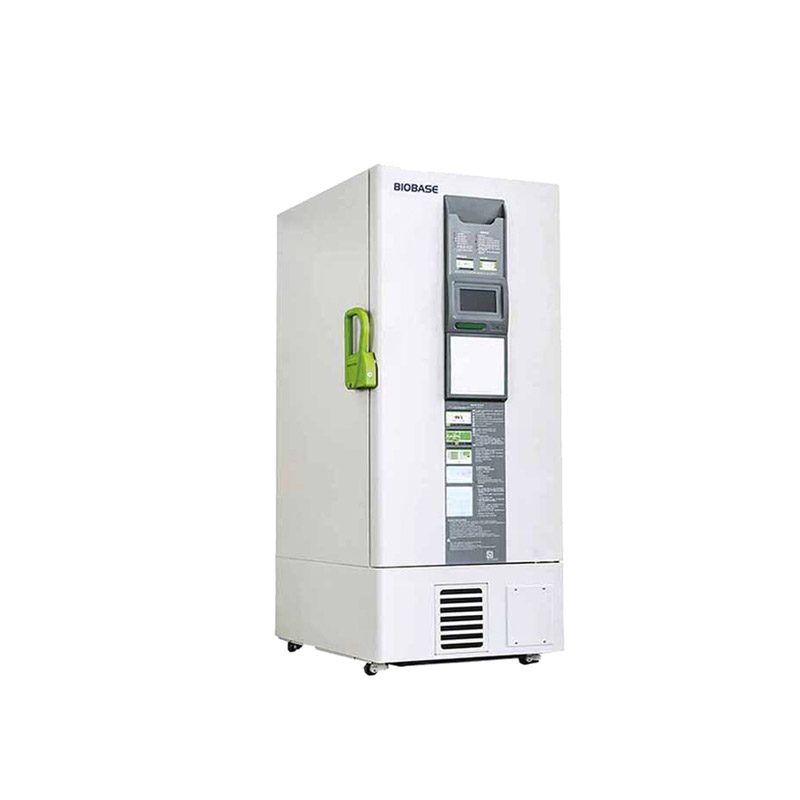

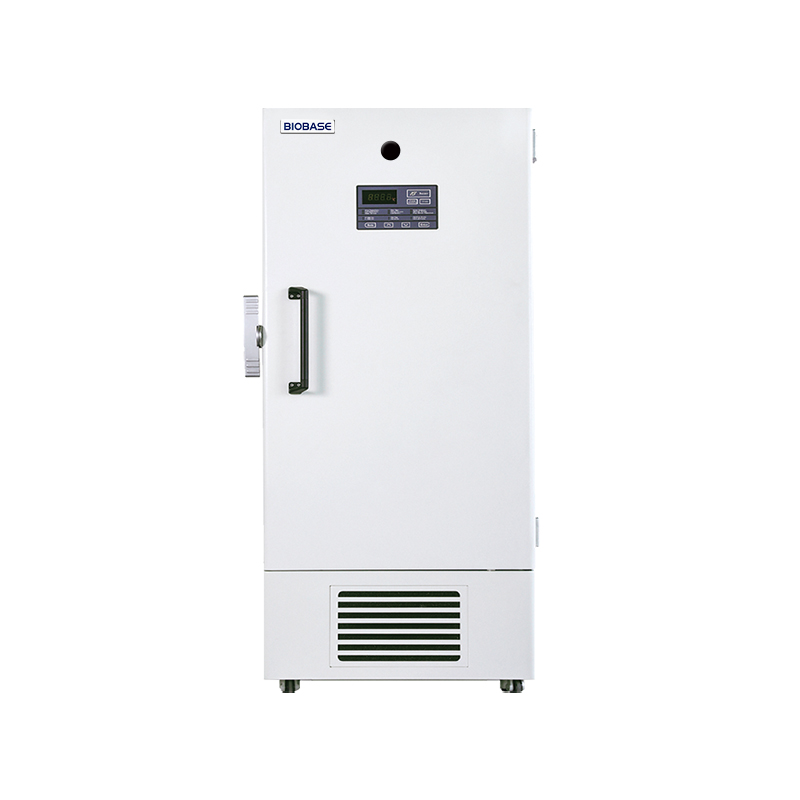

-86℃ Ultra-low Temperature Freezer BDF-86V588 BDF-86V728 BDF-86V838 — professional solution in the -86℃ Ultra-low Temperature Freezer category
-86℃ Ultra-low Temperature Freezer BDF-86V588 BDF-86V728 BDF-86V838 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why -86℃ Ultra-low Temperature Freezer BDF-86V588 BDF-86V728 BDF-86V838
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: -86℃ Ultra-low Temperature Freezer BDF-86V588 BDF-86V728 BDF-86V838 fits easily into existing process lines and IT infrastructure.
Areas of application -86℃ Ultra-low Temperature Freezer
-86℃ Ultra-low Temperature Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -86℃ Ultra-low Temperature Freezer BDF-86V588 BDF-86V728 BDF-86V838 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with -86℃ Ultra-low Temperature Freezer BDF-86V588 BDF-86V728 BDF-86V838 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add -86℃ Ultra-low Temperature Freezer BDF-86V588 BDF-86V728 BDF-86V838 to the cart or contact our manager. We will help integrate -86℃ Ultra-low Temperature Freezer into existing processes without downtime and unnecessary costs.
