Technical Parameters:
Model | BDF-86V100 |
Capacity | 90L |
Temp. Range | -40~-86℃ |
Temp. Accuracy | 0.1℃ |
Temp. Uniformity | ≤5℃ |
Temp. Stability | ≤6℃ |
Control System | Microprocessor control |
Display | LCD touch screen |
Alarm | High and low temperature alarm, condenser overheating alarm, power failure alarm, sensor fault alarm, ambient temperature alarm |
Refrigeration Type | Direct-cooling |
Refrigerant | Hydrocarbon mixture refrigerant |
Compressor | International famous brand compressor/1 |
Condenser&Evaporator | Copper tube aluminum fin type condenser; copper coil type evaporator |
Defrost | Manual defrost |
Construction | Polyurethane foam layer+vacuum insulation board |
Material
| Internal Material | Galvanized steel powder spraying |
External Material | Galvanized steel powder spraying |
Door | Outer door*1, inner door*2 |
Consumption | 460W |
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional) |
Casters | No |
Shelf | 1 |
Standard Accessory | Test hole, shelf, air pressure balance hole, USB |
Optional Accessory | Chart temperature recorder, freezer rack and freezer box, liquid nitrogen backup system |
Internal Size(W*D*H) | 320*450*610mm |
External Size(W*D*H) | 795*680*815mm |
Package Size(W*D*H) | 850*740*953mm |
Net Weight | 92kg |
Gross Weight | 107kg |

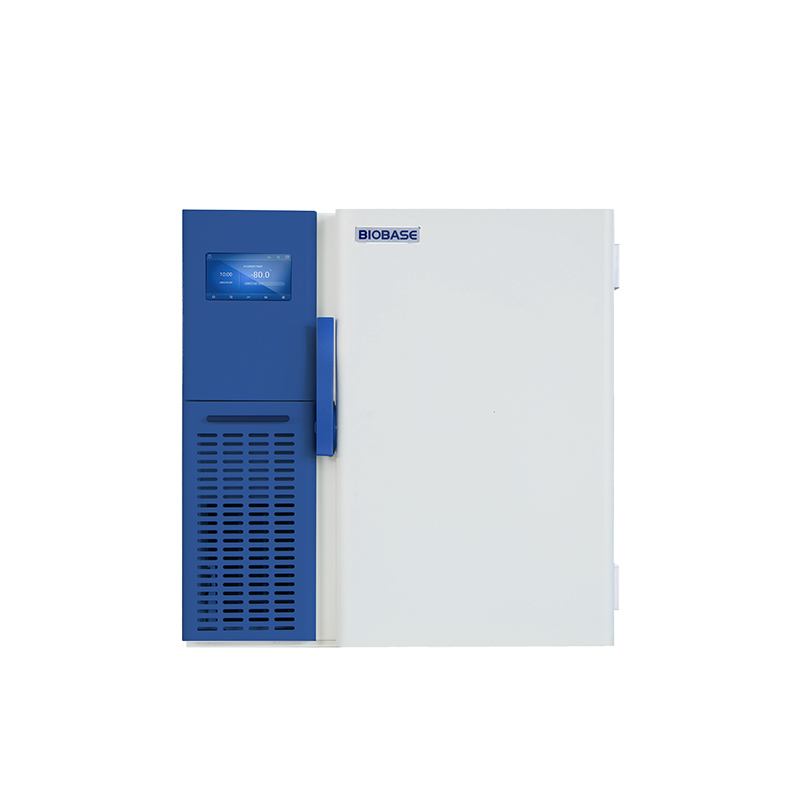

-86℃ Freezer(Undercounter Type) 90L — professional solution in the -86℃ Ultra-low Temperature Freezer category
-86℃ Freezer(Undercounter Type) 90L is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why -86℃ Freezer(Undercounter Type) 90L
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: -86℃ Freezer(Undercounter Type) 90L fits easily into existing process lines and IT infrastructure.
Areas of application -86℃ Ultra-low Temperature Freezer
-86℃ Ultra-low Temperature Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -86℃ Freezer(Undercounter Type) 90L allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with -86℃ Freezer(Undercounter Type) 90L you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add -86℃ Freezer(Undercounter Type) 90L to the cart or contact our manager. We will help integrate -86℃ Ultra-low Temperature Freezer into existing processes without downtime and unnecessary costs.
