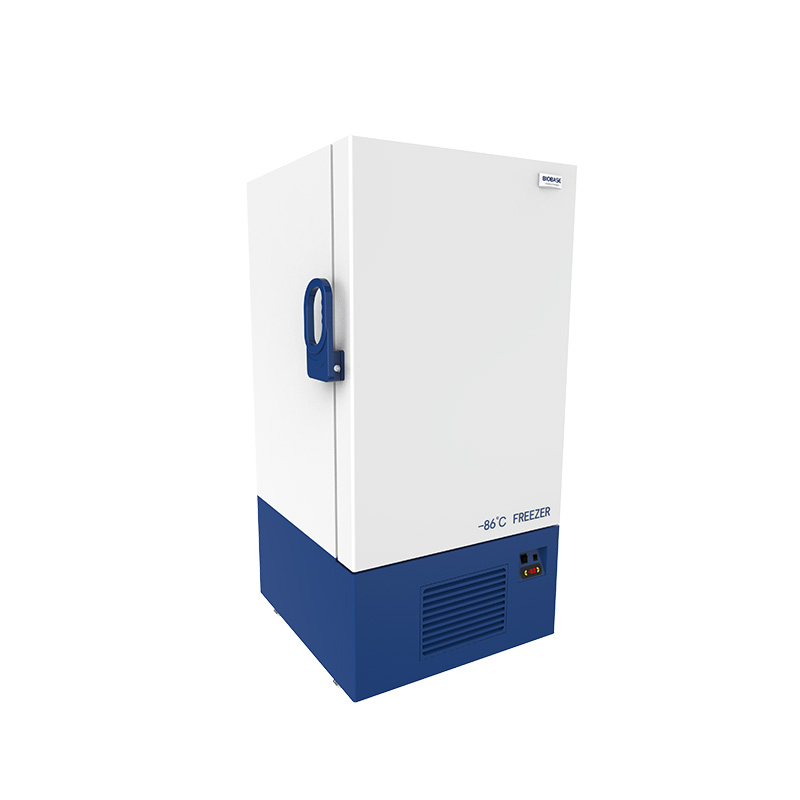

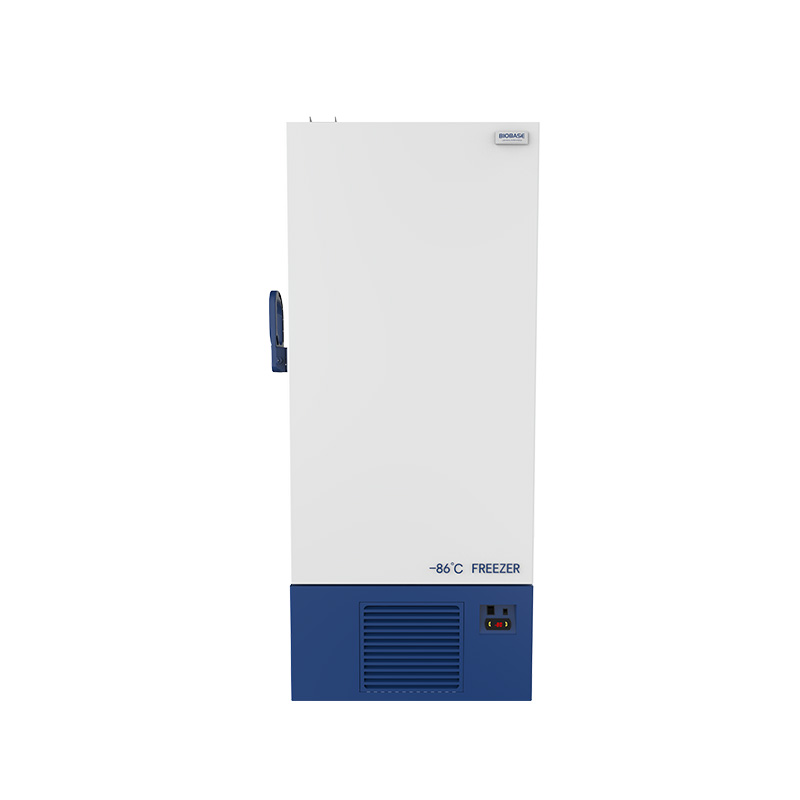

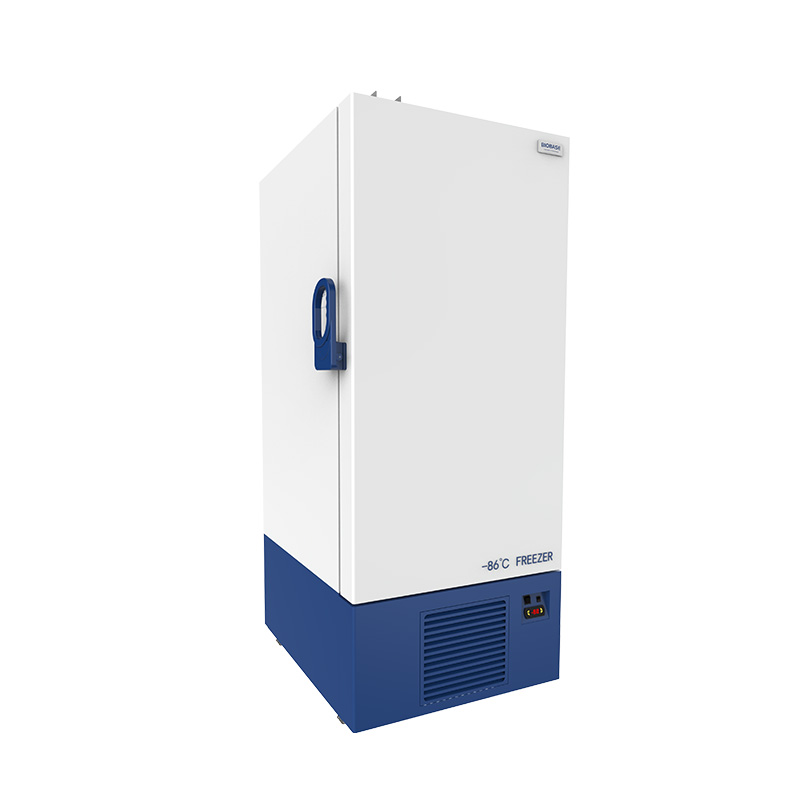

-86℃ Freezer BDF-86V168 BDF-86V348

Technical Parameters:

Model		BDF-86V168			BDF-86V348
Capacity		168L			348L
Temp. Range		-40~-86℃
Temp. Accuracy		0.1℃
Temp. Uniformity		±4℃
Temp. Stability		≤6℃
Recovery Time(Recover to -75℃ in an ambient temp. of 25℃)		≤15min
Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃)		≤4h
Control System		Microprocessor control
Display		LED
Alarm		High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type		Direct-cooling
Refrigerant		R600a/R1150/R14, 137g	R600a/R1150/R14, 193g
Compressor		International famous brand compressor/1
Condenser&Evaporator		Micro channel condenser; built-in coil type, copper pipe		Built-in coil type copper pipe; copper tube and aluminum fin
Defrost		Manual defrost
Construction		Polyurethane cyclopentane foam
Material	Internal Material	SUS304 stainless steel
	External Material	Sprayed steel plate
Door		Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3			Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2
Consumption		650W Apparent power: 858VA
Power Supply		AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer)
Casters		Yes
Shelf		2			3
Standard Accessory		Test port*2
Optional Accessory		RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder
Internal Size(W*D*H)		465*455*820mm			490*612*1150mm
External Size(W*D*H)		844*807*1594mm			869*989*1924mm
Package Size(W*D*H)		1000*970*1790mm			929*1049*2150mm
Net Weight		168kg			232kg
Gross Weight		221kg			300kg

-86℃ Freezer BDF-86V168 BDF-86V348 — professional solution in the -86℃ Ultra-low Temperature Freezer category

-86℃ Freezer BDF-86V168 BDF-86V348 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why -86℃ Freezer BDF-86V168 BDF-86V348

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: -86℃ Freezer BDF-86V168 BDF-86V348 fits easily into existing process lines and IT infrastructure.

Areas of application -86℃ Ultra-low Temperature Freezer

-86℃ Ultra-low Temperature Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -86℃ Freezer BDF-86V168 BDF-86V348 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with -86℃ Freezer BDF-86V168 BDF-86V348 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
