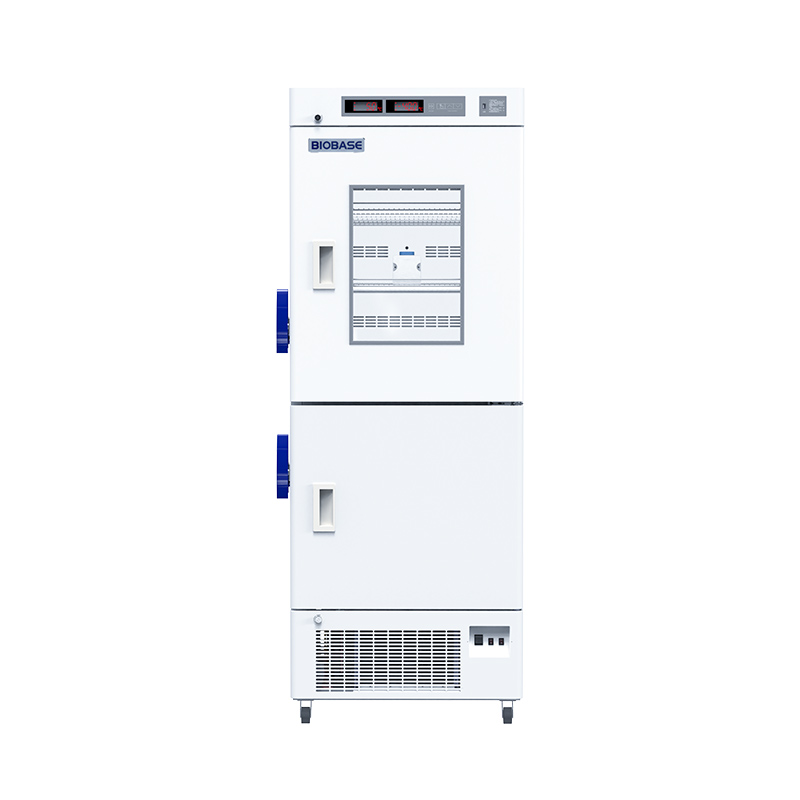

-40℃ Freezer BRF-40V318 BRF-40V368 BRF-40V450

Technical Parameters:

Model		BRF-40V318	BRF-40V368	BRF-40V450
Capacity	Refrigerator	208L	183L	295L
	Freezer	110L	185L	155L
Temp. Range	Refrigerator	2~8℃
	Freezer	-10~-40℃
Temp. Accuracy		0.1℃
Temp. Uniformity	Refrigerator	≤2℃
	Freezer	≤4℃
Temp. Stability	Refrigerator	≤3℃
	Freezer	≤4℃
Recovery Time	Refrigerator	≤15min(Recover to 8℃ in an ambient temp. of 32℃)
	Freezer	≤30min(Recover to -37℃ in an ambient temp. of 25℃)
Cooling Time	Refrigerator	≤80min(Cool down to 6℃ in an ambient temp. of 32℃)
	Freezer	≤3h(Recover to -40℃ in an ambient temp. of 25℃)
Control System		Microprocessor control
Alarm		High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)
Refrigeration Type	Refrigerator	Air-cooling
	Freezer	Direct-cooling
Refrigerant	Refrigerator	R290/39g	R290/25g	R290/50g
	Freezer	R290/46g	R290/60g	R290/54g
Compressor		International famous brand compressor/2
Condenser&Evaporator	Refrigerator	Wire-on-tube Bundy tube condenser; copper tube and aluminum fin evaporator	Wire-on-tube Bundy tube condenser; Bundy tube evaporator	Wire-on-tube Bundy tube condenser; copper tube aluminum fin evaporator
	Freezer	Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Defrost	Refrigerator	Automatic defrost
	Freezer	Manual defrost
Construction		Polyurethane cyclopentane foam
Material	Internal Material	304 stainless steel
	External Material	Sprayed steel plate
Door		Outer door: cyclopentane monolithic foam door*2 Interior door: cyclopentane monolithic foam freezer door*2	Outer door: cyclopentane monolithic foam door*2 Interior door: cold plate spray door*2	Outer door: cyclopentane monolithic foam door*2 Interior door: cyclopentane monolithic foam freezer door*2
Consumption		460W	627W	570W
Power Supply		AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer)		AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
Casters		Yes
Shelf	Refrigerator	3
	Freezer	1
Standard Accessory		Test hole*2, USB interface
Optional Accessory		Temperature recorder, RS485 interface
Internal Size(W*D*H)	Refrigerator	590*495*746mm	580*575*563mm	590*675*746mm
	Freezer	520*467*460mm		520*647*460mm
External Size(W*D*H)		741*631*1889mm	750*736*1884mm	741*811*1889mm
Package Size(W*D*H)		880*770*2090mm	890*880*2100mm	880*950*2090mm
Net Weight		132kg	153kg	147kg
Gross Weight		178kg	169kg	200kg

-40℃ Freezer BRF-40V318 BRF-40V368 BRF-40V450 — professional solution in the -40℃ Freezer category

-40℃ Freezer BRF-40V318 BRF-40V368 BRF-40V450 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why -40℃ Freezer BRF-40V318 BRF-40V368 BRF-40V450

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: -40℃ Freezer BRF-40V318 BRF-40V368 BRF-40V450 fits easily into existing process lines and IT infrastructure.

Areas of application -40℃ Freezer

-40℃ Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -40℃ Freezer BRF-40V318 BRF-40V368 BRF-40V450 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with -40℃ Freezer BRF-40V318 BRF-40V368 BRF-40V450 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
