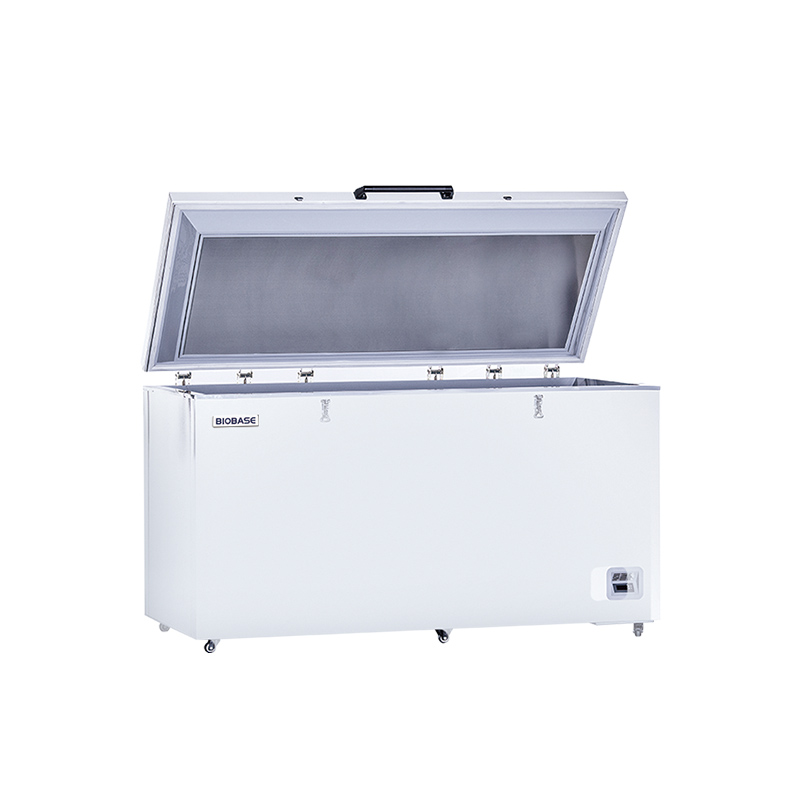

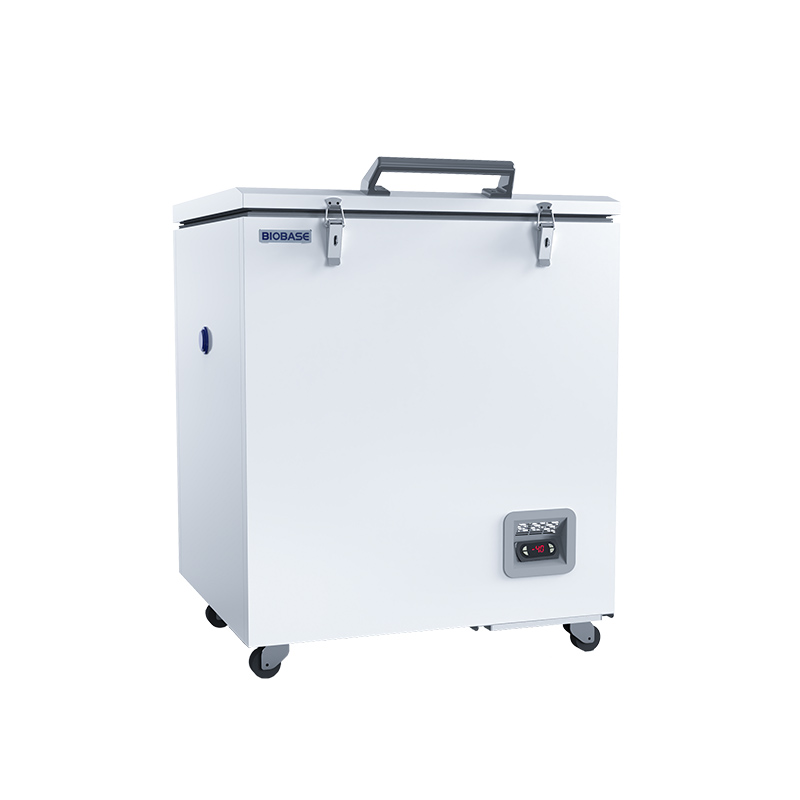

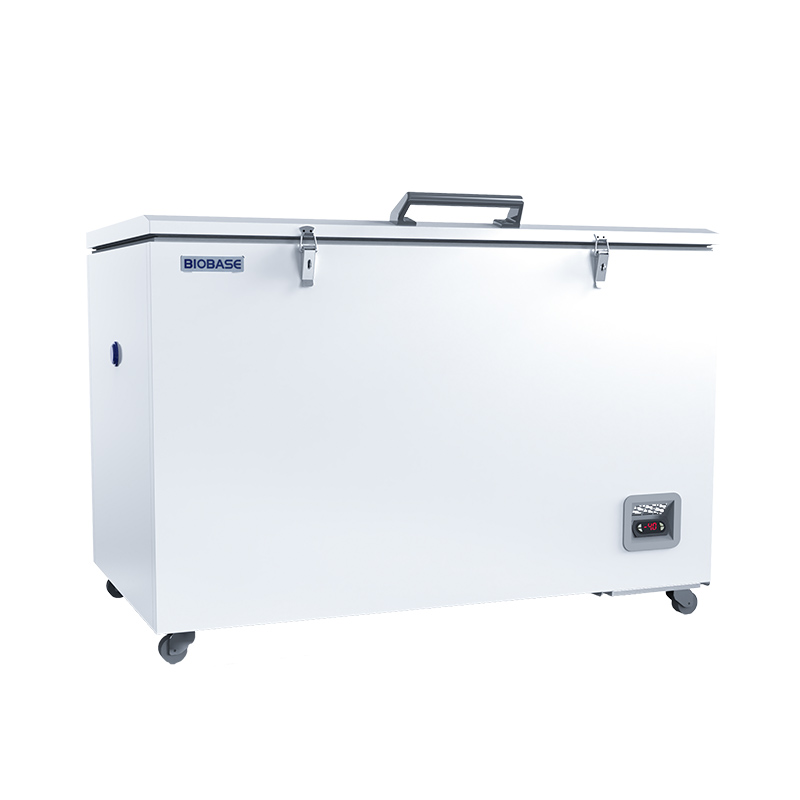

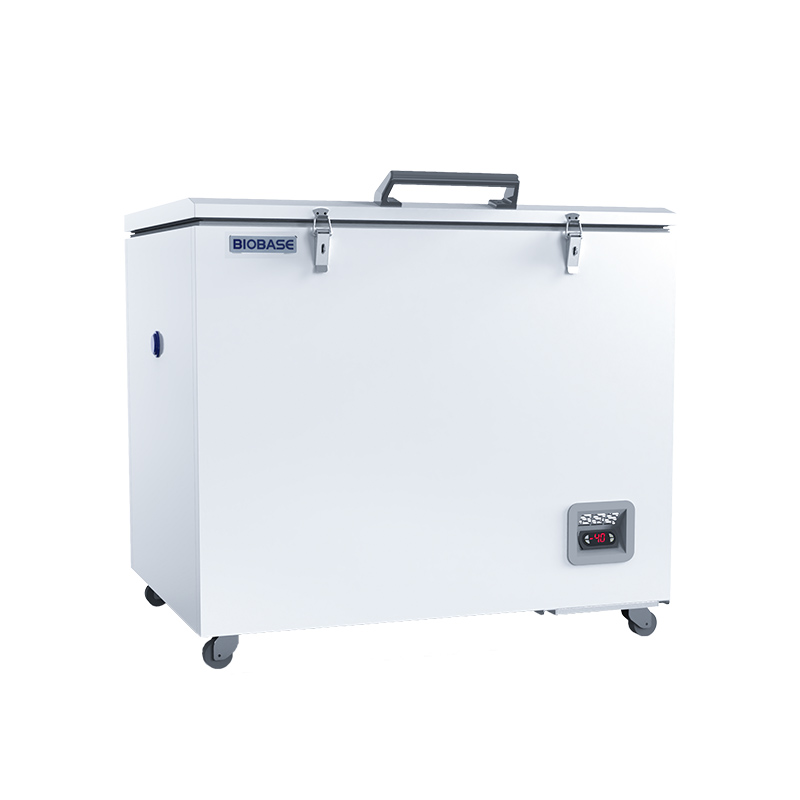

-40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485

Technical Parameters:

Model		BDF-40H110	BDF-40H210	BDF-40H310	BDF-40H485
Capacity		110L	210L	308L	485L
Temp. Range		-15~-40℃			-20~-40℃
Temp. Accuracy		0.1℃
Temp. Uniformity		≤3℃
Temp. Stability		≤3℃
Recovery Time(Recover to -37℃ in an ambient temp. of 25℃)		≤5min
Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃)		≤150min			≤195min
Control System		Microprocessor control
Display		LED display
Alarm		High and low temperature alarm, thermostat fault alarm, power failure alarm(48h)			High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(48h)
Refrigeration Type		Direct-cooling
Refrigerant		R290/55g	R290/60g	R290/70g
Compressor		International famous brand compressor /1
Condenser&Evaporator		Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Defrost		Manual defrost
Construction		Polyurethane cyclopentane foam
Material	Internal Material	304 stainless steel
	External Material	Sprayed steel plate
Door		Outer door: cyclopentane integral foam outer door*1 Inner door: /
Consumption		270W	280W	290W	300W
Power Supply		AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional, external transformer)			AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Casters		Yes
Shelf		/
Standard Accessory		Test hole
Optional Accessory		Temperature recorder, RS485 interface, USB interface			Temperature recorder
Internal Size(W*D*H)		520*460*600mm	760*540*600mm	1038*540*600mm	1455*525*665mm
External Size(W*D*H)		705*705*885mm	945*785*885mm	1225*790*885mm	1667*863*949mm
Package Size(W*D*H)		805*800*1015mm	1045*880*1015mm	1325*885*1015mm	1775*900*1050mm
Net Weight		58kg	68kg	76kg	124kg
Gross Weight		73kg	88kg	101kg	138kg

-40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485 — professional solution in the -40℃ Freezer category

-40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485 is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.

Why -40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485

• Reliability and durability: industrial-grade design and materials withstand intense loads.
• Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
• Process efficiency: optimizing staff time and increasing productivity at every stage.
• Compliance with standards: manufactured taking into account current international requirements for the business segment.
• Ease of integration: -40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485 fits easily into existing process lines and IT infrastructure.

Areas of application -40℃ Freezer

-40℃ Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485 allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.

Key benefits for business

Technical highlights

• Industrial reliability of components and assemblies for long-term trouble-free operation.
• Stable parameters that ensure repeatability of results and product quality.
• Energy efficiency and optimized life cycle cost of ownership.
• Compatibility with related equipment and standard data exchange protocols.

Service and support

Together with -40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485 you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
