Technical Parameters:
Model | BRF-25V300 | BRF-25V318 | BRF-25V368 | BRF-25V450 |
Capacity | Refrigerator | 174L | 208L | 183L | 295L |
Freezer | 126L | 110L | 185L | 155L |
Temp. Range | Refrigerator | 2~8℃ |
Freezer | -10~-25℃ |
Temp. Accuracy | 0.1℃ |
Temp. Uniformity | Refrigerator | ≤2℃ |
Freezer | ≤3℃ |
Temp. Stability | ≤3℃ |
Recovery Time | Refrigerator | ≤15min(Recover to 8℃ in an ambient temp. of 32℃) |
Freezer | ≤15min(Recover to -22℃ in an ambient temp. of 25℃) |
Cooling Time | Refrigerator | ≤80min(Cool down to 6℃ in an ambient temp. of 32℃) |
Freezer | ≤1.5h(Recover to -25℃ in an ambient temp. of 25℃) |
Control System | Microprocessor control |
Display | LED |
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(24h) | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) |
Refrigeration Type | Refrigerator | Air-cooling |
Freezer | Direct-cooling |
Refrigerant | Refrigerator | R600a/28g | R290/39g | R290/25g | R290/50g |
Freezer | R600a/48g | R290/55g | R290/40g | R290/57g |
Compressor | International famous brand compressor/2 |
Condenser&Evaporator | Refrigerator | Side-panel type Bundy tube condenser; wall-mounted/wire-on-tube Bundy tube evaporator | Wire-on-tube Bundy tube condenser; copper tube aluminum fin evaporator | Wire-on-tube Bundy tube condenser; Bundy tube evaporator | Wire-on-tube Bundy tube condenser; copper tube aluminum fin evaporator |
Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator |
Freezer |
Defrost | Refrigerator | Automatic defrost |
Freezer | Manual defrost |
Construction | Polyurethane cyclopentane foam |
Material | Internal Material | HIPS | 304 stainless steel |
External Material | Precoated steel plate | Sprayed steel plate |
Door | Outer door: cyclopentane monolithic foam door*2 Interior door: / | Outer door: cyclopentane monolithic foam door*2 Interior door: freezer door optional | Outer door: cyclopentane monolithic foam door*2 Interior door: / | Outer door: cyclopentane monolithic foam door*2 Interior door: freezer door optional |
Consumption | 160W | 390W | 594W | 410W |
Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
Casters | No(Optional) | Yes |
Shelf | Refrigerator | 3 |
Freezer | 3(PS drawer) | 1 |
Standard Accessory | Test hole*2, USB interface |
Optional Accessory | Temperature recorder, RS485 interface |
Internal Size(W*D*H) | Refrigerator | 510*480*720mm | 590*495*746mm | 580*575*563mm | 590*675*746mm |
Freezer | 420*450*670mm | 520*467*460mm | 520*647*460mm |
External Size(W*D*H) | 595*600*1700mm | 741*631*1889mm | 750*736*1884mm | 741*811*1889mm |
Package Size(W*D*H) | 630*645*1740mm | 880*770*2090mm | 890*880*2100mm | 880*950*2090mm |
Net Weight | 69kg | 129kg | 153kg | 144kg |
Gross Weight | 75kg | 175kg | 168kg | 197kg |

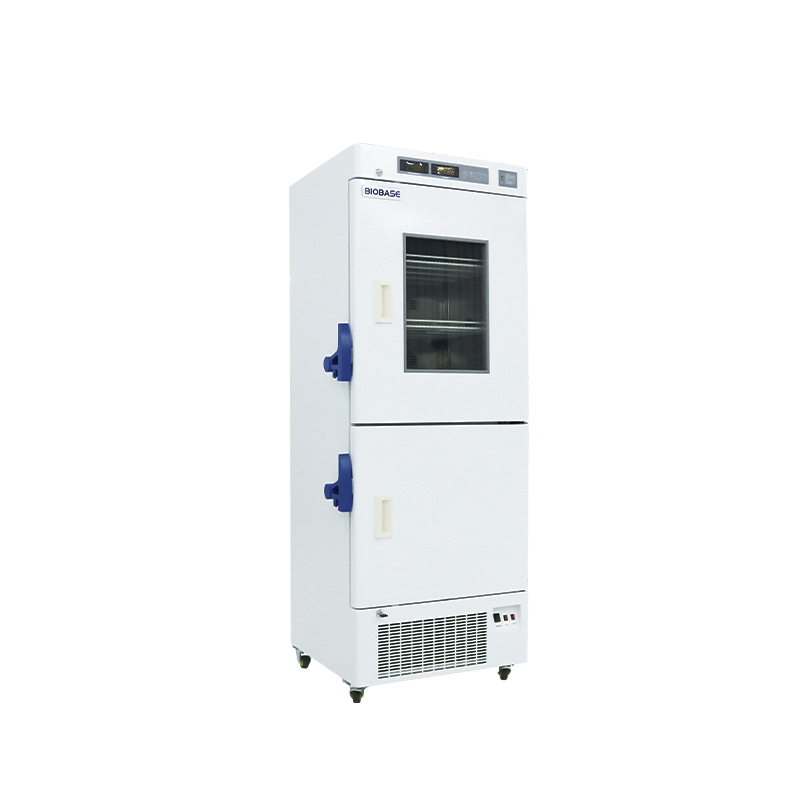

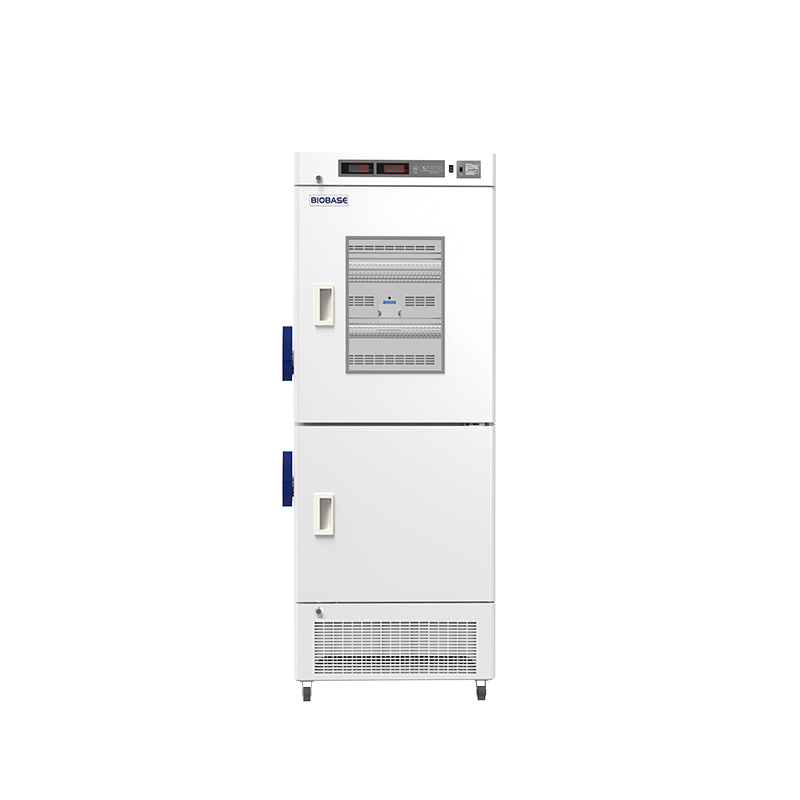

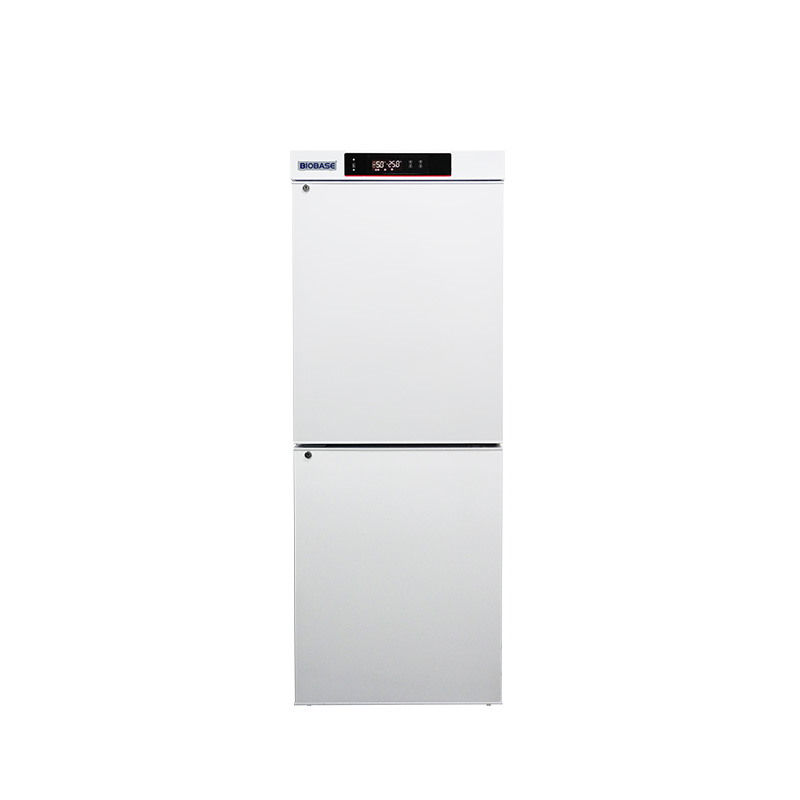

-25℃ Freezer Combined Refrigerator and Freezer — professional solution in the -25℃ Freezer category
-25℃ Freezer Combined Refrigerator and Freezer is a modern business-class equipment designed for daily operation in demanding conditions. The combination of reliability, accuracy and durability makes this product the optimal choice for companies seeking consistent process quality, predictable results and reduced operating costs. The purchase price is a reasonable investment in the development and scaling of the enterprise.
Why -25℃ Freezer Combined Refrigerator and Freezer
- Reliability and durability: industrial-grade design and materials withstand intense loads.
- Accuracy and repeatability: stable performance that reduces the risk of defects and downtime.
- Process efficiency: optimizing staff time and increasing productivity at every stage.
- Compliance with standards: manufactured taking into account current international requirements for the business segment.
- Ease of integration: -25℃ Freezer Combined Refrigerator and Freezer fits easily into existing process lines and IT infrastructure.
Areas of application -25℃ Freezer
-25℃ Freezer solutions are widely used in manufacturing, research laboratories, construction sites, energy and agricultural sectors, pharmaceutical and food industries. Implementing -25℃ Freezer Combined Refrigerator and Freezer allows you to increase productivity, ensure accuracy of operations and optimize resource utilization across the entire enterprise.
Key benefits for business
Return on investment
Reduced service costs and downtime, predictive budget planning, fast ROI thanks to stable operation.
Scalability
Readiness to expand capacity and integrate with other solutions without re-engineering processes.
Safety and quality control
Compliance with standards, which simplifies audits and increases the trust of customers and partners.
Technical highlights
- Industrial reliability of components and assemblies for long-term trouble-free operation.
- Stable parameters that ensure repeatability of results and product quality.
- Energy efficiency and optimized life cycle cost of ownership.
- Compatibility with related equipment and standard data exchange protocols.
Service and support
Together with -25℃ Freezer Combined Refrigerator and Freezer you receive professional advice on selection, commissioning and personnel training. We provide warranty and post-warranty service, prompt delivery of consumables and spare parts. Our team supports projects from the procurement stage to the stable operation of the complex so that your business receives the expected result every day.
To select a package for your needs or to receive a commercial offer, add -25℃ Freezer Combined Refrigerator and Freezer to the cart or contact our manager. We will help integrate -25℃ Freezer into existing processes without downtime and unnecessary costs.
